40

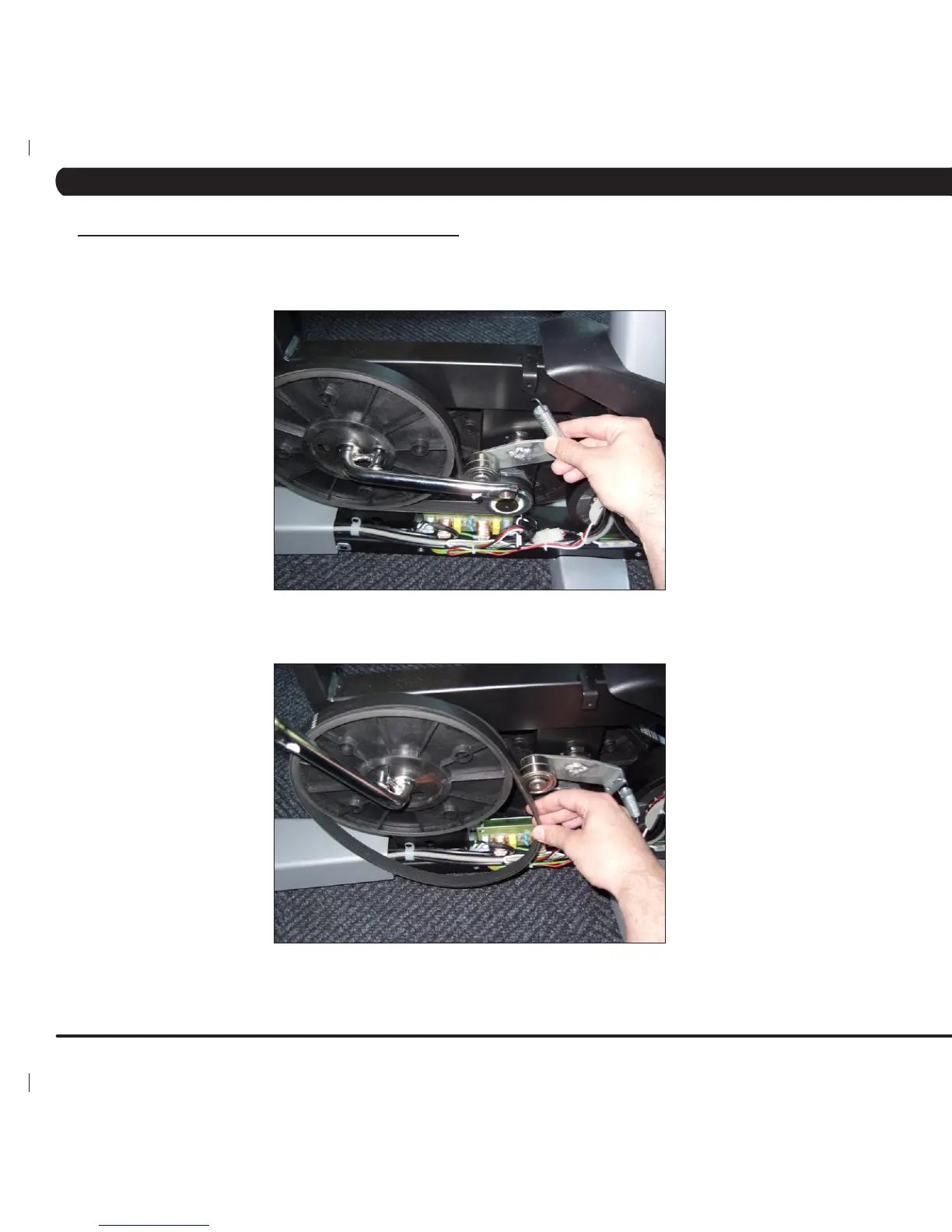

8.14 DRIVE BELT REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE
1) Remove the right side front shroud as outlined in Section 8.12.
2) Unattach the tension set spring from the frame (Figure A).
3) Rotate the tension set counter clockwise and remove the drive belt (Figure B).
4) Reverse Steps 1-3 to install a new drive belt. NOTE: Be sure to reattach the tension spring. If more tension is needed on the drive belt,
multiple holes are available for the lower spring attachment.
5) Test the bike for function as outlined in Section 8.21.
FIGURE A
FIGURE B
