Matrix h5x-02 User Manual

39
1) Remove the rear shrouds as outlined in Section 8.11.
2) Disconnect the wire connections to the lower board (Figure A).
3) Remove the 2 screws holding the lower board to the frame (Figure B), and remove the lower board.
4) Reverse Steps 1-3 to install a new lower board.
5) Test the bike for function as outlined in Section 8.21.
8.13 LOWER CONTROL BOARD REPLACEMENT
CHAPTER 8: PART REPLACEMENT GUIDE

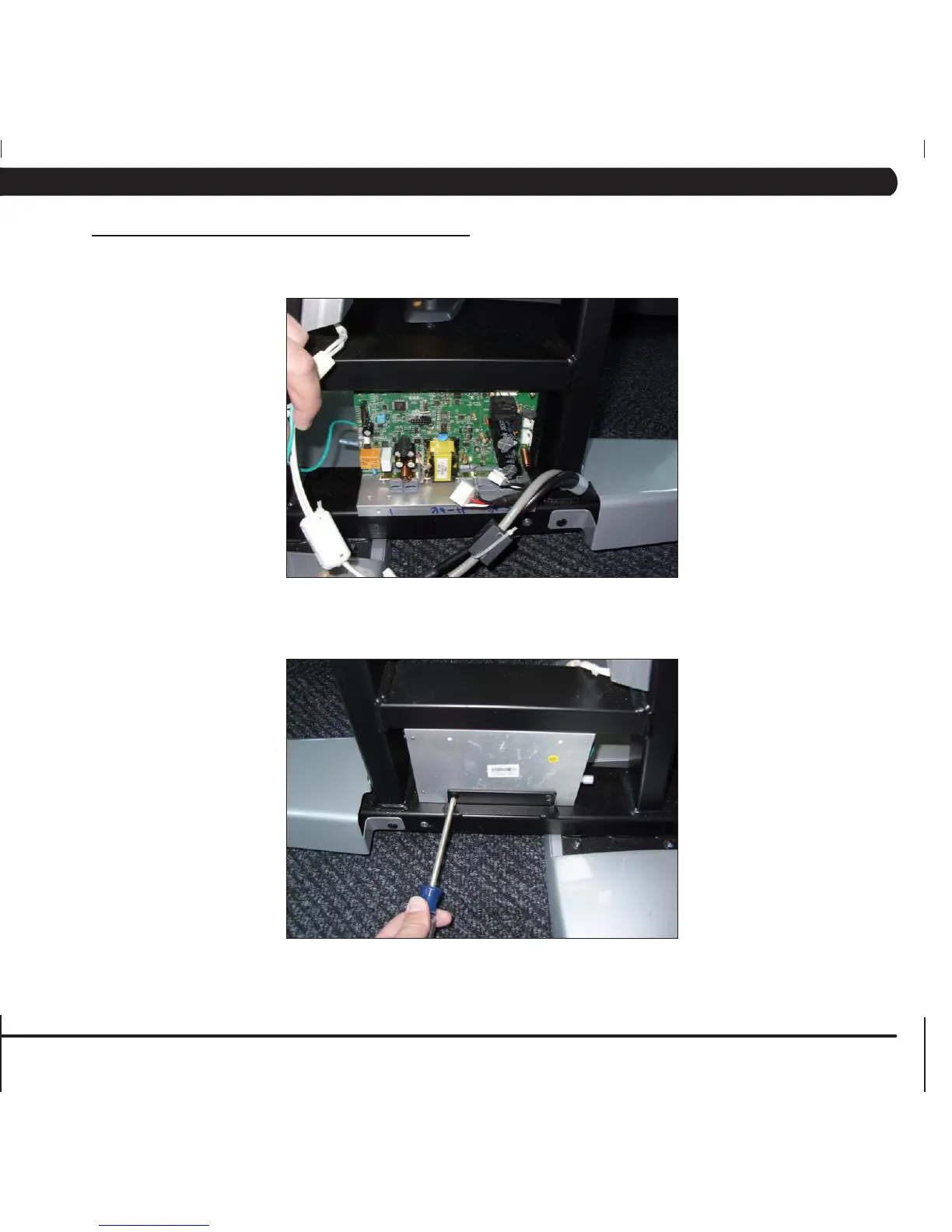

FIGURE A
FIGURE B
