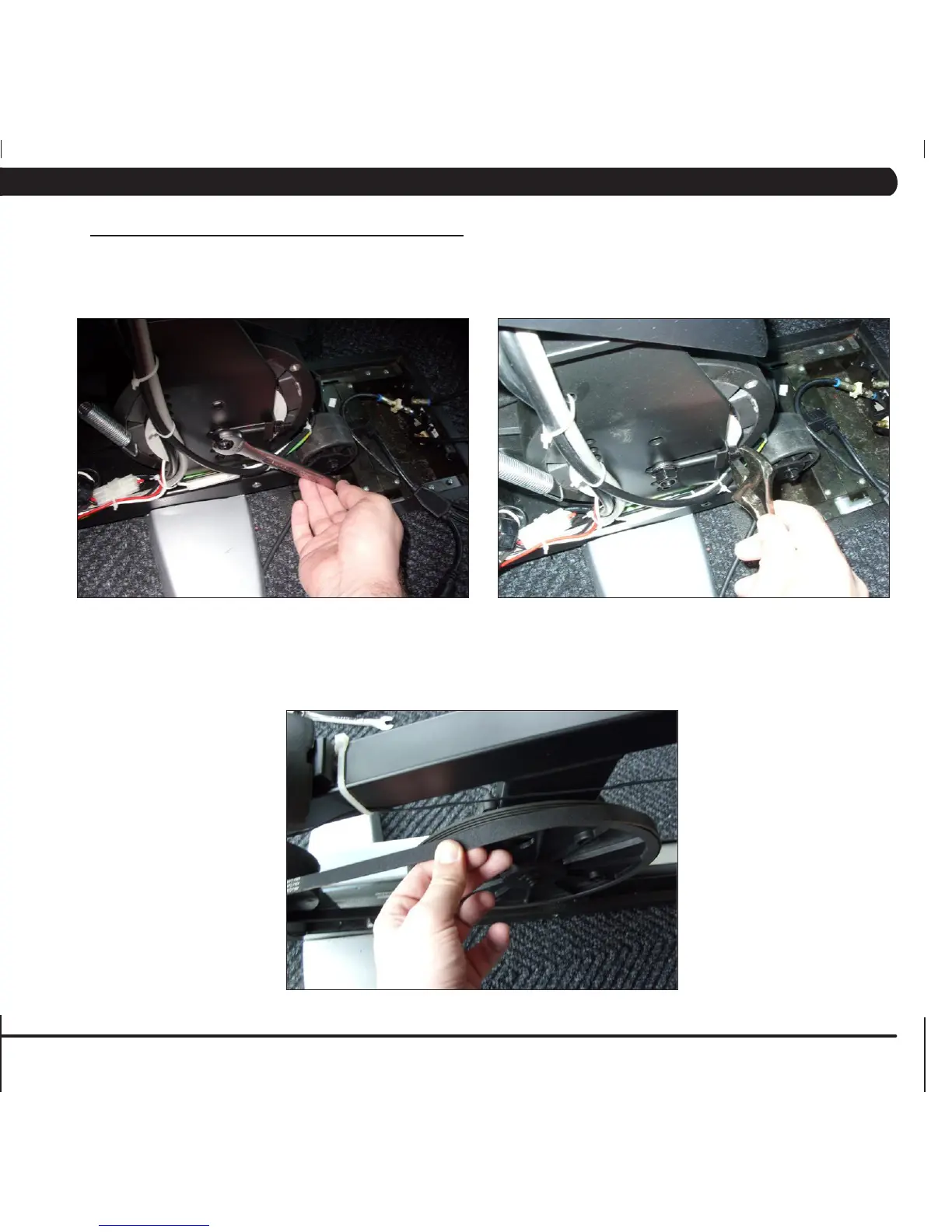

8.17 PULLEY AXLE SET REPLACEMENT
1) Remove the front shrouds as outlined in Section 8.12.
2) Remove the drive belt as outlined in Section 8.14.
3) Loosen the nuts holding the ECB to the frame (Figure A), and remove the nuts putting tension on the ECB belt (Figure B).
4) Once the tension has been removed, walk the ECB belt off of the pulley (Figure C).
FIGURE A FIGURE B
FIGURE C
CHAPTER 8: PART REPLACEMENT GUIDE
