Matrix R5X-05 User Manual

36
9.6 BACK PAD REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE

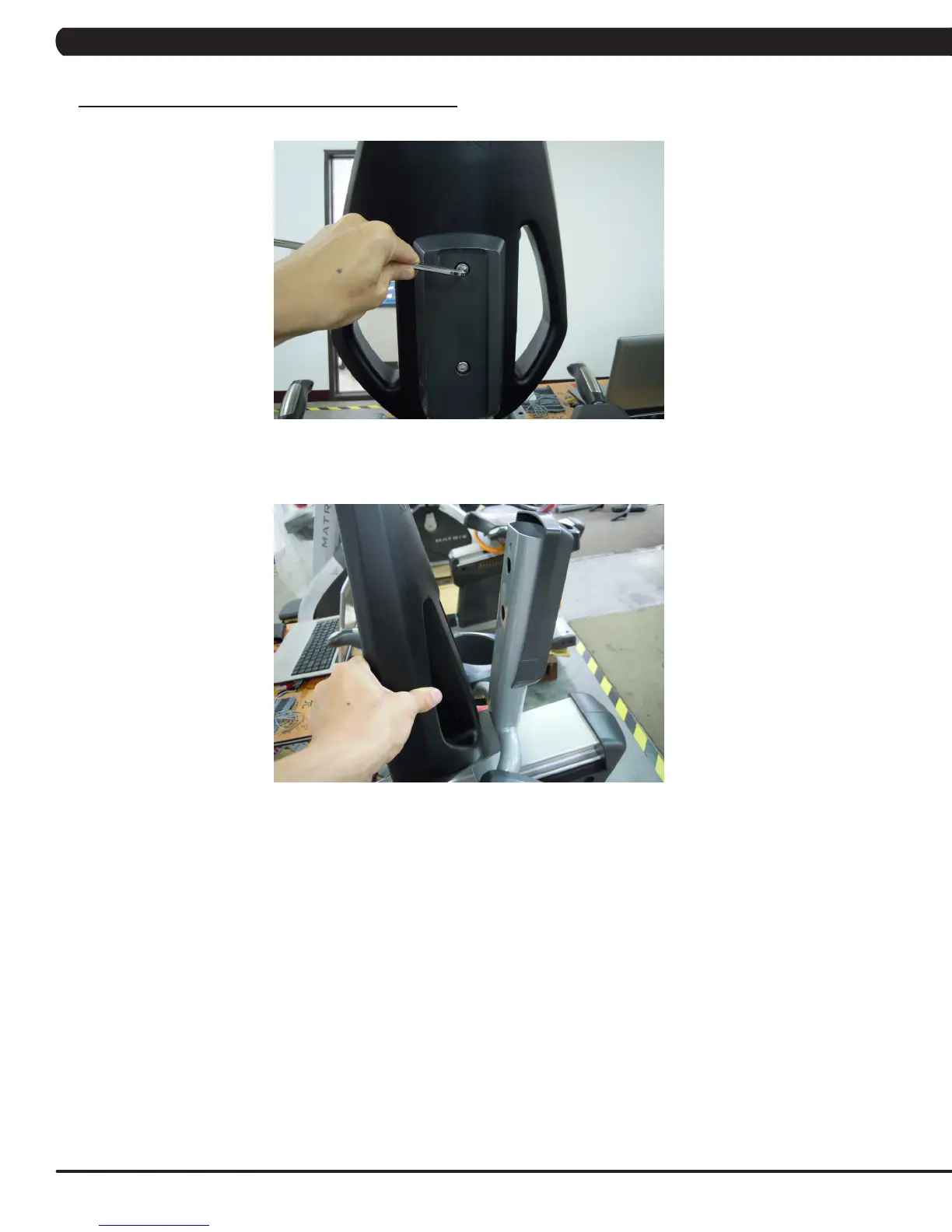

1) Remove the 2 bolts holding the back pad to the seat frame (Figure A).
2) Remove the back pad (Figure B).
3) Reverse Steps 1-2 to install a new back pad.
FIGURE A
FIGURE B
