Matrix R5X-05 User Manual

39
9.9 SEAT SLIDE SET REPLACEMENT
1) Remove the seat set as outlined in Section 9.8.
2) Remove the 2 screws holding the end cap over to the guide rail set (Figure A).
3) Remove the end cap cover (Figure B).
4) Remove the 2 screws holding the adjust plate to the adjustable plate (Figure C).
5) Remove the adjust plate (Figure D).

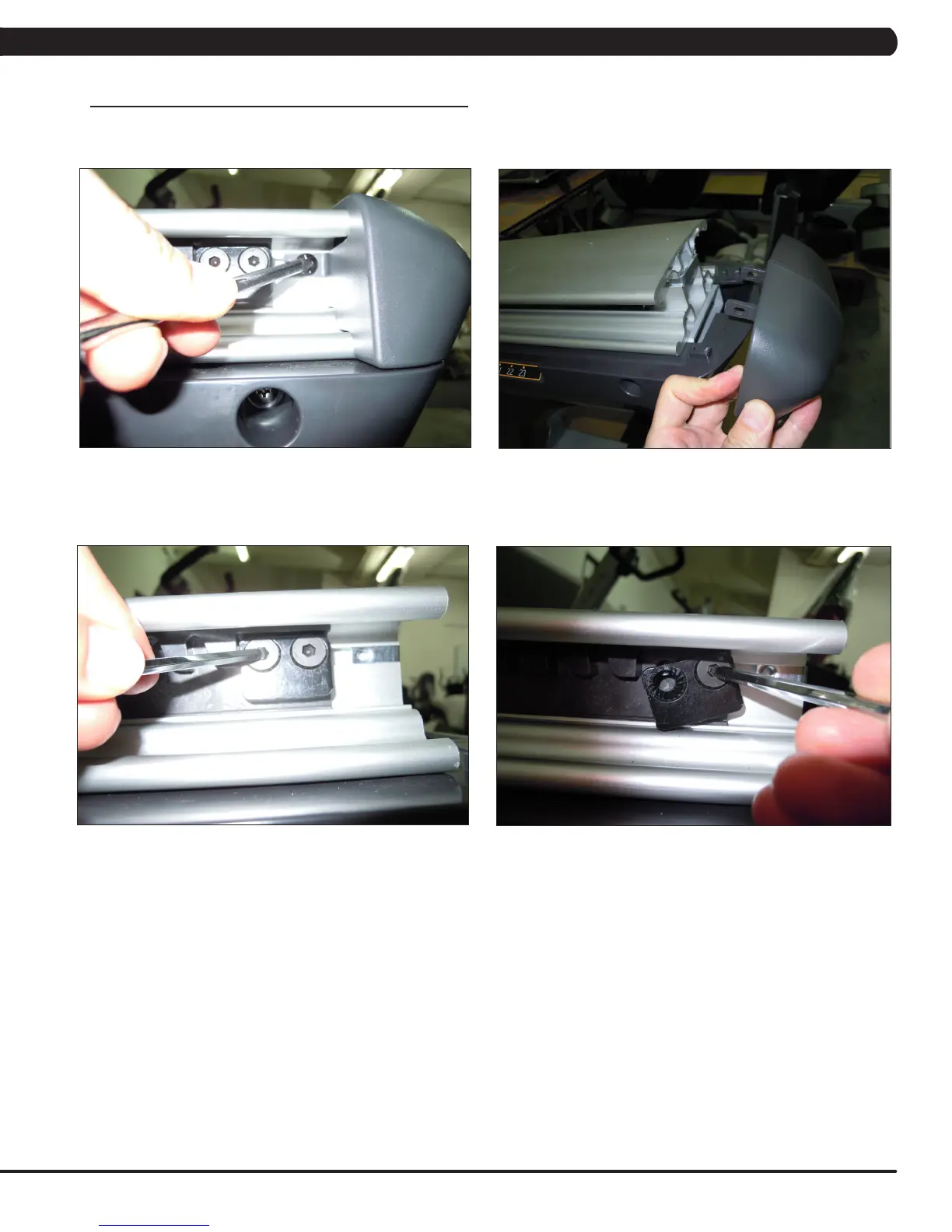

FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE C
FIGURE D
