Matrix R5X-05 User Manual

42

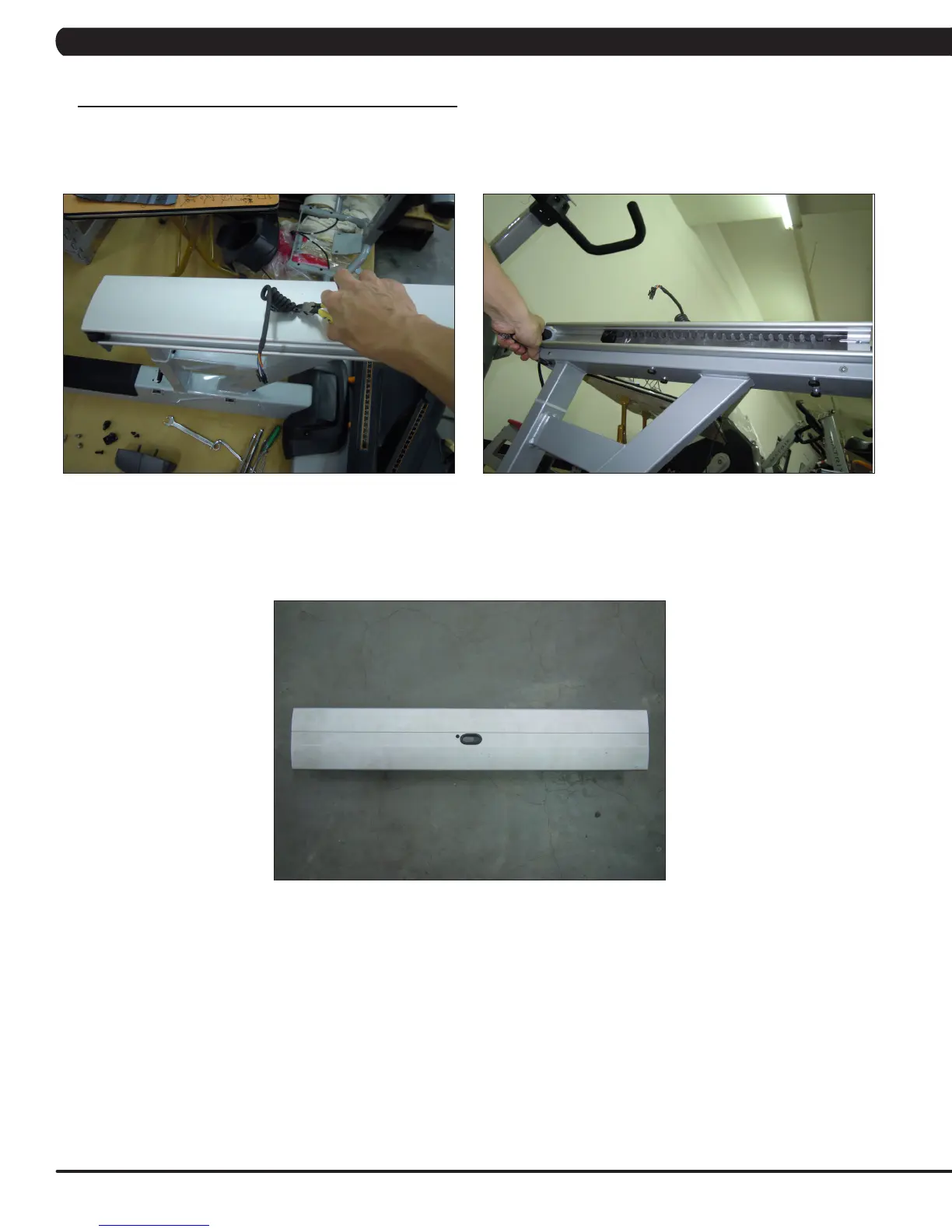

9.11 GUIDE RAIL SET REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the seat slide set. as outlined in Section 9.9.
2) Remove the rear covers as outlined in Section 9.10.
3) Cut the cable tie and disconnect the HR wire from guide rail set (Figure A).
4) Use a 13 mm wrench to remove the 6 screws holding the guide rail set to the frame (Figure B)
5) Pull the HR wires out of the guide rail set and remove the guide rail set (Figure C).
6) Reverse Steps 1-5 to install a new guide rail set. NOTE: When installing a new guide rail set, be sure to pull the HR wire up through the
new guide rail prior to installing the 6 screws into the frame.
7) Test the bike for function as outlined in Section 9.24.
FIGURE C
FIGURE A
FIGURE B
