9.18 BATTERY REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the right side pedal as outlined in Section 9.12.
2) Remove the right side crank as outlined in Section 9.13.
3) Remove the right side front cover as outlined in Section 9.15 (Figure A).
4) Disconnect the 2 wires from the battery (Figure B).
5) Disconnect the 2 cable ties from the battery bracket (Figure C).
6) Remove the battery (Figure D).
7) Reverse Steps 1-6 to install a new battery.

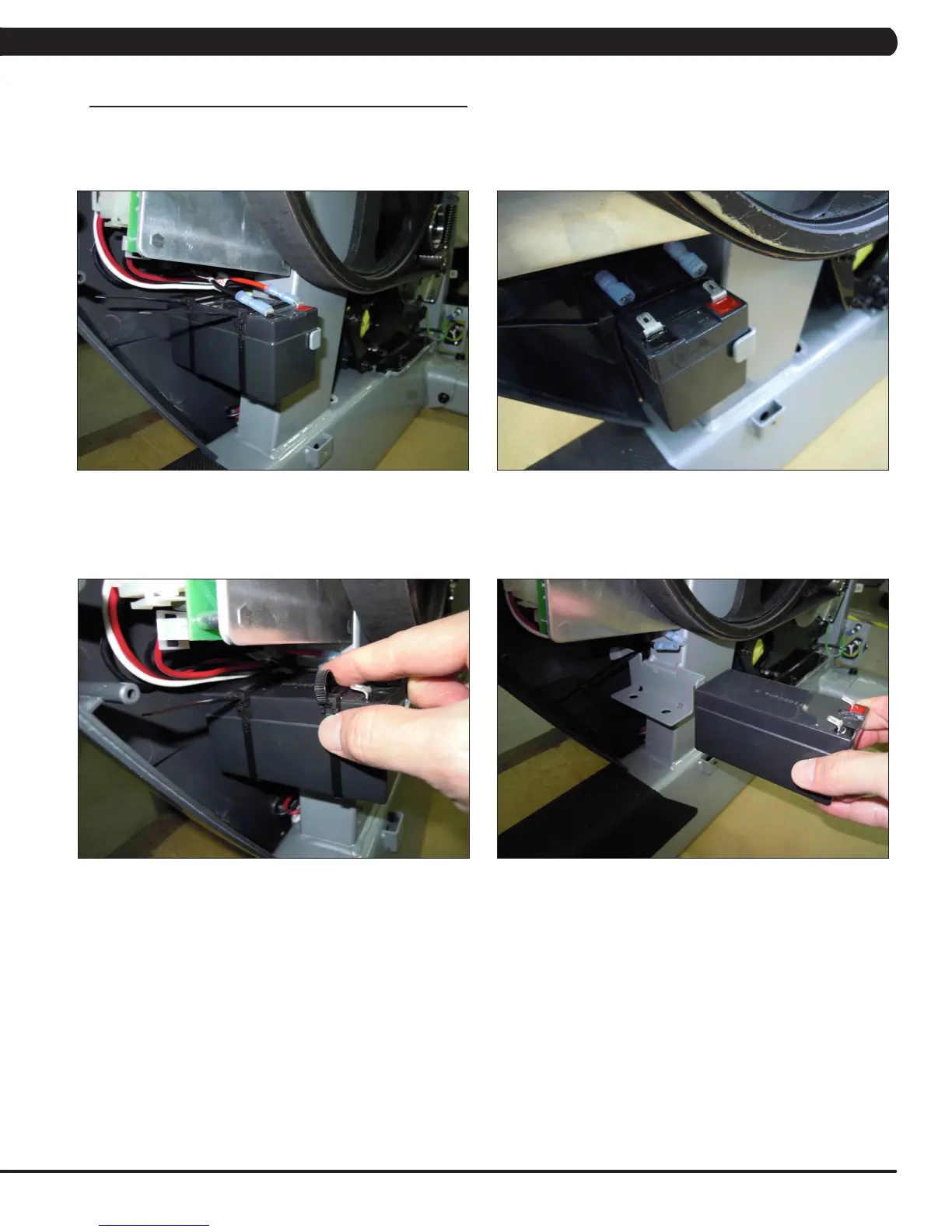

FIGURE A FIGURE B
FIGURE C FIGURE D
