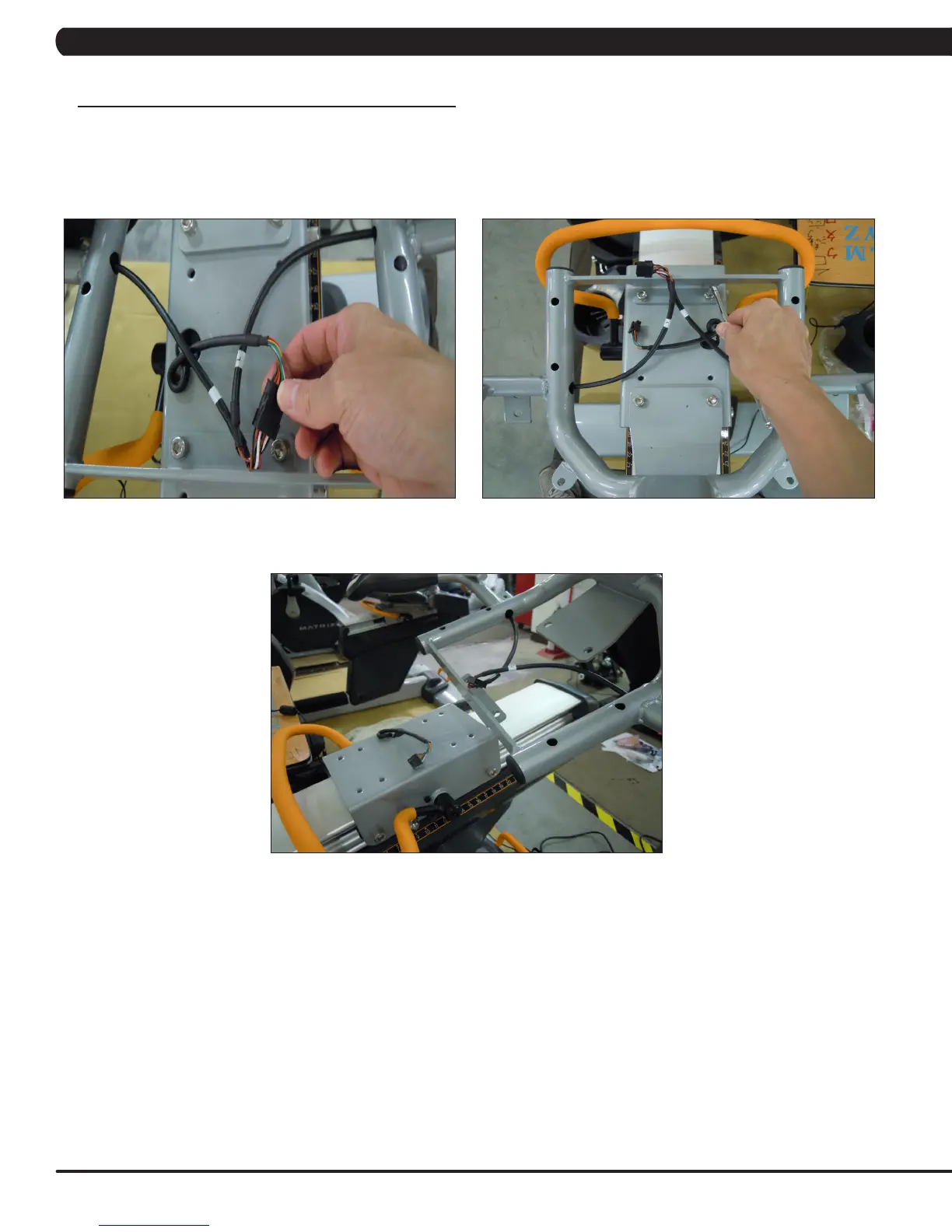

9.8 SEAT SET REPLACEMENT
1) Remove the cup holder as outlined in Section 9.3.
2) Remove the seat pad as outlined in Section 9.5.
3) Remove the back pad as outlined in Section 9.6.
4) Remove the HR grips as outlined in Section 9.7.
5) Disconnect the heart rate wiring (Figure A).
6) Remove the 4 screws holding the seat set to the seat slide set (Figure B).
7) Remove the upper seat set from the seat slide set (Figure C).
8) Reverse Steps 1-7 to install a new seat set.
9) Test the bike for function as outlined in Section 9.24.
FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
FIGURE C
