9.10 REAR COVERS REPLACEMENT

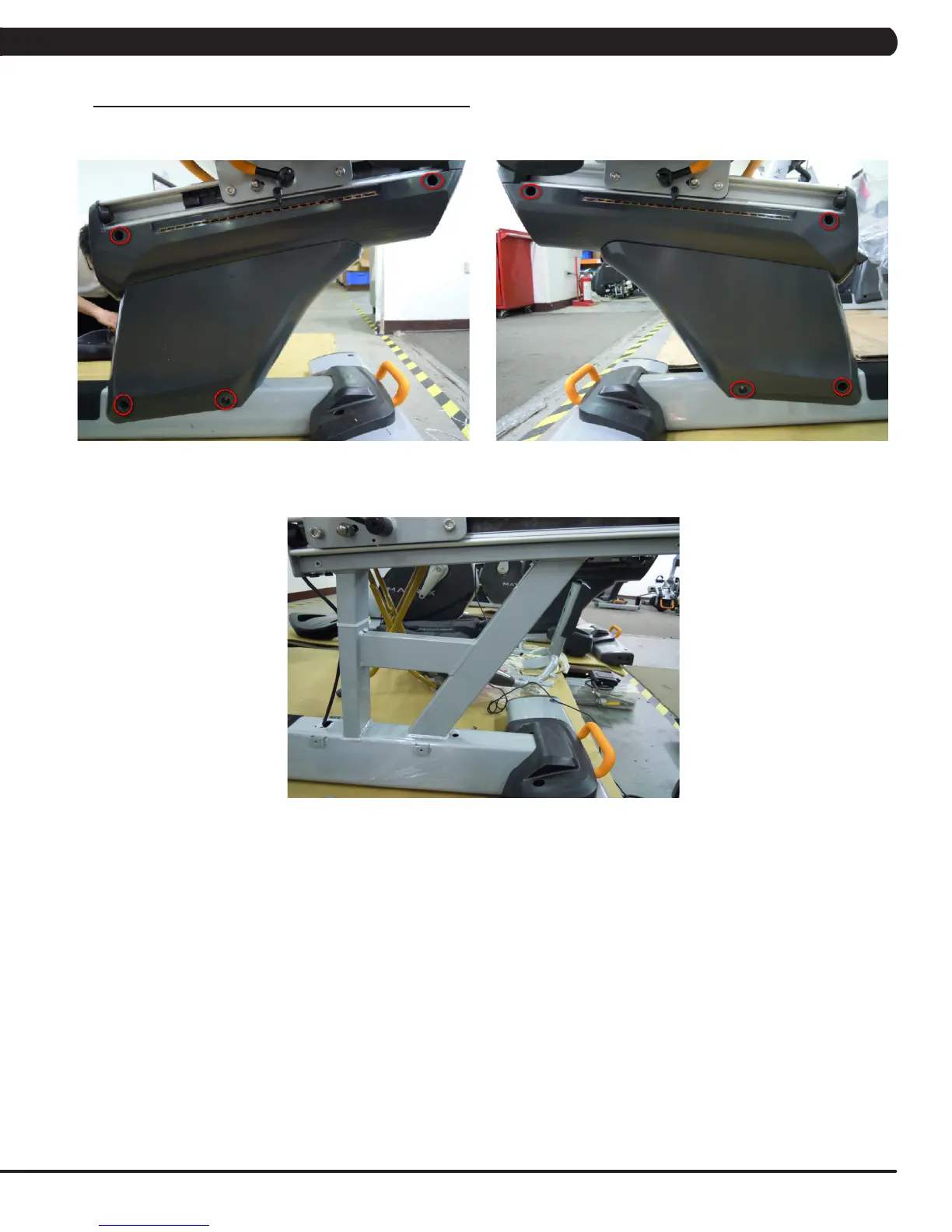

1) Remove the 4 screws holding the left side rear cover to the frame and remove it (Figure A).
2) Remove the 4 screws holding the right side rear cover to the frame and remove it (Figure B).
3) Figure C shows the bike with both rear side covers removed.
4) Reverse Steps 1-2 to install new rear side cover.
FIGURE A
FIGURE B
FIGURE C
