Matrix R5X-05 User Manual

60
10.2 ASSEMBLY INSTRUCTIONS

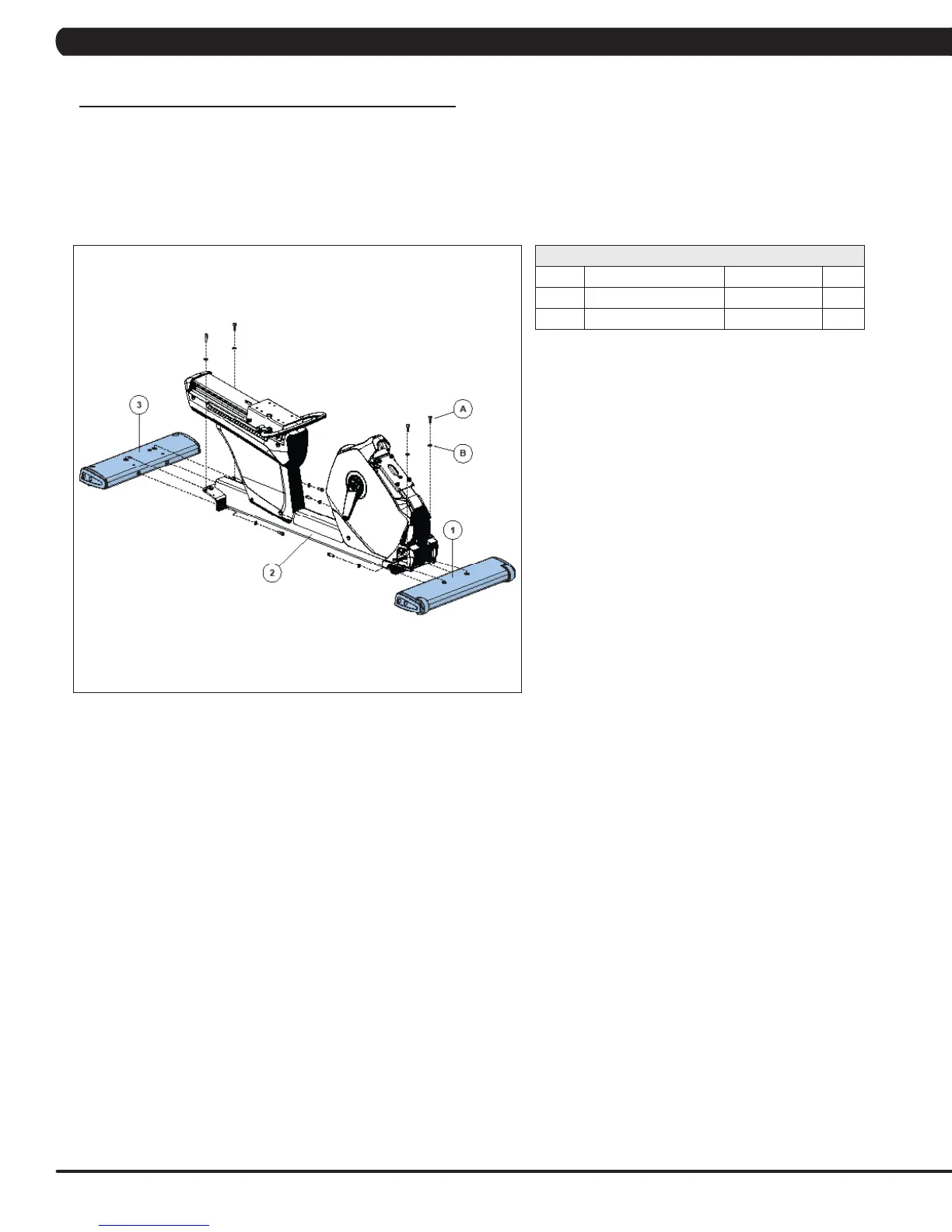

STEP 1
AFTER THESE ASSEMBLY STEPS ARE COMPLETE, BE SURE TO SETUP AND TEST THE UNIT AS OUTLINED
IN SECTION 9.24.
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
A Open YELLOW HARDWARE BAGS.
B Attach the FRONT STABILIZER TUBE
(1) to the MAIN FRAME (2) using 4
BOLTS (A) and 2 FLAT WASHERS (B).
C Attach the REAR STABILIZER TUBE (3)
to the MAIN FRAME (2) using 4 BOLTS
(A) and 2 FLAT WASHERS (B).
YELLOW HARDWARE BAGS
PART TYPE DESCRIPTION QTY
A SOCKET HEAD BOLT M8X25L 8
B FLAT WASHER Φ8.2XΦ16.0X2.0T 8
