Matrix R5X-05 User Manual

46
9.15 FRONT COVERS REPLACEMENT
1) Remove the pedals as outlined in Section 9.12.
2) Remove the crank as outlined in Section 9.13.
3) Remove the front shrouds as outlined in Section 9.14.

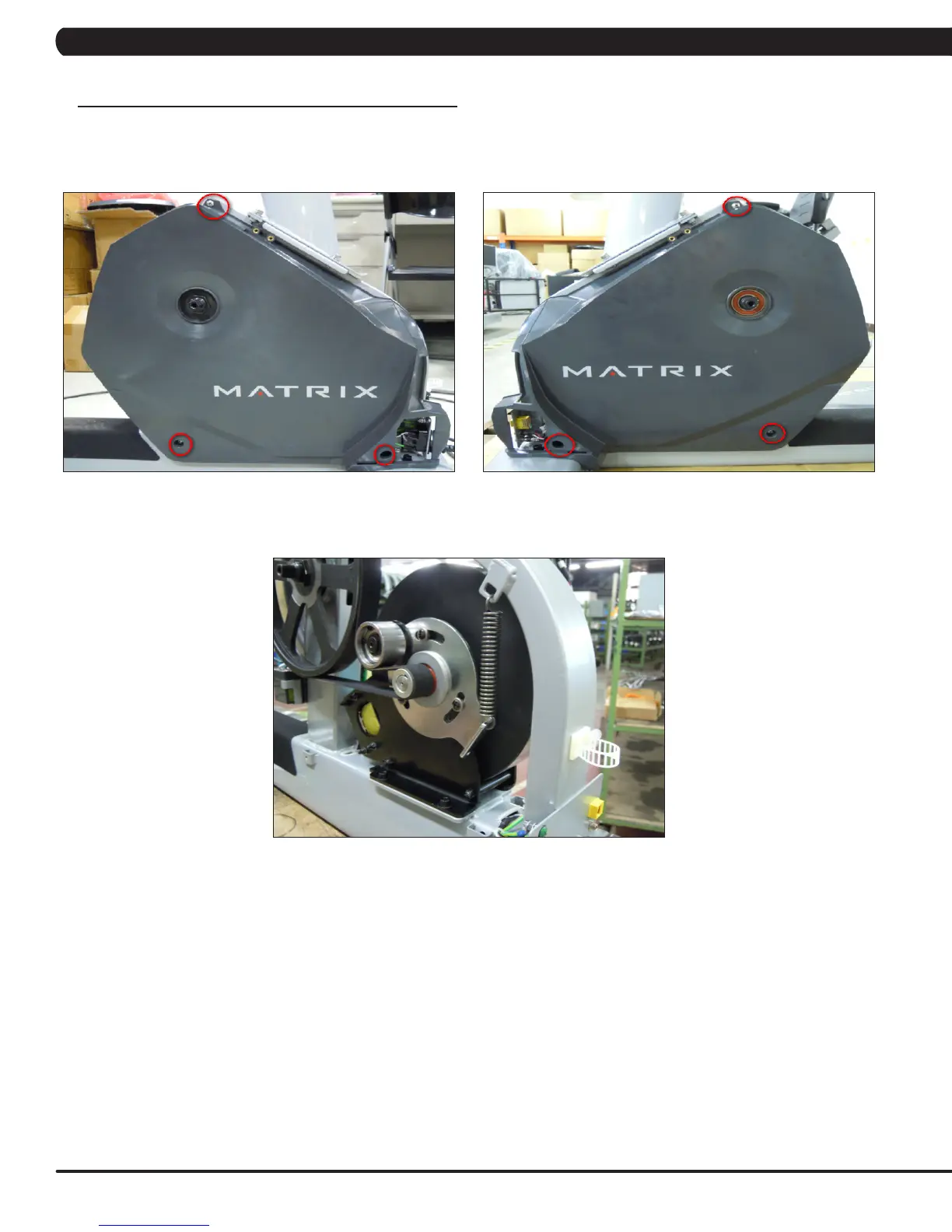

4) Remove the 6 screws to detach the front covers from the frame (Figures A & B).
5) Figure C shows both the front covers removed.
6) Reverse Steps 1-5 to install new front covers.
FIGURE A FIGURE B
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
