Matrix R5X-05 User Manual

51
9.20 GENERATOR REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the pedals as outlined in Section 9.12.
2) Remove the cranks as outlined in Section 9.13.
3) Remove the front covers as outlined in Section 9.15.
4) Remove the drive belt as outlined in Section 9.19.
5) Cut the cable tie and disconnect the generator with ECB wire from the LCB (Figures A & B).
6) Remove the 4 screws holding the generator to the frame (Figures C & D), and remove the generator.
7) Reverse Steps 1-6 to install a new generator.
8) Test the bike for function as outlined in Section 9.24.

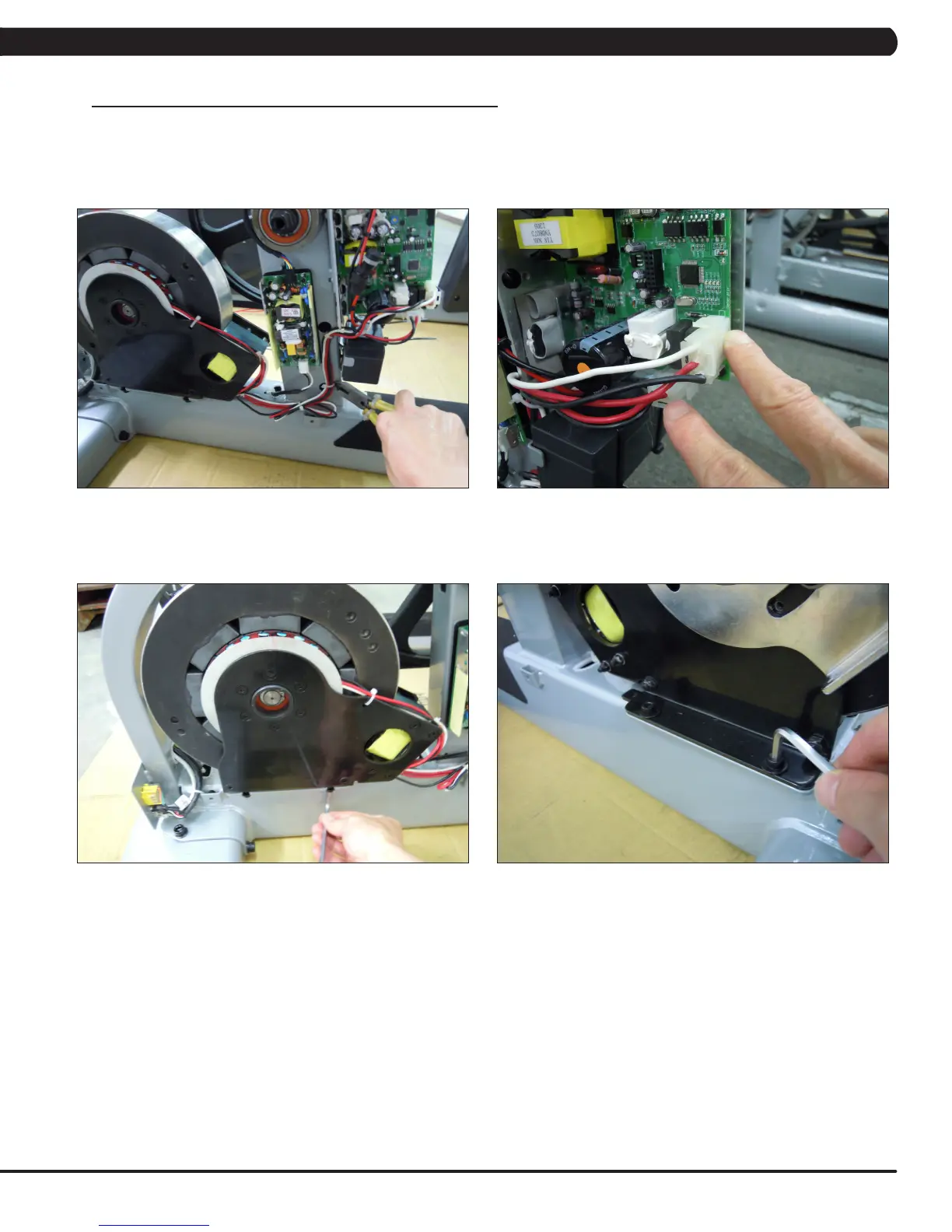

FIGURE A FIGURE B
FIGURE C FIGURE D
