Matrix T7XE-01 User Manual

56

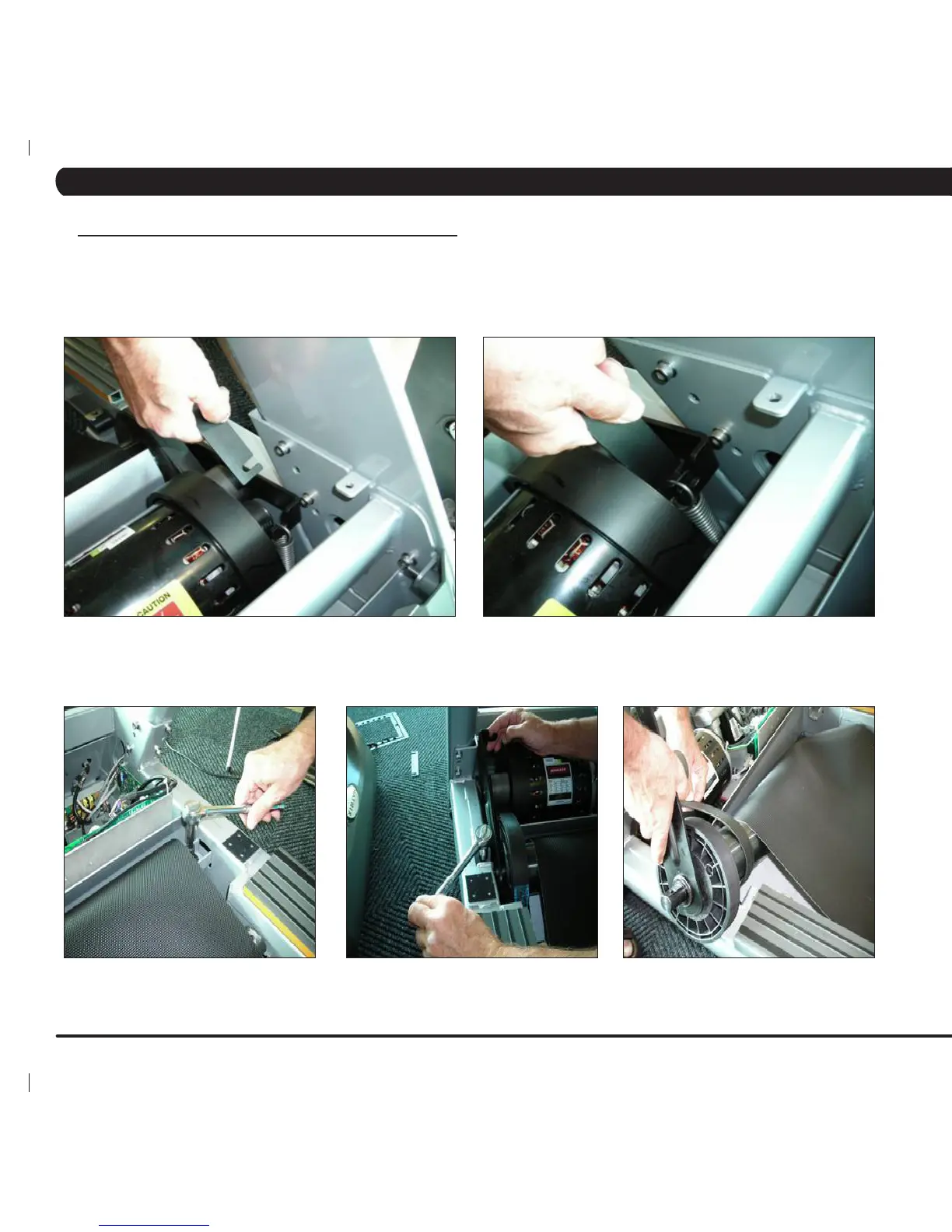

9.5 FRONT ROLLER REMOVAL
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the front shrouds as outlined in Section 9.1.
2) Using a hook or loop of wire, remove the spring from the drive belt tensioner. The tensioner should now pivot away from the drive belt
(Figures A & B).
3) Remove the front roller mounting screws using an 8 mm Allen wrench (Figures C & D).
4) Remove the drive belt from the front roller and remove the roller from the running belt (Figure E).
FIGURE A
FIGURE B
FIGURE C FIGURE D FIGURE E
