Matrix T7XE-01 User Manual

68
9.15 CONSOLE CABLE REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the unit and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.13.
3) Take off the cup holder from the right side of the treadmill (Figure A).
4) Use a 6 mm Allen wrench to remove one screw and take off plastic hand rail (Figure B).
5) Remove the 5 Phillips screws and remove the right side upper plastic cover (Figures C, D, & E).
6) Cut the wire ties and begin to unthread the wire harness (Figures F & G). .
7) Remove the spiral protective wrap from the top and bottom portion of the wire harness (Figures H & I).
8) Attach a pulling wire to the top of the defective console cable (Figure J).
9)Slowlyremovethedefectiveconsolecablestartingatthebottomofthemachineandpullingitupfromthemotorcompartment(FigureK).
10) Attach the new console cable to the pulling wire and gently pull the new cable down through the machine.
11) Once the wire is in place, reinstall the spiral wrap and wire ties.
12) Auto Calibration must ALWAYS be run after the installation of a new console cable (see Section 3.5).

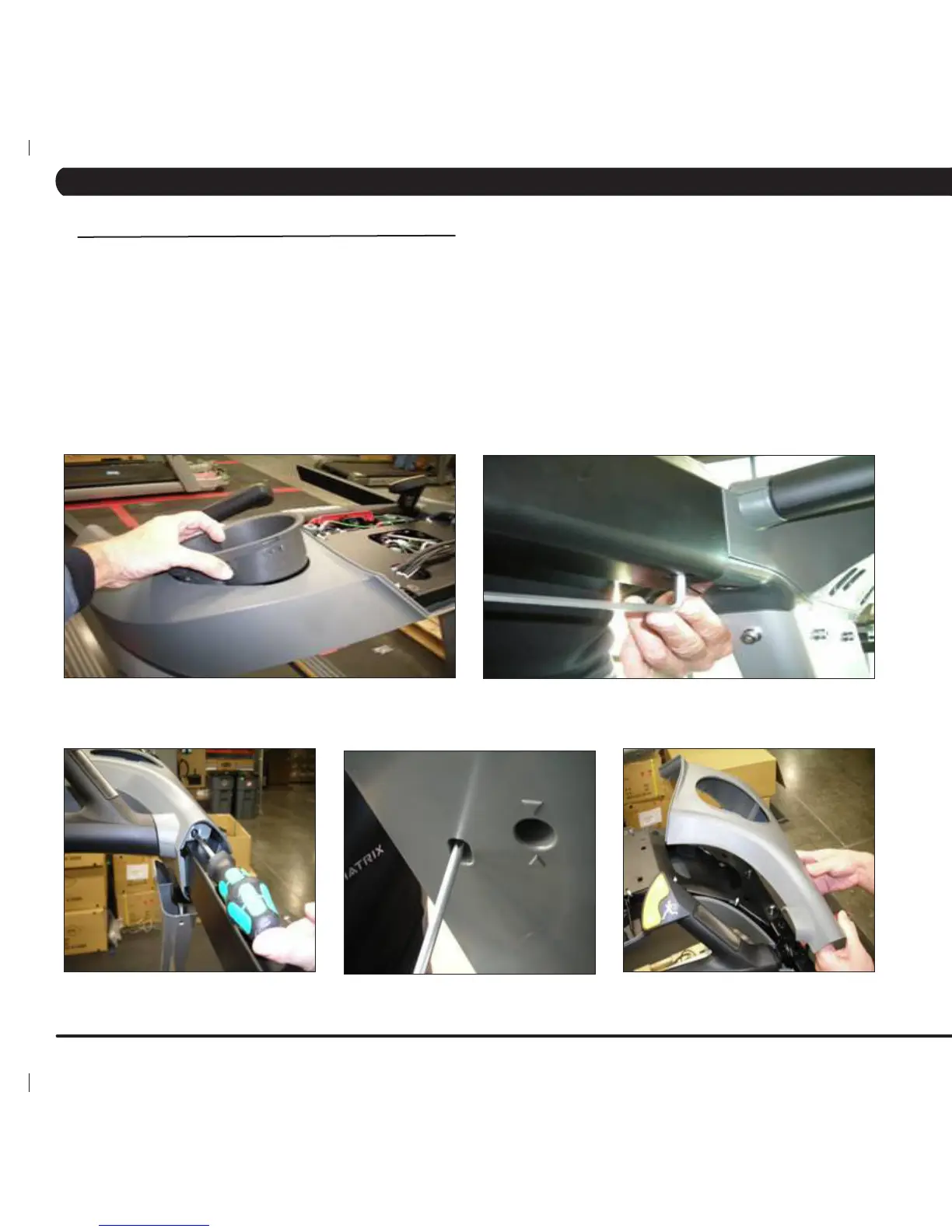

FIGURE A FIGURE B
FIGURE C
FIGURE D
FIGURE E
