Matrix T7XE-01 User Manual

70
9.16 HANDLE BAR SERVICE
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the unit and disconnect the cord from the machine.
2) All items on the handle bar are removed using a Phillips screwdriver from the underside of the bar.
3) Once screws are removed, lift the part carefully and disconnect any wire connections to fully remove the handle bar.
4)ReplacepartsasneededonhandlebarincludingtheQuickStartKey,ResistanceandInclineToggles,andtheHeartRateGripPlates
(Figures A-F).

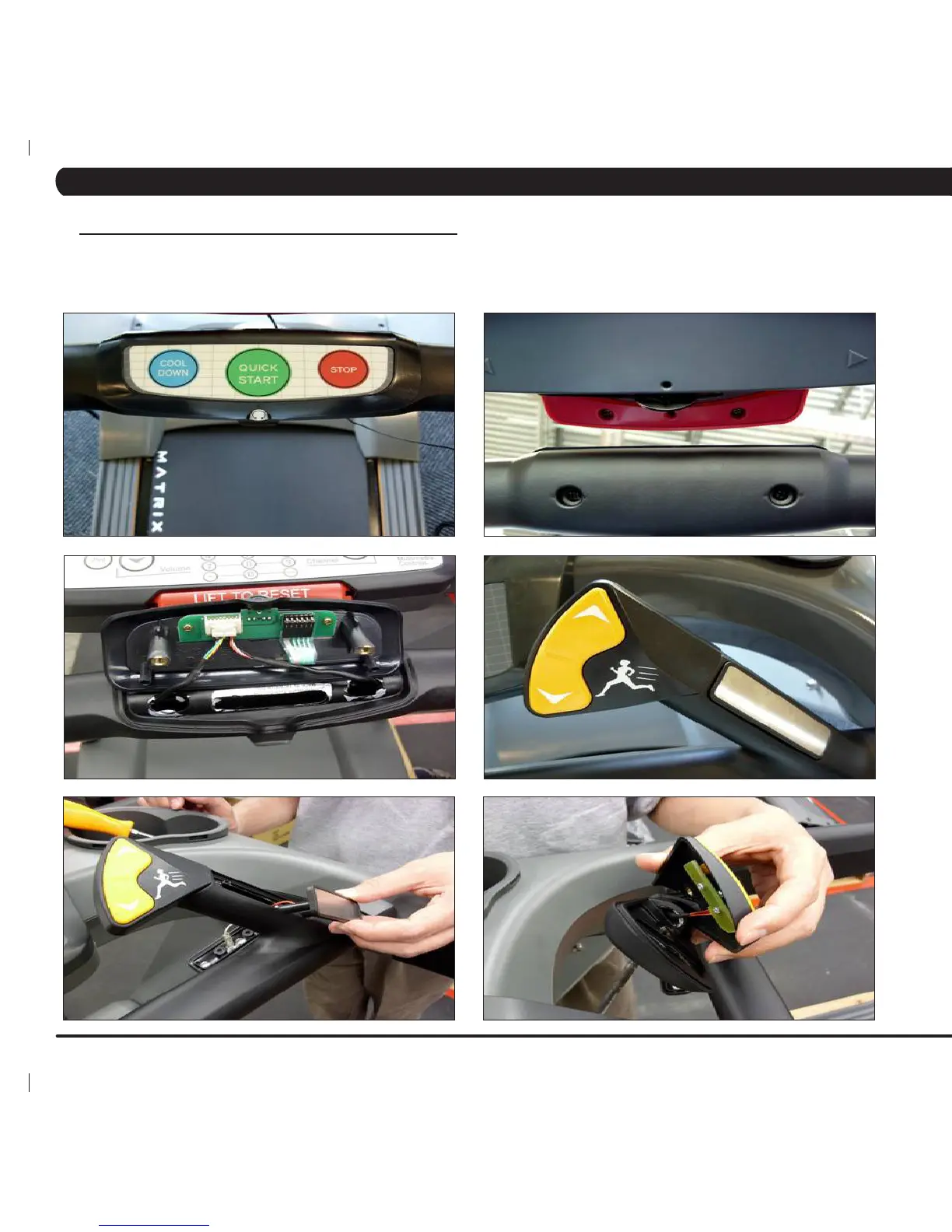

FIGURE A FIGURE B
FIGURE C FIGURE D
FIGURE E FIGURE F
