9.10 DRIVE BELT REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Remove the front shrouds as outlined in Section 9.1.
2) Release the drive belt tensioner from drive belt as outlined in Section 9.5.
3) Remove the front roller screw on the drive belt side and loosen the screw on the opposite side (Figure A).
4) Lift the roller and remove the old drive belt (Figure B).
5) After installing the new belt, check it for correct alignment to the motor pulley before setting the tensioner in place.

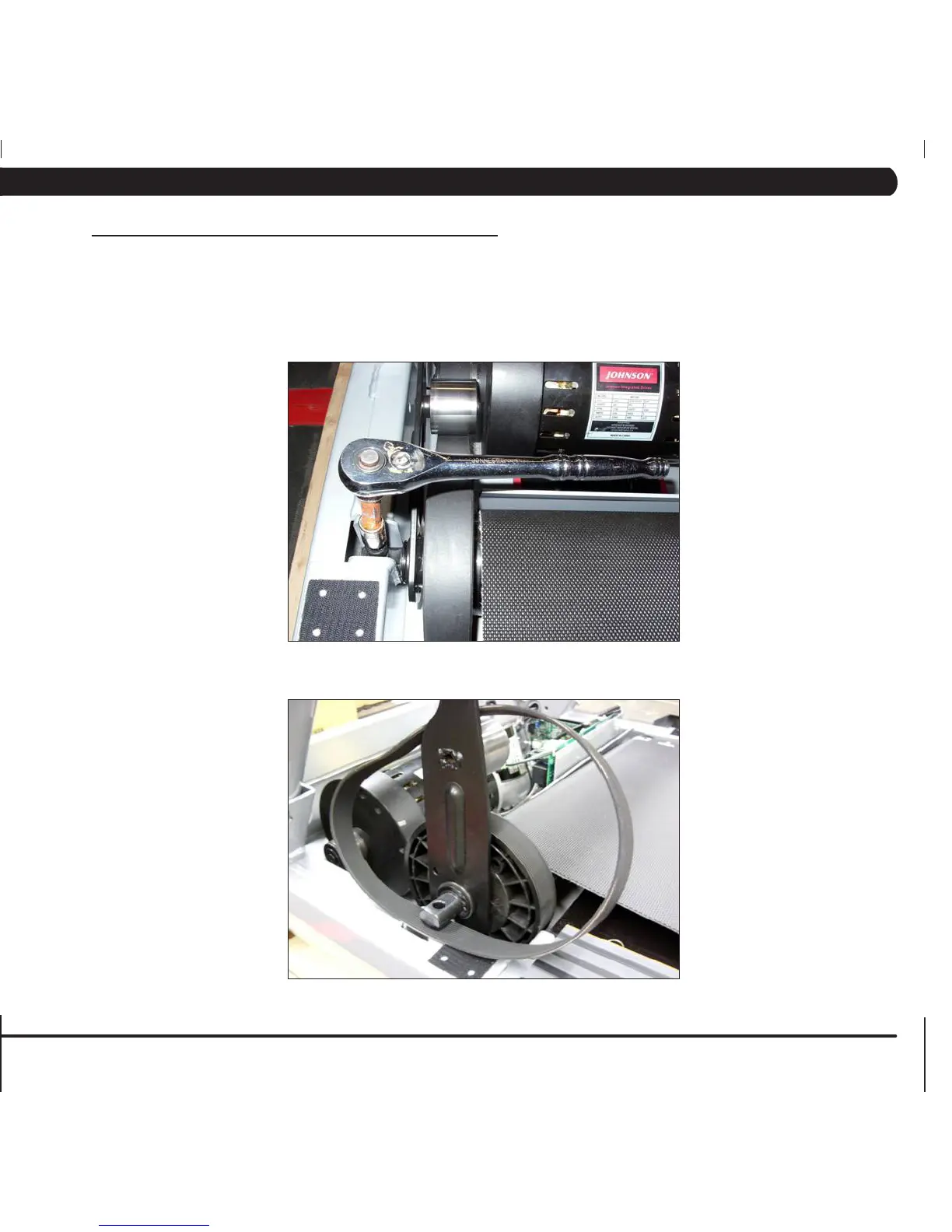

FIGURE A
