58
9.7 SIDE RAIL REMOVAL
CHAPTER 9: PART REPLACEMENT GUIDE

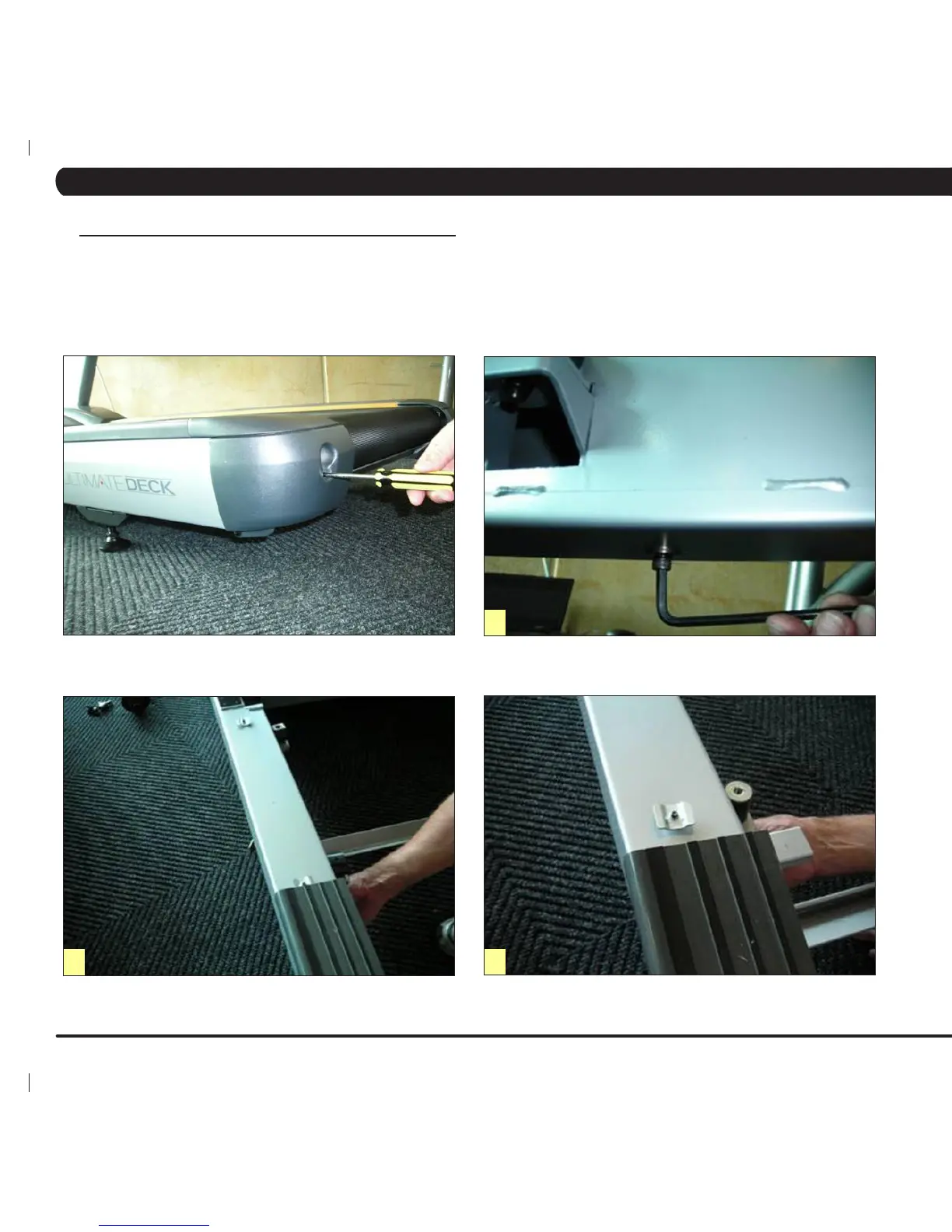

1) Remove the end cap using a Phillips screwdriver (Figure A).
2) Loosen the four screws under the frame using a 5 mm Allen wrench (Figure B).
3) Slide the rail off the back of the treadmill (Figures C & D).
4) After reinstalling the side rail, make sure the end cap is on first before tightening screws for proper gap spacing.
5) Be careful not to over tighten the screws, or they will poke through the top of the side rail.
FIGURE A FIGURE B
FIGURE DFIGURE C
