72
9.18 HEART RATE BOARD REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the unit and disconnect the cord from the machine.
2) Remove the console as outlined in Section 9.13.

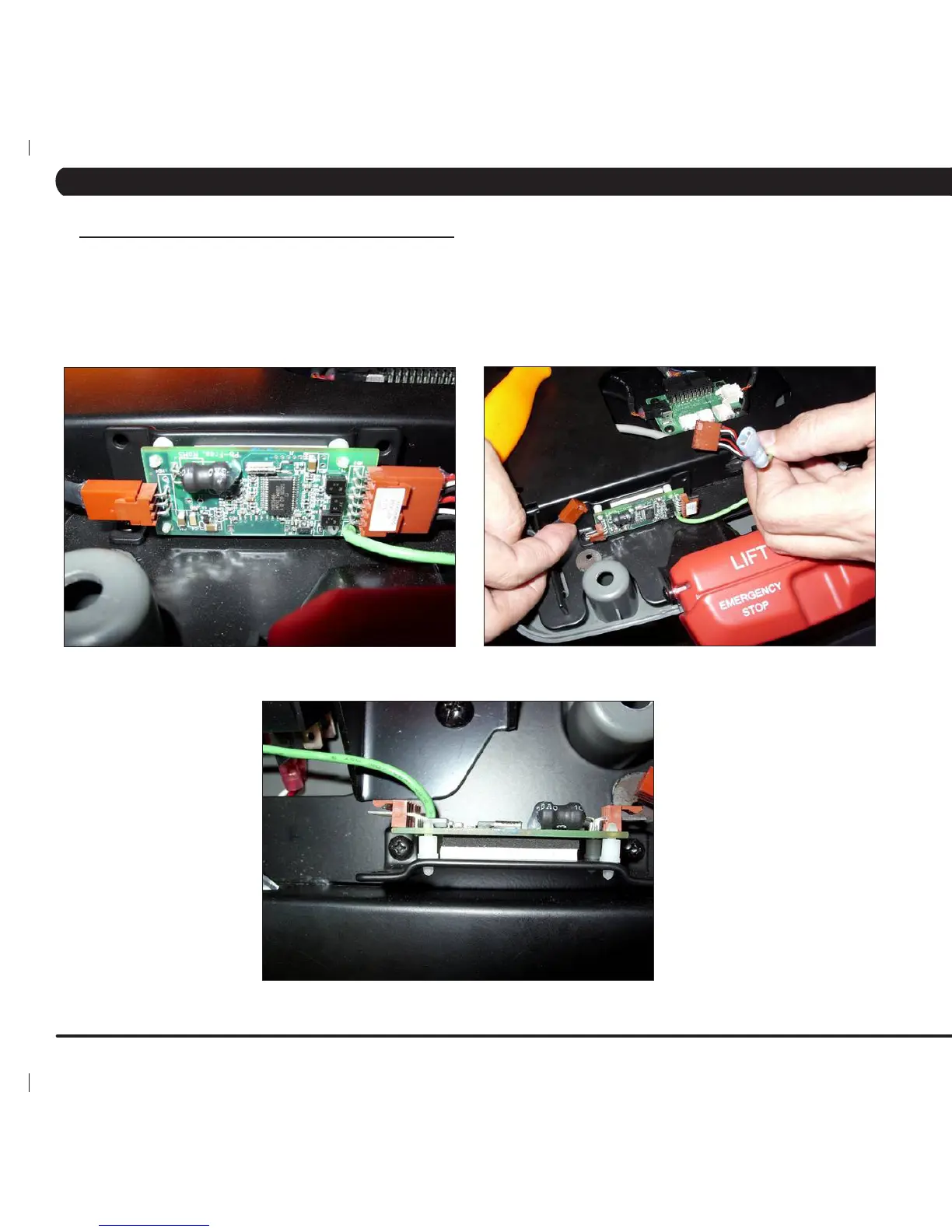

3) The Heart Rate Board is located in front of the red Emergency Stop button (Figure A).
4) Disconnect the wires from each side of the Heart Rate Board (Figure B).
5) Use a Phillips screwdriver to remove two screws, one from each side of the Heart Rate Board mounting bracket (Figure C).
6) Be sure to fully seat the wires on the new Heart Rate Board and test the grips after the console is reinstalled.
FIGURE A FIGURE B
FIGURE C
