9.13 CONSOLE REPLACEMENT
CHAPTER 9: PART REPLACEMENT GUIDE
1) Turn off power to the unit and disconnect the cord from the machine.
2) Remove the six 6 mm screws from underneath the console. There are arrows stamped in the plastic at the proper openings (Figure A).
3) Disconnect the wires from the console and set the console aside (Figure B).
4) Auto Calibration must ALWAYS be run after replacing the console (see Section 3.5).

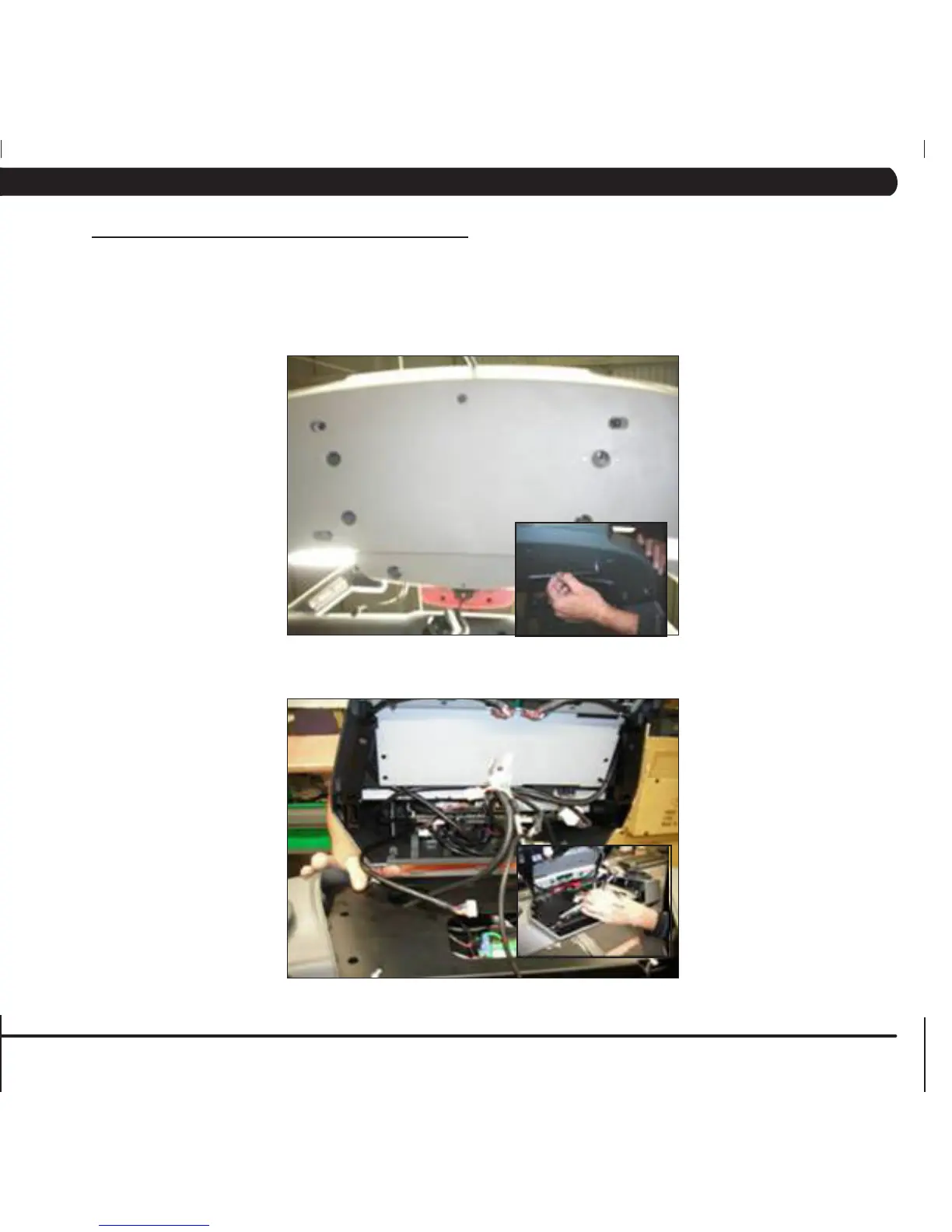

FIGURE A
FIGURE B
