Controls in detail
Automatic climate control

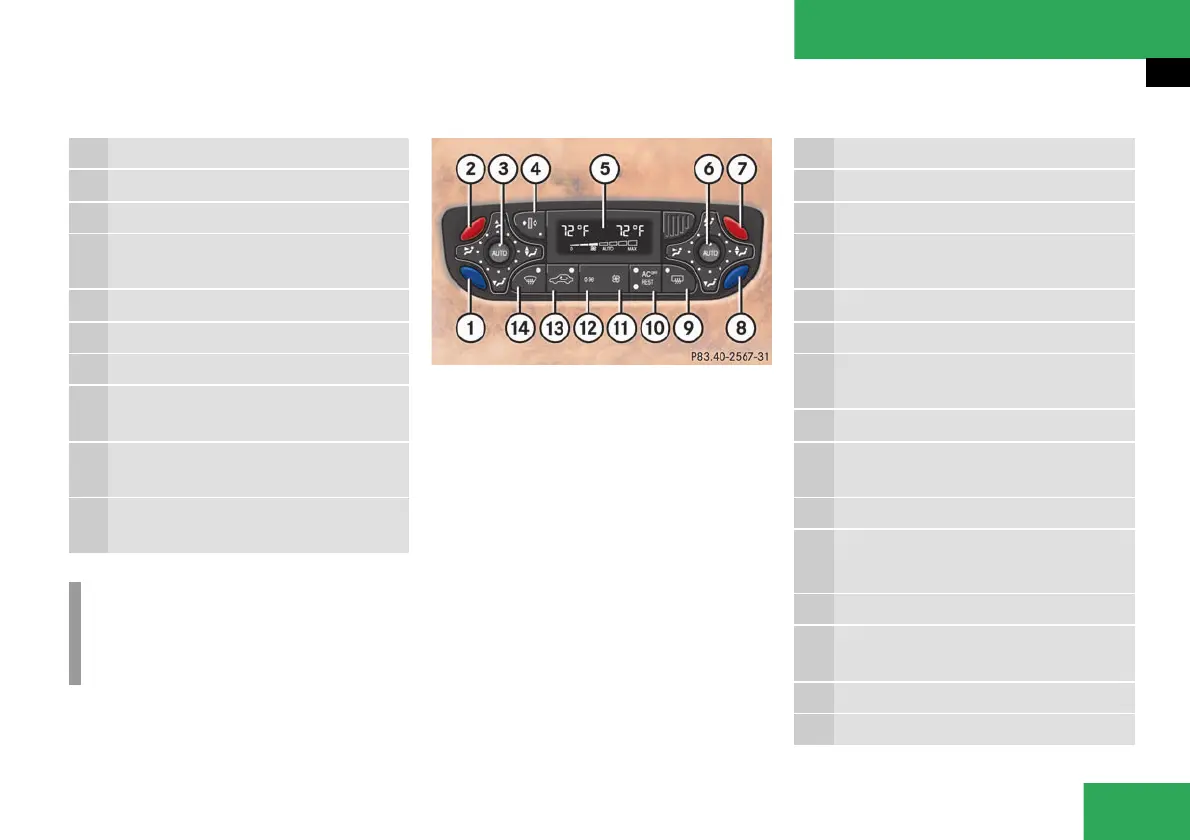

Automatic climate control panel
Item
1 Left side air vent, adjustable
2 Left center air vent, adjustable
3 Air volume control for center air
vents
4 Right center air vent, adjustable
5 Right side air vent, adjustable
6 Automatic climate control panel
7 Air volume control for far right air
vent
8 Thumbwheel for lowering tempera-
ture, center and side air vents
9 Air volume control for far left air
vent
i
For draft-free ventilation, move the slid-
ers for the center air vents to the mid-
dle position.
Item
1 Temperature control, left, lowering
2 Temperature control, left, raising
3 Left-side air distribution (automatic
or manual operation)
4 Activated charcoal filter
5 Display
6 Right-side air distribution (automat-
ic or manual operation)
7 Temperature control, right, raising
8 Temperature control, right,
lowering
9 Rear window defroster
10 AC cooling on/off
Residual heat/ventilation
11 Air volume control
12 Automatic climate control on/off
(complete system)
13 Air recirculation
14 Defrosting
