338
Practical hints
Fuses

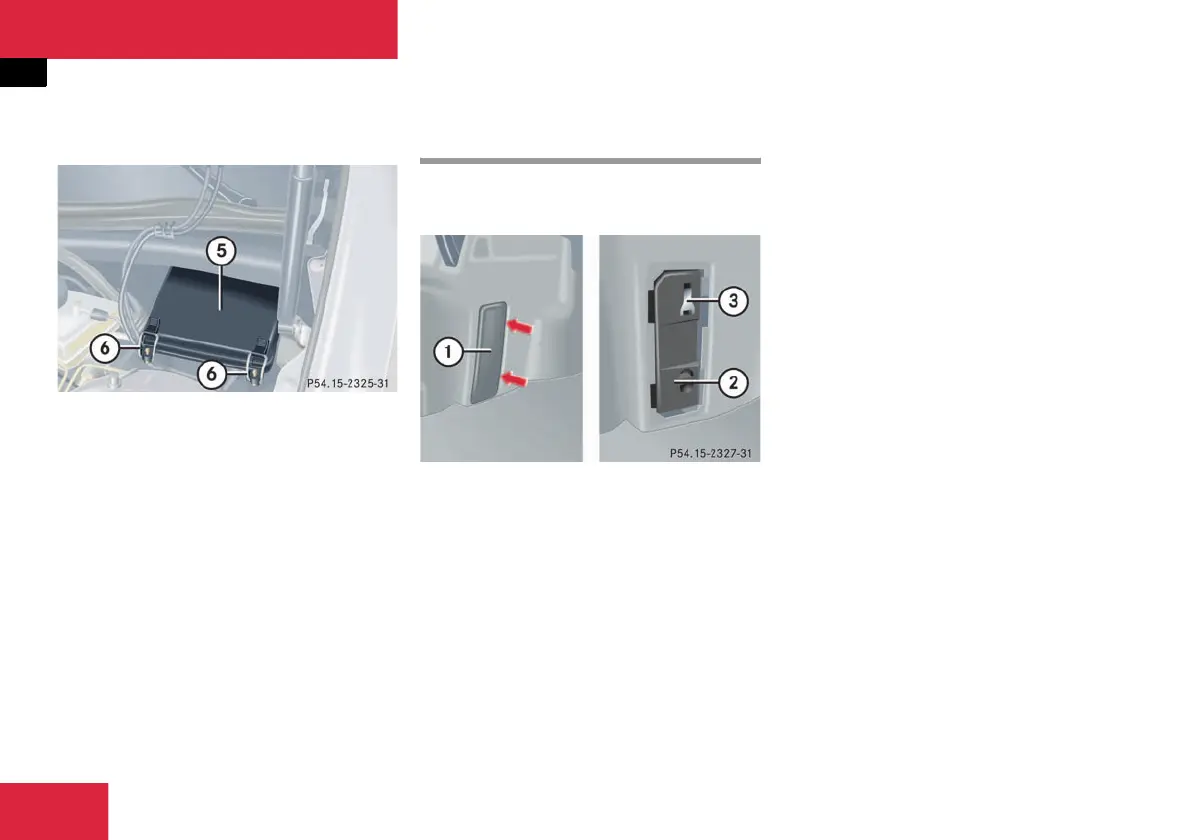

Opening fuse box
5 Fuse box cover
6 Clamps
왘 Release clamps 6.
왘 Remove cover 5.
Closing fuse box
왘 Ensure that the sealing rubber is prop-
erly positioned.
왘 Press the cover down and secure with
clamps 6.
Auxiliary fuse box in trunk
The auxiliary fuse box is located in the
trunk on the left hand side.
1 Trim
2 Cover
3 Spare extractor
Opening auxiliary fuse box
왘 Pull off trim 1.
왘 Remove cover 2.
Closing auxiliary fuse box
왘 Place cover 2 back on.
왘 Press trim 1 back into place.
Spare fuses
Spare fuses are found in the vehicle tool kit
in the cargo area.
Spare extractor
The fuse extractor is located in the cover of
the auxiliary fuse box in the trunk.
