Practical hints
Fuses
Fuses

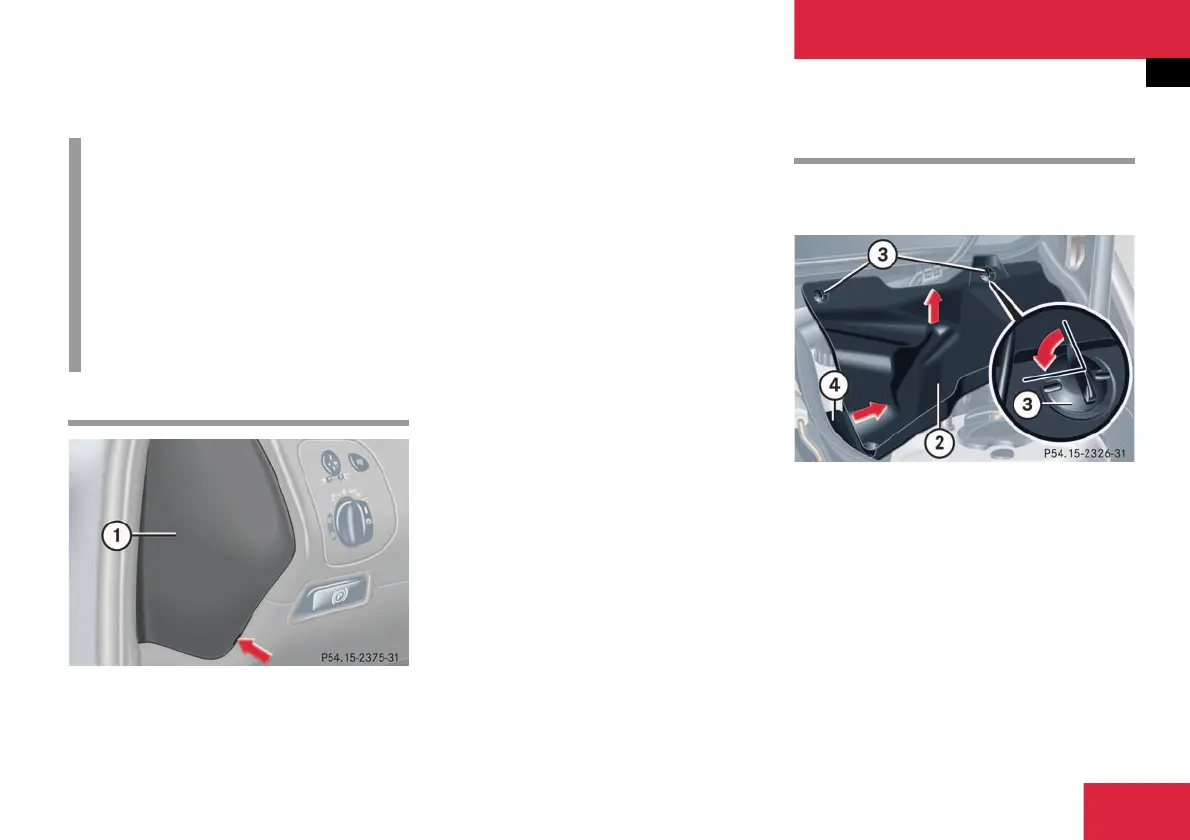

Fuse box in passenger compartment
Opening
왘 Pull cover away from fuse box 1 (ar-
row).
왘 Remove cover rearward.
Closing
왘 Attach the cover in the front.
왘 Fold the cover in until it engages.
Fuse chart
The fuse chart is found in the fuse box in
the passenger compartment. The amper-
ages of the fuses are also given there.
Fuse box in engine compartment
The fuse box is located in the engine com-
partment on the left-hand side.
2 Cover
3 Screw
4 Retainer
Removing/installing cover
왘 Twist screws 3 90° counterclockwise.
왘 Pull up cover 2.
왘 Slide out retainer 4 and remove cover
by pulling towards front.
왘 Install cover 2 in reverse order.
i
Only install fuses that have been tested
and approved by Mercedes-Benz and
that have the specified amperage rat-
ing.
Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.
