Fuses
Notes on changing fuses
The fuses in your vehicle serve to close down
faulty circuits. If afuse blows, all the compo-
nents on the circuit and their functions will
fail.
Blown fuses must be replacedwith fuses of
the same rating, which you can recognise by
the colour and value. The fuse ratings are lis-
ted in the fuse allocation chart. AMercedes-
BenzService Centre will be happy to advise
you.
G
Risk of fire
Only use fuses that have been approved for
Mercedes-Benz vehicles and which have the
correct fuse rating for the systems con-
cerned. Do not attempt to repair or bridge
faulty fuses. Otherwise, a circuit overload
could cause a fire. Have the cause traced and
rectified at a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre.
If the newly inserted fuse also blows, have the
cause traced and rectified at a qualified spe-
cialist workshop, e.g. a Mercedes-Benz
Service Centre.
!
Only use fuses that have been approved
for Mercedes-Benzvehicles and which
have the correct fuse rating for the system
concerned. Otherwise, components or sys-
tems could be damaged.
The fuses are in the fuse boxes in the front-
passenger footwell and in the rear compart-
ment.
Fuse allocation chart
The "Relay and fuse information sheet" is
located with the wheel-changing tools
(Y page 288) in the boot.
Before changing a fuse
X
Park the vehicle.
X
Switch off all electrical consumers.
X
Select key position 0 with the Start/Stop
button.

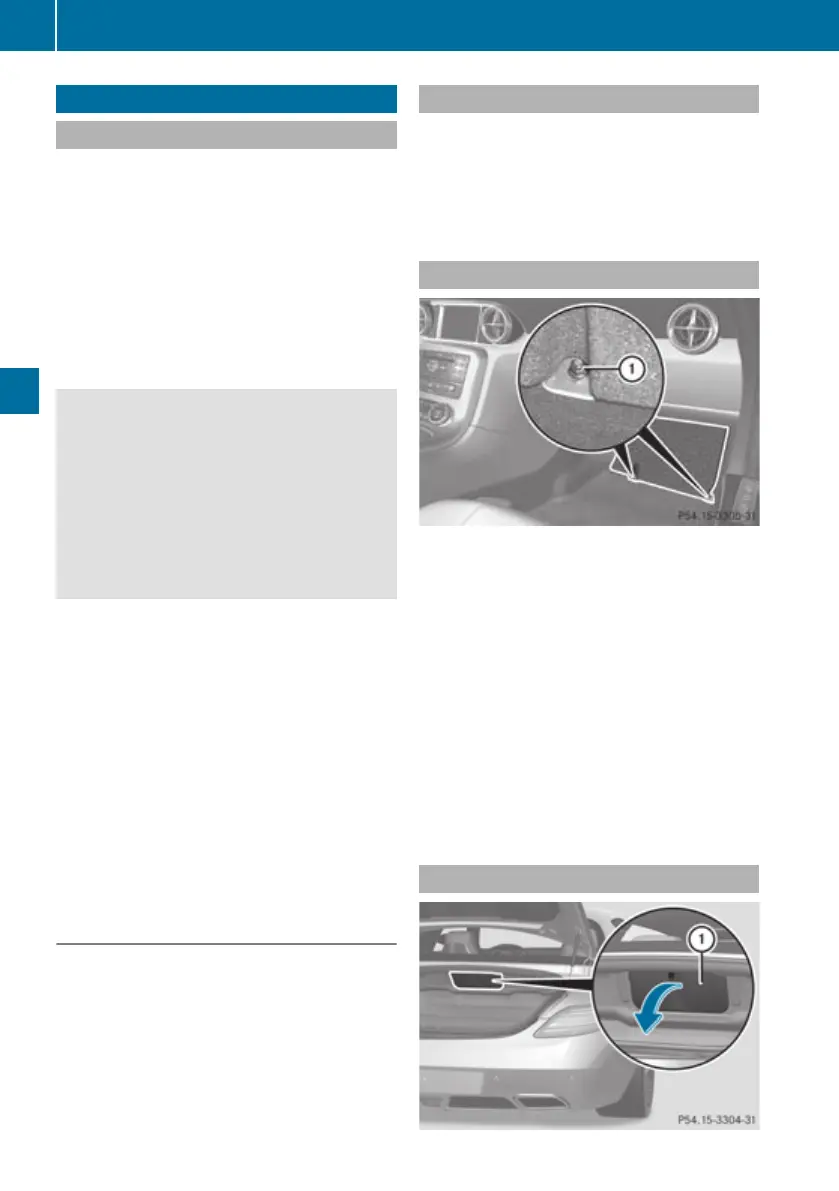

Fuse box in the footwell
X
To open: remove the carpet over the foot-
rest.
X
Loosen screws : on the floor panel using
a suitable tool.
X
Remove the floor panel.
X
To close: fit the floor panel again.
X
Screw in and tighten screws :.
X
Put in the carpet and press to secure.
!
The floor panel must be fitted properly,
otherwise moisture or dirt could impair the
function of the fuses.
