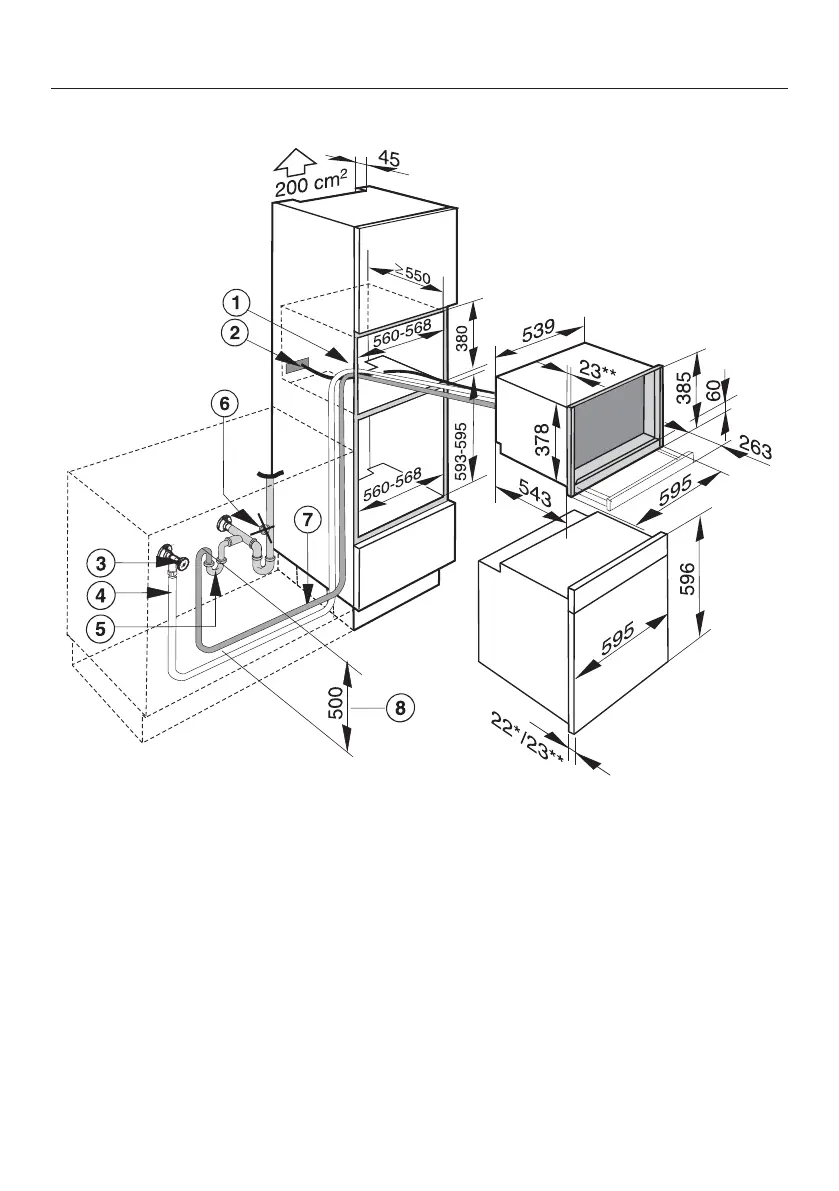

Building-in dimensions
92
DGD 4635 in 380 mm high niche
a
Cut-out in housing unit for feeding
water inlet and drain hoses through
b
Isolator switch position 250 x 80 mm
(Important: Do not position behind
the appliance)
c
Tap (cold water connection)
d
Water inlet hose
e
Separate siphon
f
Do not connect the drain hose at this
position (see "Plumbing in the appli‐
ance - Connection to the drainage
system")
g
Drain hose
h
Important: The top end of the drain
hose must not be higher than 500
mm where it connects to the siphon.
* Appliances with a glass front / ** Appliances with a metal front
