Matching the fascia panel to
the height of adjacent drawer
fronts

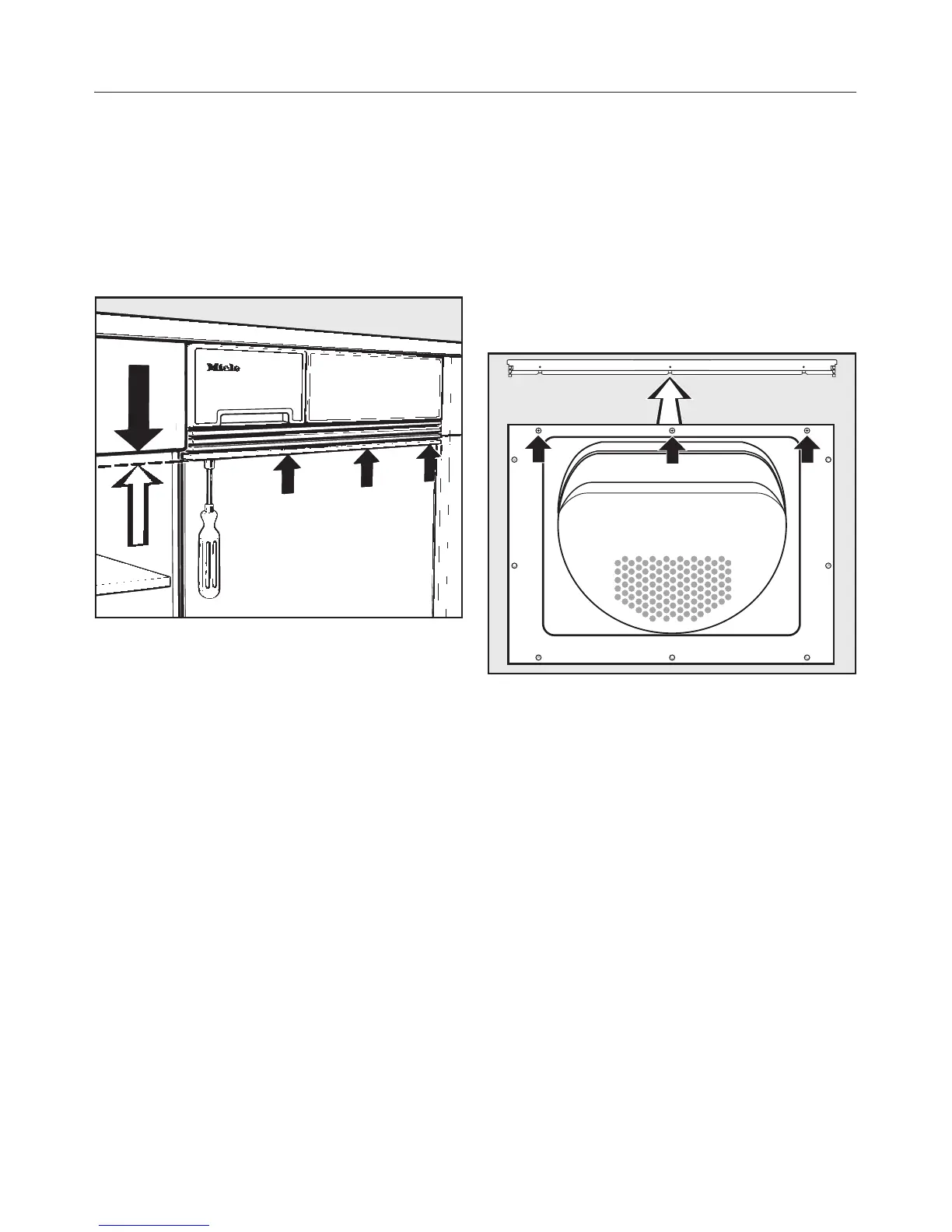

The fascia panel can be aligned with
the drawer fronts by adjusting the
spacer bars.
^ Using a socket spanner, turn
clockwise or anti-clockwise until the
required height is reached.
If necessary individual bars can be
removed or more added.
^
To do this, use the socket spanner to
loosen the nuts.
An adapter kit with spacer bars and
longer screws can be ordered as an
optional accessory. This can be used to
add spacer bars from below up to a
maximum of 25 mm.
After fitting the bars, cut or pinch off
any excess length from the screws.
Removing the spacer bars
All the spacer bars can be removed if
the upper edge of the front panel needs
to be flush with the upper edge of the
appliance front directly underneath the
fascia panel. See "Fitting a front panel
made by another manufacturer".
^
Open the door.
^ Unscrew and remove the 3 screws
(see arrows).
^
Remove all the spacer bars.
The 3 holes which are now free should
be used to screw the front panel to the
machine front later on.
Installation and connection
56

Miele T 4859 Ci Specifications

General

Control type	Buttons
Display type	LCD
Loading type	Front-load
Drying system	Condensation
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Drying class	-
Drum capacity	6 kg
Maximum spin speed	1400 RPM
Delay start (max)	24 h
Current	13 A
Connected load	2850 W
AC input voltage	220-230 V
AC input frequency	50 Hz
Energy consumption	3.35 kWh
Annual energy consumption	265 kWh

Weight and Dimensions

Depth	575 mm
Width	595 mm
Height	820 mm
Weight	52000 g
Depth with door open	1150 mm
