Fitting a door front panel made
by another manufacturer

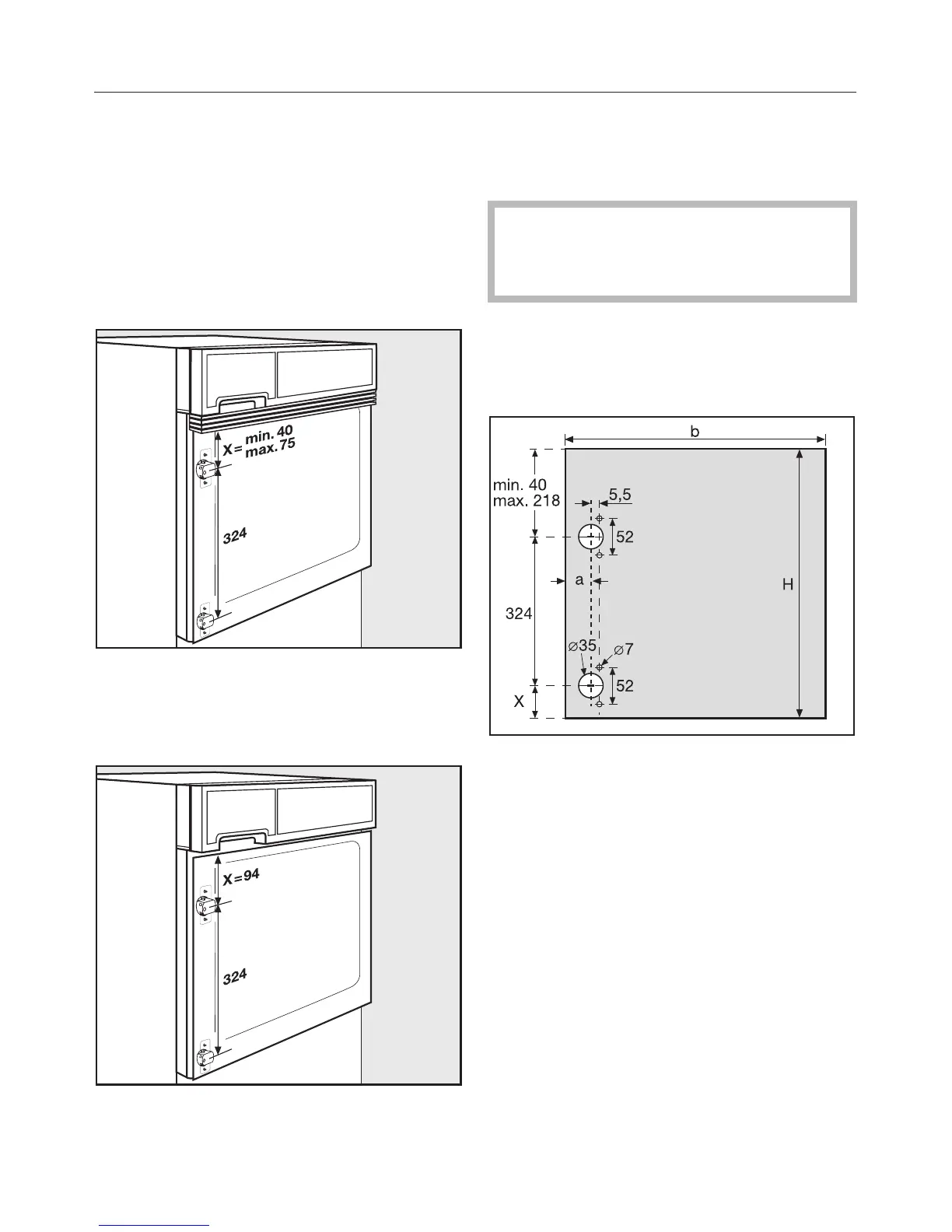

Preparing the front panel
A Measure distance X for drilling the
hinge holes.
–
with spacer bars:
– without spacer bars:
(the front panel must be
correspondingly higher)
B Mark the two hinge holes and the
four smaller holes as shown in the
diagram.
Depending on country, this tumble
dryer is supplied either left or right
hand hinged.
For left hand hinging only:
–
front panel shown decor side face
down, upper edge at the bottom:
if width (b) increases, measurement a
must also be increased
b = 592 mm N a = 21.5 mm
b = 593 mm N a = 22.0 mm
b = 594 mm N a = 22.5 mm
b = 595 mm N a = 23.0 mm
b = 596 mm N a = 23.5 mm
H = height of adjacent furniture unit
doors.
Installation and connection
58

Miele T 4859 Ci Specifications

General

Control type	Buttons
Display type	LCD
Loading type	Front-load
Drying system	Condensation
Product color	Stainless steel
Built-in display	Yes
Appliance placement	Freestanding
Drying class	-
Drum capacity	6 kg
Maximum spin speed	1400 RPM
Delay start (max)	24 h
Current	13 A
Connected load	2850 W
AC input voltage	220-230 V
AC input frequency	50 Hz
Energy consumption	3.35 kWh
Annual energy consumption	265 kWh

Weight and Dimensions

Depth	575 mm
Width	595 mm
Height	820 mm
Weight	52000 g
Depth with door open	1150 mm
