Milnor C Series User Manual

10
Pellerin Milnor Corporation
3.3 Open the door (turn-knob).
BNCLJO09.T04 0000213858 A.10 B.20 B.7 9/16/20 9:35 AM Released

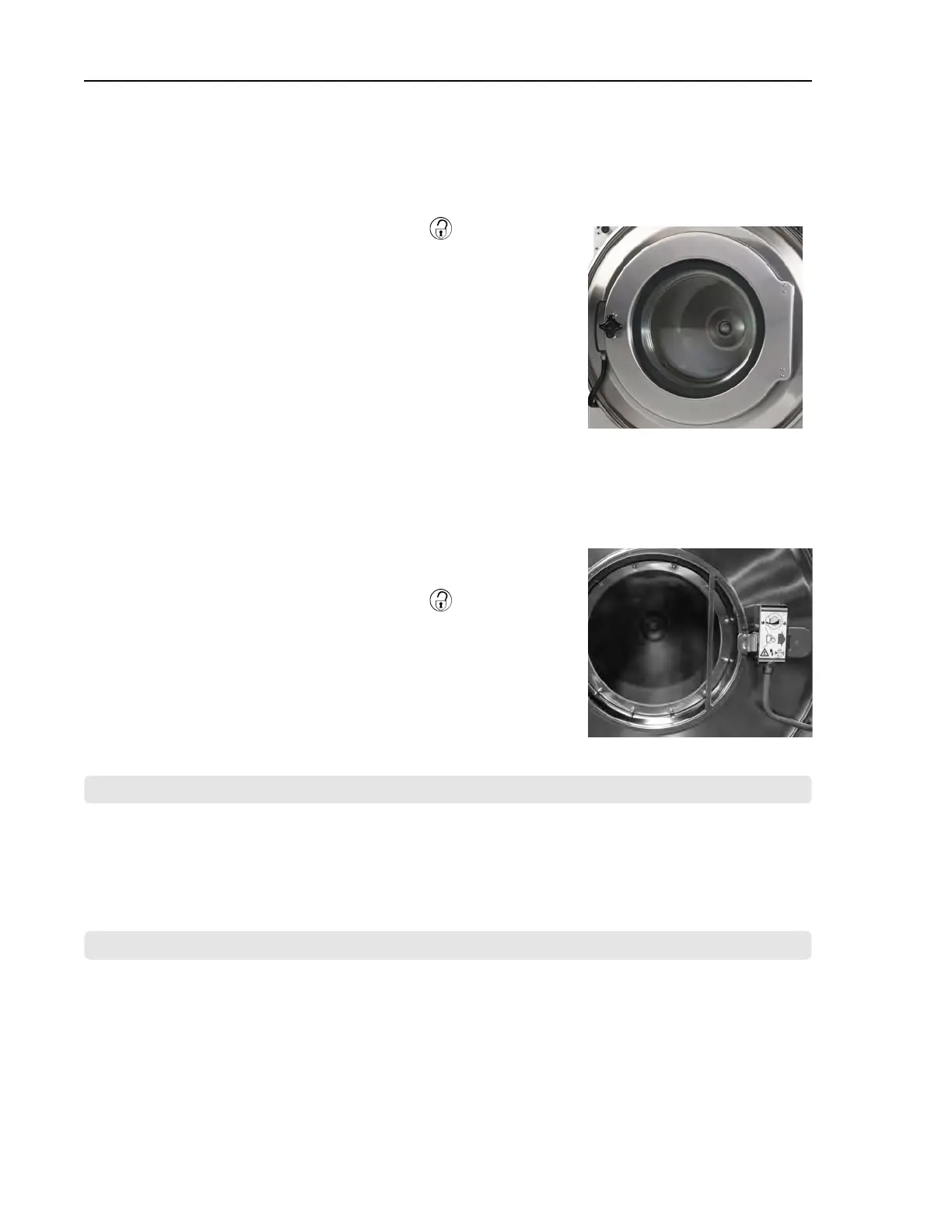

Figure 5. Door with a Turn-
Knob
To open the door:
1. Press and release the door unlock button (
).
2. Turn the knob clockwise to unlatch the door.
3. Pull the door open.
3.3.1 Open the door (push-plate).
BNCLJO12.T02 0000214321 A.10 B.20 B.8 9/16/20 9:36 AM Released
Figure 6. Door with a Push-
Plate
Older machine models may be equipped with a push-plate
mechanism instead of a turn-knob.
To open the door:
1. Press and release the door unlock button (
). The door
latch unlocks.
2. Push the plate on the door latch mechanism with sufficient
force that the door unlatches.
3. Pull the door open.
BNWMTO01 / 2020403
BNWMTO01 0000279929 A.22 9/29/20 9:50 AM Released
3.4 Load the cylinder.
BNWMTO01.T02 0000305626 A.10 A.22 A.4 9/16/20 10:21 AM Released
Load the cylinder according to your chart of the goods types to be processed and their correct
load sizes.
BNWUUO04 / 2020403
BNWUUO04 0000279498 A.18 9/29/20 9:53 AM Released
3.5 Close the door.
BNWUUO04.C01 0000279497 A.10 A.18 A.26 9/16/20 11:29 AM Released
To close the door, swing the door closed with sufficient force that it latches.
Normal Operation
13
