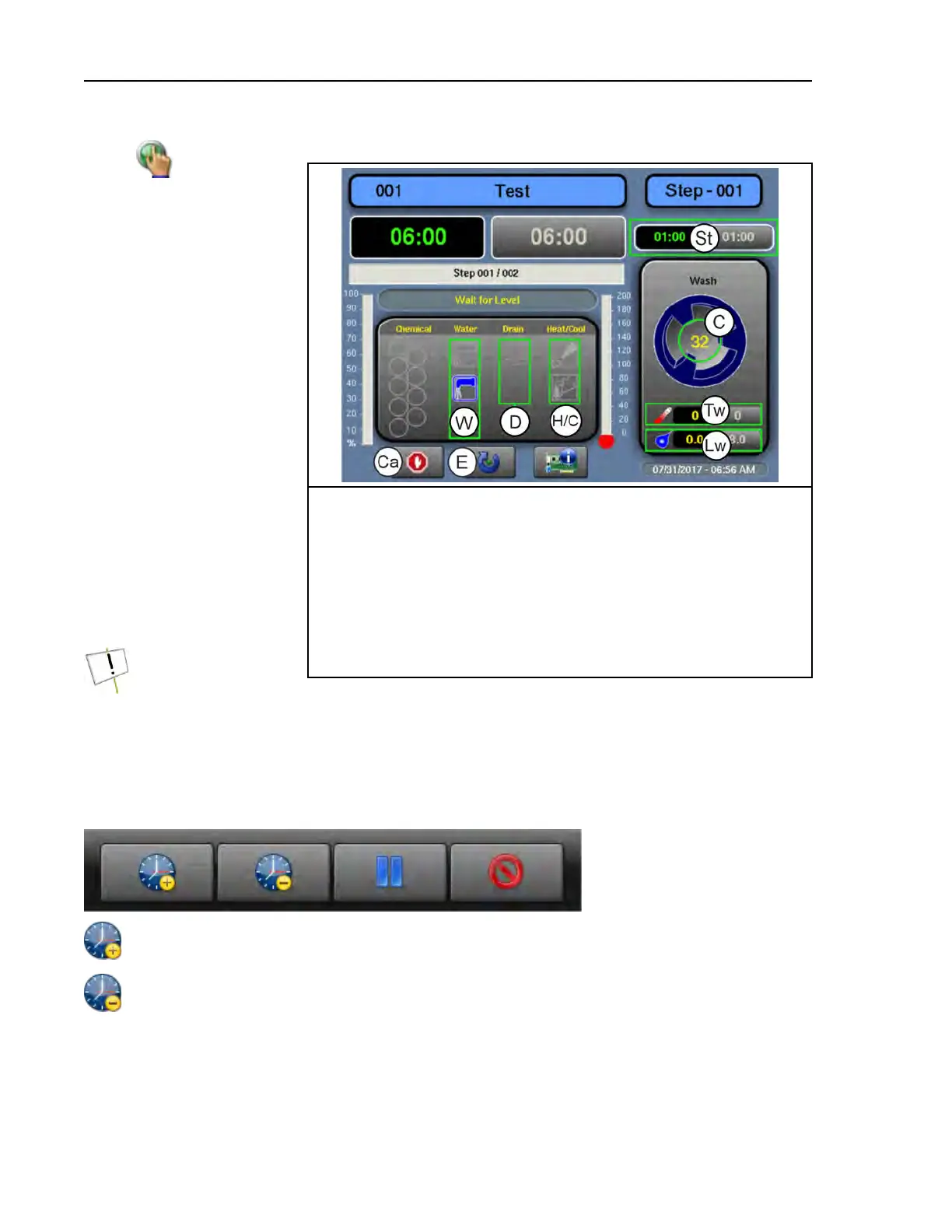

Figure 14. Formula Control Areas
Legend
C. Cylinder speed controls
Ca. Cancel the formula
D. Drain and reuse controls
E. End formula intervention
H/C. Heat and cool (steam and cooldown) controls
Lw. Bath level controls
St. Step timer controls
Tw. Bath temperature controls
W. Water valve controls
Touch on the Run
display to start formula in-
tervention. Controls in the
Names and Timers area
and the Machine Status
area of the Run display
become active so that you
can change the formula in
progress. Green boxes on
the display identify the
formula control areas, or
the settings that can be
changed, as shown in Fig-
ure 14 .
In formula intervention
mode, touch a box to dis-
play the pop-up controls
for that setting. The pop-
up controls available cor-
respond with your ma-
chine’s equipment and
your configuration
decisions.
NOTICE: The
MilTouch™ con-
troller prevents the activation of certain controls when their activation would be inappro-
priate. For example, the controls for the water valves are not available when the bath
water is at its maximum level.
Modify Step Timer — Touch the box identified by item St on Figure 14 .
Figure 15. Pop-up Controls for Step Timer
Add 1 minute to the remaining step time.
Subtract 1 minute from the remaining step time. If there is less than 1 minute remaining
on the step timer, the timer is reduced to 00:00 and the controller moves on to the next phase
in the current step, or the next step if there are no more phases.
