4. INSTALLATION AND PRE-OPERATION SETTING PROCEDURE
4 - 8
4.4 Station Number Setting
The buffer memory addresses of the master module, where the remote I/O signals
and read/write data are stored, are determined by the station number setting of the
high-speed counter module.
For details, refer to the user's manual (details) of the used master module.
4.5 Orientation of Module Installation

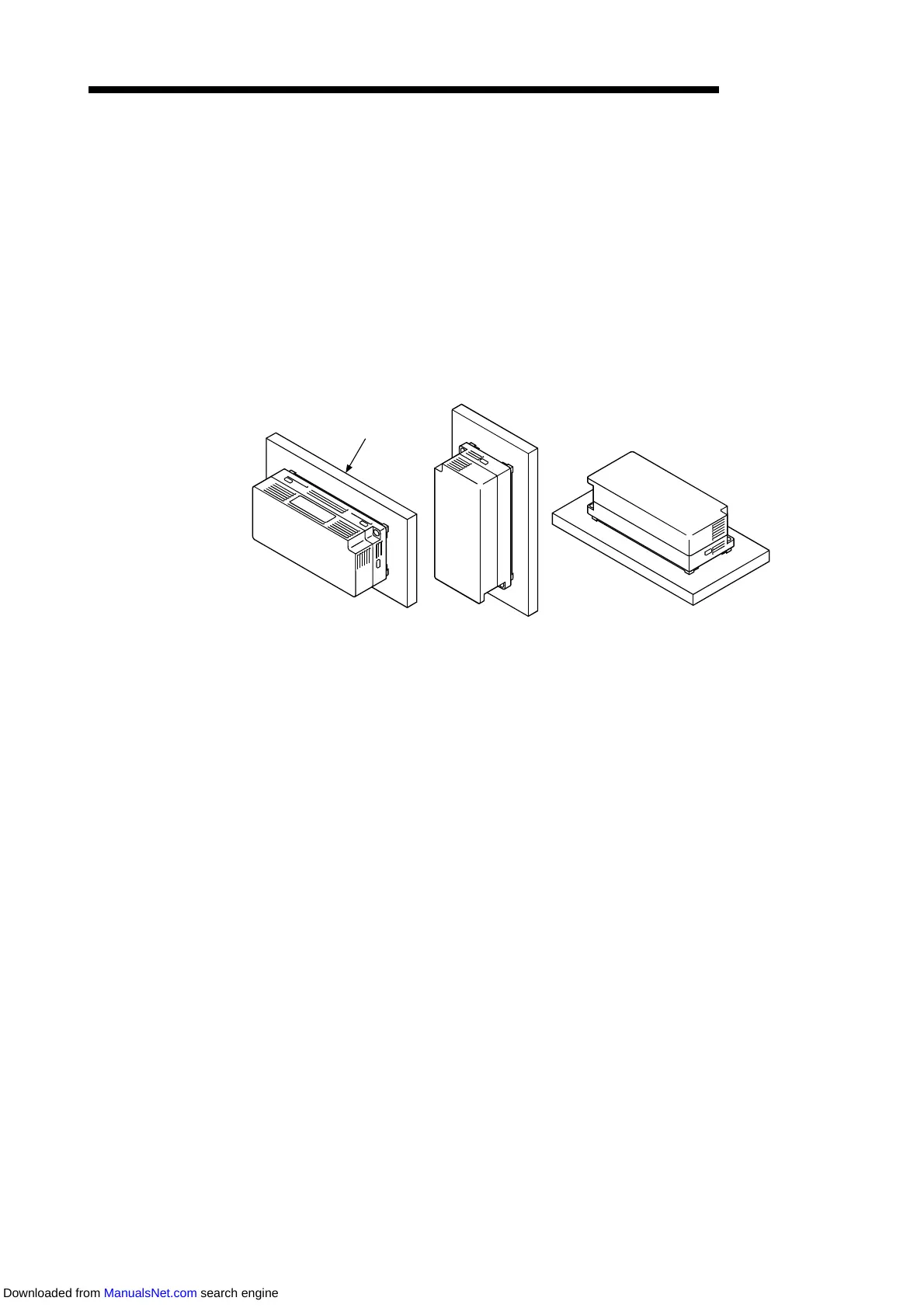

The following shows the possible orientation for high-speed counter module
installation.
Panel
When installing alongside the panel When installing on the panel
