10. PROGRAMMING
Program examples such as programming procedure, current value reading and
various function settings of the high-speed counter module are described.
When program examples introduced in this chapter are used in the actual system,
make sure that the control on the system concerned is acceptable.
Refer to the applicable master module user's manual (Detail) for the master module,
Section 3.6 for the remote register and the AnSHCPU/AnACPU/AnUCPU
programming manual (Dedicated command) for details of dedicated command.
10.1 Programming Procedures

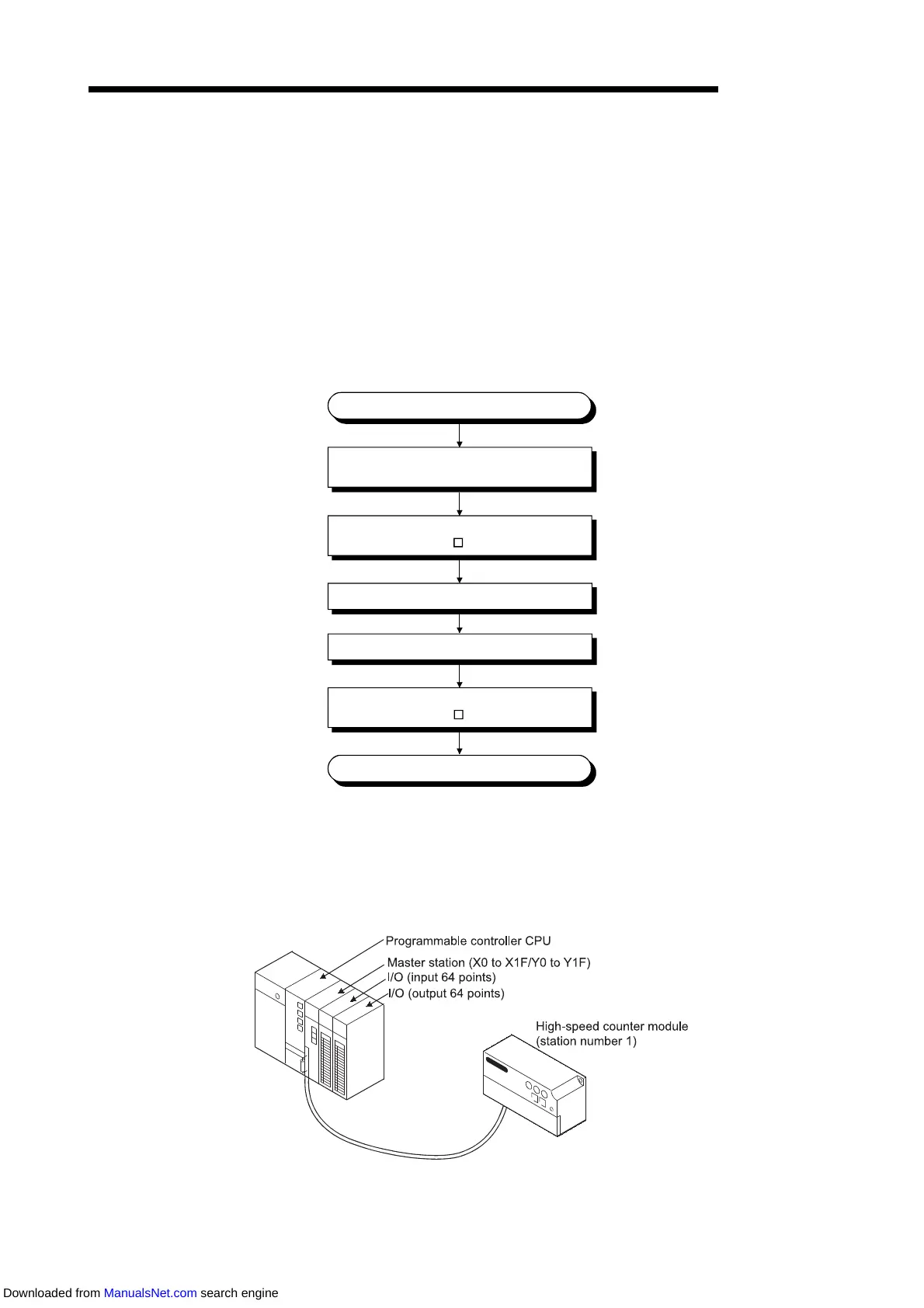

Create the high-speed counter module program with the procedures below:
Start
Pulse input mode/model selection
register/external output hold-clear settings
Count start of pulse
(Turn ON CH. count enable.)
Current value reading
Various function settings
Count stop of pulse
(Turn OFF CH. count enable.)
End
10.2 Condition of Program Example
Program examples in this chapter are created under the conditions below:
(1) System configuration
