MELSEC-A
4. INSTALLATION AND PRE-OPERATION SETTING PROCEDURE
4 - 11

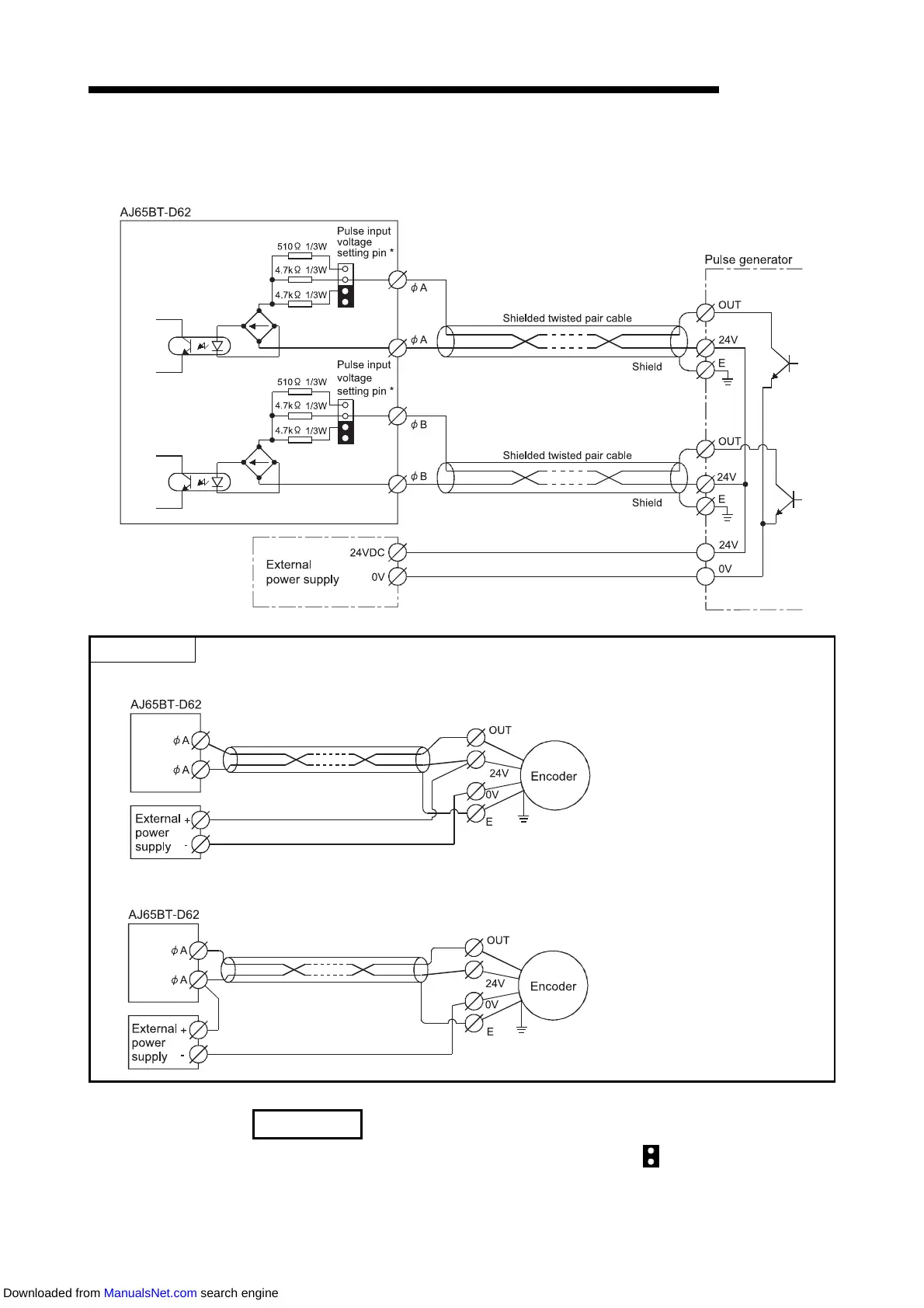

4.6.3 Wiring examples of pulse generators
(1) Pulse generator is open collector output type (24VDC)
POINT
When wiring the AJ65BT-D62 and encoder, separate the power supply and signal lines as shown below.
Incorrect Wiring Example
Since the same twisted wire is
used for both the encoder signal
and power supply, the canceling
effect will reduce and electro-
magnetic induction may occur.
REMARK
* ............. Set the pulse input voltage setting pins in the position.
