Make sure to remove the rubber plugs on the LEV Assembly before installation.
Ⓐ Remove plug before
installation
Fig 6-1

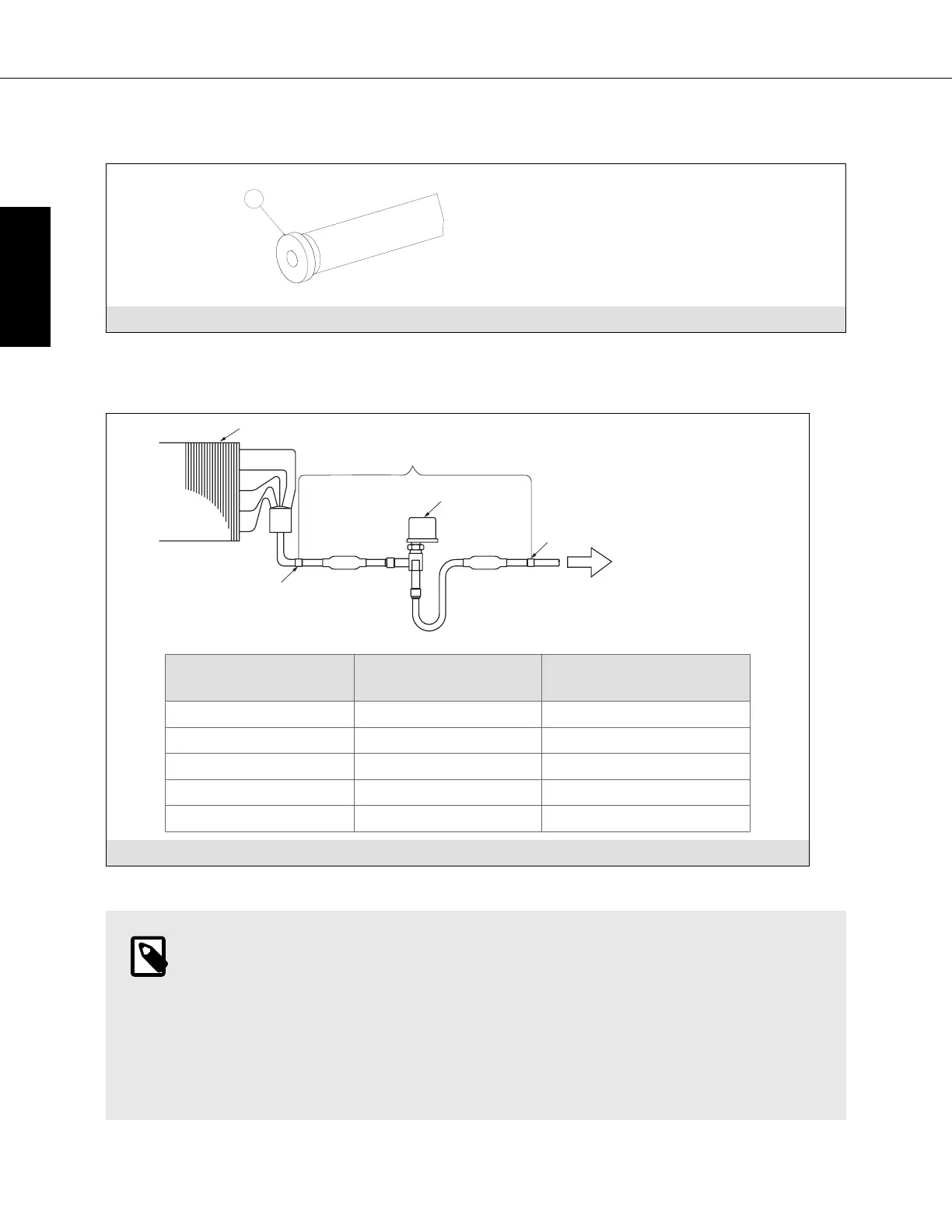

Figure 6-2 shows the installation for a single LEV Assembly.
Ⓐ AHU Heat
exchanger
(field supplied)
Ⓑ LEV
Assembly
Ⓒ Brazing
Ⓓ LEV
Ⓔ To Outdoor
Unit
Figure 6-2 shows the installation for a single LEV
Assembly.
LEV Assembly Model
Capacity Code
Setting [Ton]
Design Capacity Range
[Btu/h]
LEV PAC-LV24AC-1 0.5, 0.7, 1, 1.25, 1.5, 2 4,800 - 24,000
LEV PAC-LV48AC-1 2.25, 2.5, 3, 4 24,000 - 48,000
LEV PAC-LV60AC-1 4.5, 5 48,000 - 60,000
LEV PAC-LV96AC-1 6, 8 60,000 - 96,000
LEV PAC-LV120AC-1 10 96,000 - 120,000
1 ©
ENGLISH
Fig 6-2
NOTE
To ensure proper refrigerant flow and balance:
• Single valve LEV Assemblies must be installed with LEV in horizontal, vertical, or side
position. Do not install Single valve LEV Assemblies with LEV in upside down position.
• Double valve LEV Assemblies must be installed with LEV in horizontal position (i.e. LEV
valve heads oriented in upright position). Do not install double valve LEV Assemblies
with LEV in vertical, side or upside down position."
