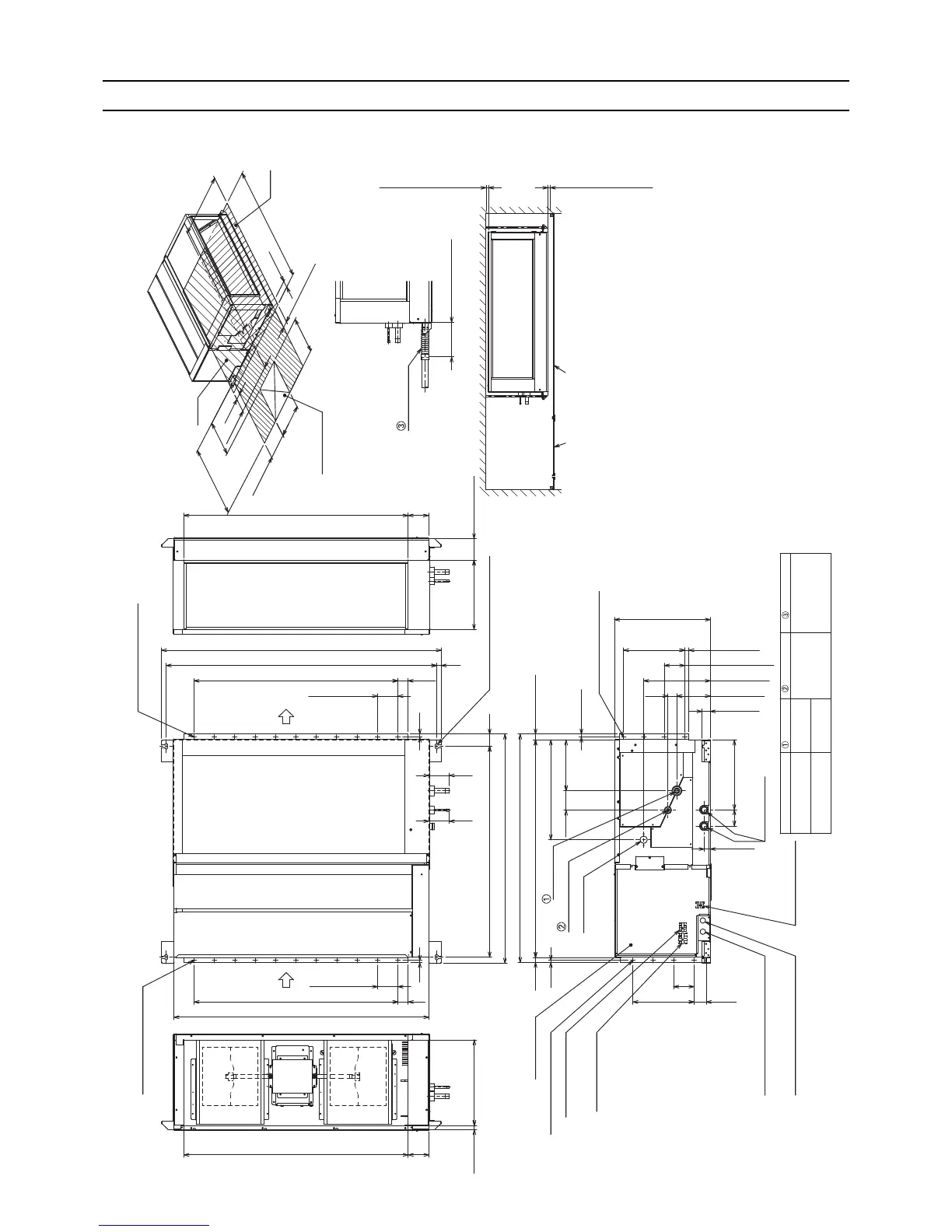

[5] Outlines and Dimensions
Air inlet Air outlet
(DUCT)
(7/16)
(2-3/8)
(3-3/16)
(2-3/8)
(3-15/16x3=11-13/16)
(3-15/16x3=11-13/16)
(1-3/4)
(9-13/16)
(DUCT)
(7/16)
(5/8)
(3-15/16)
(3-15/16)
(15/16)
(3-15/16)
(Actual length)
Drain Piping.
(21-11/16)
(7-7/8~11-13/16)
(17-3/4)
(5-15/16~7-7/8)
(17-3/4)
2X4-ø3(1/8) holes
2X11-ø3(1/8) holes
Drain hole
Drain hole
Control box
(Power source) Terminal block
(MA remocon)
(Transmission wiring)
(Power souse wiring)
(Normal type)
(Option)
(Transmission)
Suspension bolt hole
Terminal blockKnockout hole ø22.2(7/8)
Knockout hole ø22.2(7/8)
Terminal block
4-14X30(9/16x3/16) Slot
2X4-ø3(1/8) holes
2X11-ø3(1/8) holes
Make the access door at the appointed position properly for service maintenance.
Access door Ceiling surface
Access door
Note2
Note3
Required space for service and maintenance.
MODEL
PEFY-P72NMHSU-E PEFY-P96NMHSU-E
ø
19.05(3/4)
ø
22.2(7/8)
ø
9.52(3/8)
Drain hose 32mm (1-1/4inch) <flexible joint> <accessory>
Note 1.Use M10 screw for the suspension bolt (field supply).
2.Keep the service space for the maintenance from the bottom when the heat exchanger is cleaned. 3.Keep the service space for the maintenance from the bottom when the fan motor is changed. 4.Make sure to install the air filter (field supply) on the air intake side. In case field supplied air filter is used, attach it where the filter service is easily done.
Unit:mm(in.)
Unit:mm(in.)
249
95(3-4/3)
342(13-1/2)
80
170(6-3/4±1/4)
23
100
470(18-9/16)
20(13/16)
102(4-1/16)
105(4-3/16)
420(16-9/16)
1100(43-5/16)(DUCT)
1250(49-1/4)
1372(54-1/16)
1124(44-5/16)
15
10
100x10=1000(3-15/16x10=39-3/8)
100(3-15/16)
50(2)
60
1326(52-1/4)(Suspension bolt pitch)
1034(40-3/4)(Suspension bolt pitch)
340(13-7/16)
1100(43-5/16)(DUCT)
100
100
29(1-3/16)
41(1-5/8)
1067(42-1/16)
24(1)
1120(44-1/8)
489(19-5/16)
327(12-7/8)
44 164(6-1/2)
30(1-3/16)
15(5/8)
100X3(=300)
100(3-15/16)
20(13/16)
100(3-15/16)
10
100x3=300 60
100x10=1000(3-15/16x10=39-3/8)
50(2)
100(3-15/16)
More than 20(13/16)
More than 20(13/16)
550
50(2)
150~200
50(2)
50(2)
450
800(31-1/2)
450
200~300
1350(53-3/16)
730(28-3/4)
PEFY-P72,96NMHSU-E
Gas pipe
Liquid pipe
Gas pipe
Liquid pipe
Drain hose
Drain hose
