55- 55 -
HWE10170 GB

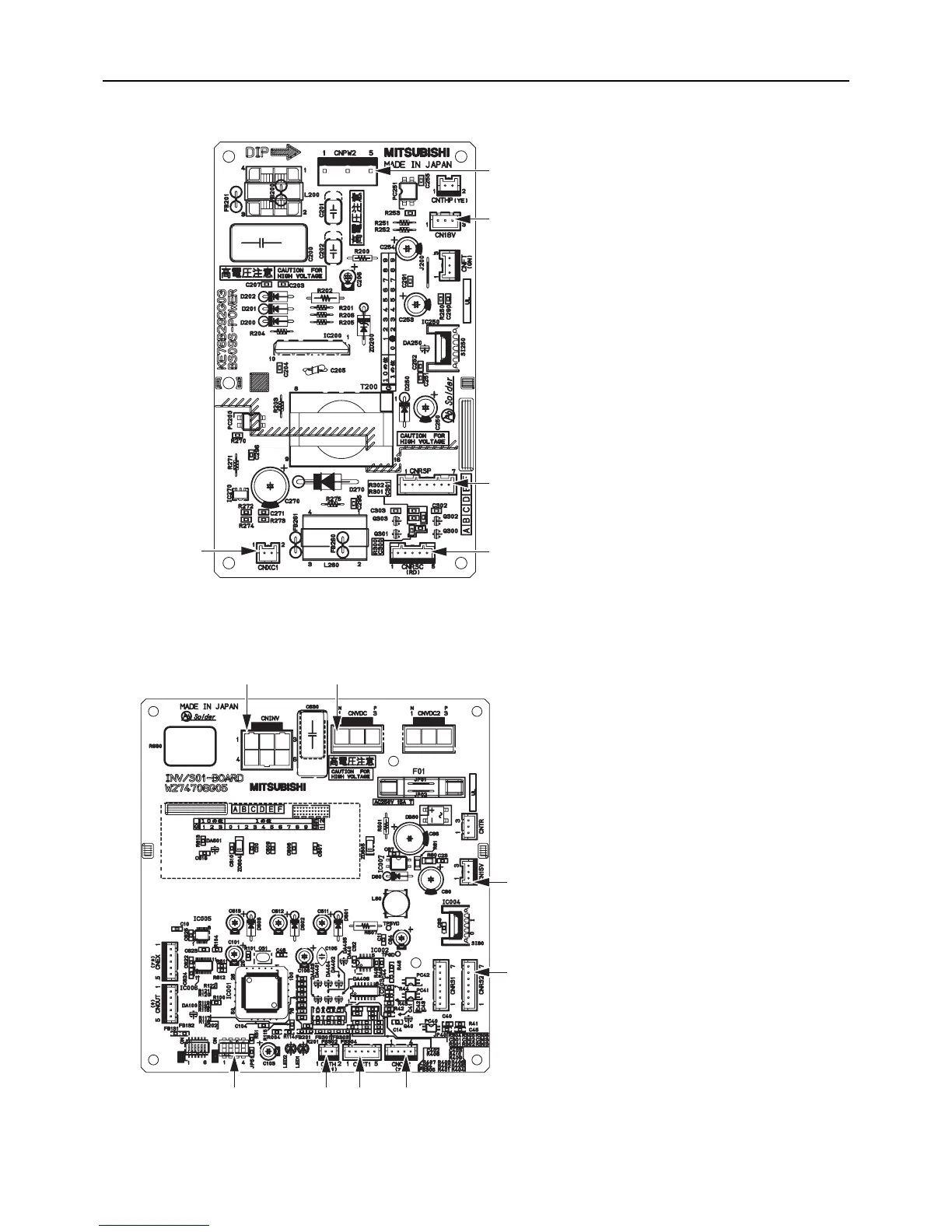

3. Power supply board
4. INV board
CNPW2 Connect to the NF board
CNCX1 Connect to the indoor controller
board
CNRSC Connect to the indoor controller
board
CNRSP Connect to the INV board
CN18V Connect to the INV board
SW2 Inverter function setting
CNVDC Connect to the NF board
CNINV Connect to the FAN motor
(Power line)
CN15V Connect to the Power supply board
CNRS2 Connect to the Power supply board
CNCT1 Connect to the FAN motor
(Rotor position sensor input)
CNCT2 Connect to the Current sensor
CNTH Connect to the Thermistor (heat sink)
CN3A
CN2M
SW4
CN32
SW3
CN41
CN51
CN52
CN20
CN4F
CN44
SWE
SW2
CN100
CN18V
CNPW2
CNRSP
CNRSC
CNXC1
CN3A
CN2M
SW4
CN32
SW3
CN41
CN51
CN52
CN20
CN4F
CN44
SWE
SW2
CN100
CN15V
CNRS2
CNINV
CNVDC
SW2 CNTH CNCT1 CNCT2
