65- 65 -
HWE10170 GB
6. Reactor, fan, and fan motor
Exercise caution when removing heavy parts.
1. Remove the control box cover according to the proce-
dure in section 1. Control box.
2. Removing the fan motor and ACL cable
(1) Disconnect the connector (CNCT1) from the INV
board and connector (CNACL) from the noise filter
board. Then, disconnect the relay connector.
(2) Remove the ground wire on the motor from the white
connector.
(3) Remove the cable through the rubber bush.

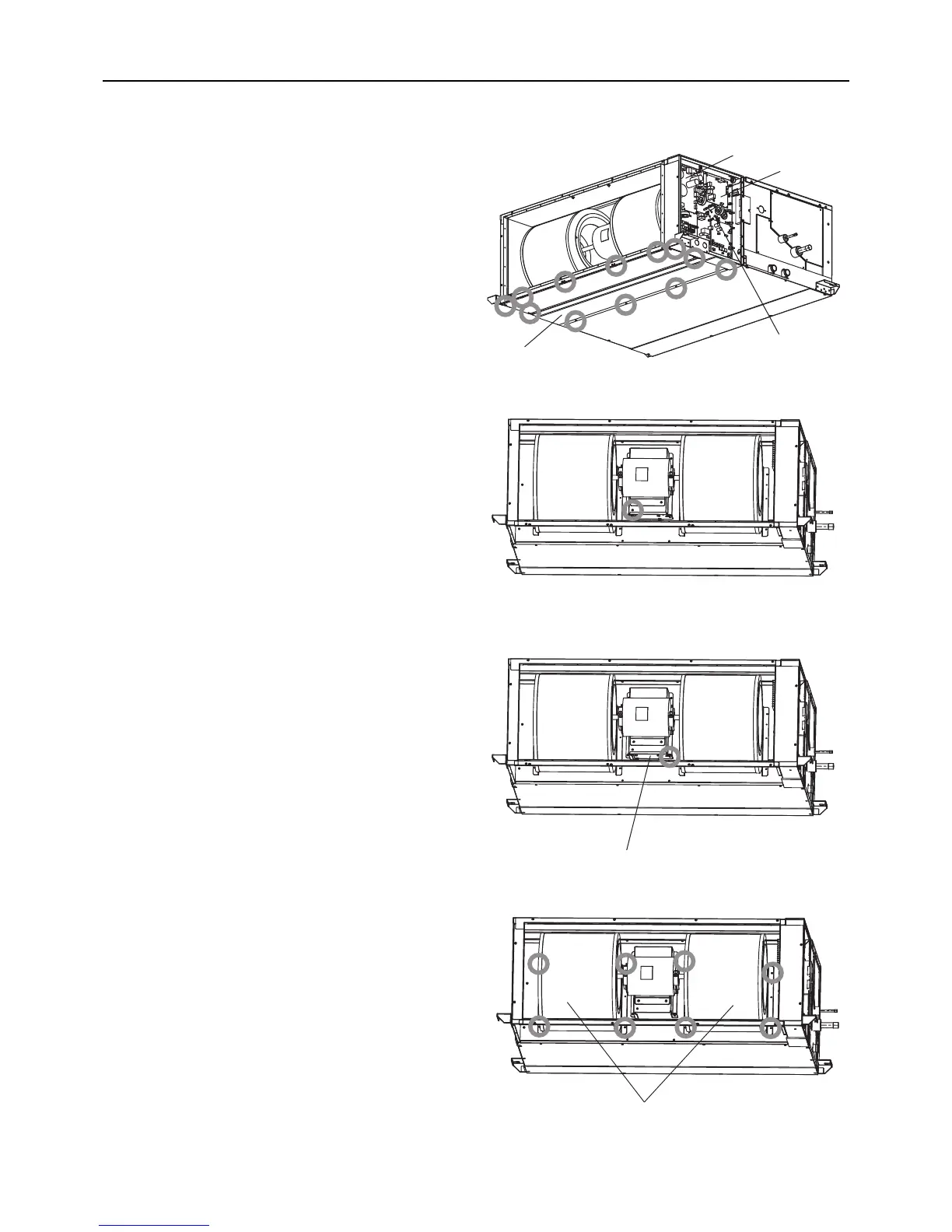

3. Removing the bottom plate
(1) Remove the ten fixing screws on the bottom plate (T)
to remove it.
Fig.10
4. Removing the wiring
(1) Remove a screw that is used to connect the wiring.
Fig.11
5. Removing the reactor
(1) Remove the two fixing screws on the reactor base (U)
to remove it.
Fig.12
6. Removing the fan case
(1) Remove the eight fixing screws on the fan case (V) to
remove it.
Fig.13
To Next Page
