4. Drainpan
Exercise caution when removing heavy parts.

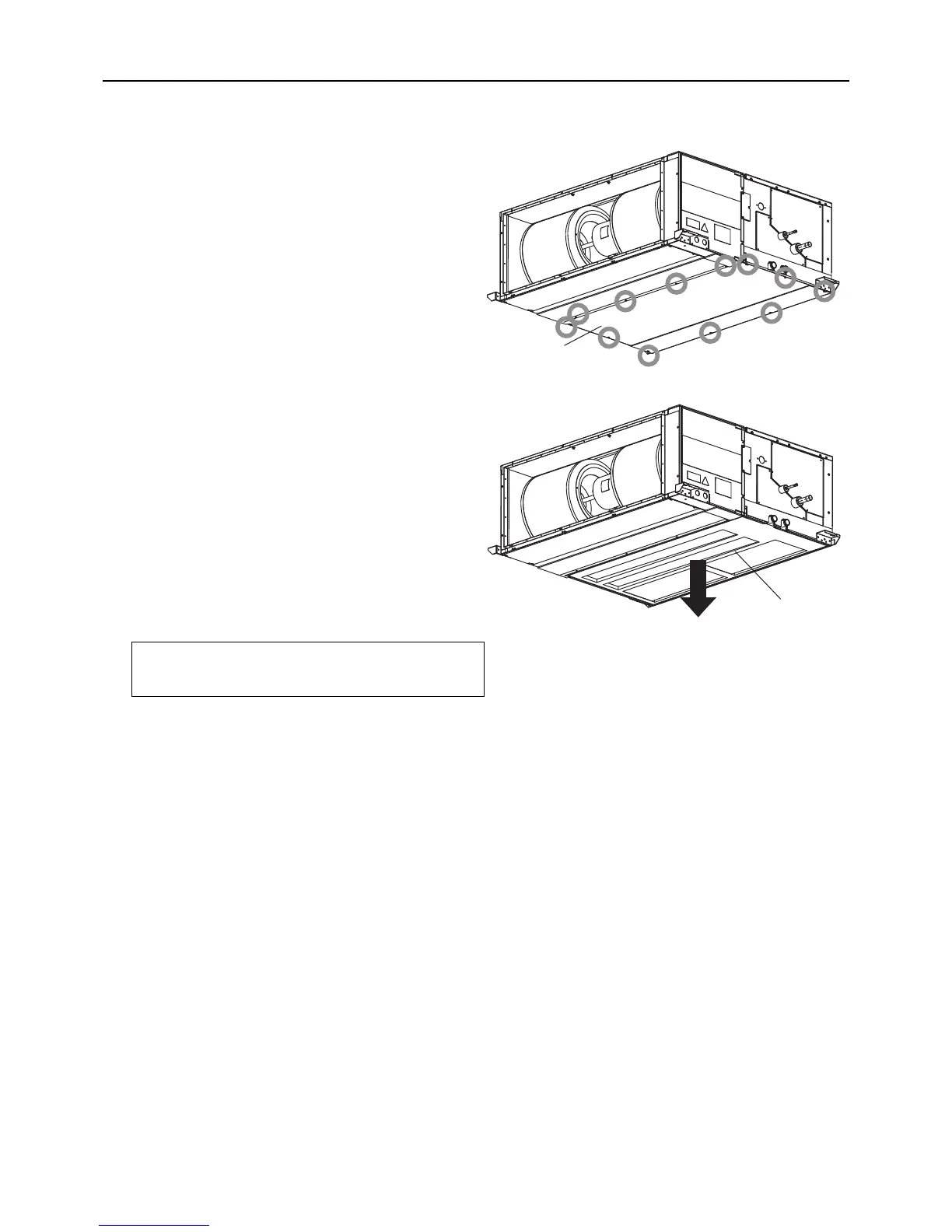

1. Removing the bottom plate
(1) Remove the twelve fixing screws on the bottom plate
(L) to remove it.
Fig.6
2. Removing the drainpan
(1) Pull out the drain pan (M) in the direction of the arrow.
Fig.7
Note
Drain the water out of the drain pan before
removing it.
(L)
(M)
