The CC-Link interface block FX3U-64CCL (hereinafter called 64CCL) is a special function block to connect
the FX
3G/FX3U/FX3UC Series programmable logic controller to a CC-Link network.
The 64CCL works as an intelligent device station on a CC-Link network.
Only one 64CCL unit can be connected to a single programmable logic controller main unit.
• Compatible with CC-Link Ver. 2.00 and Ver. 1.10
The 64CCL is compatible with CC-Link Ver. 2.00, and enables expanded cyclic transmission to facilitate
the handling of applications requiring multiple data processing.
Ver. 1.10 is also supported by the 64CCL.
• When accessing the FX
3U/FX3UC main unit from another station QCPU (Q mode) with
GX Developer (Ver. 8.72A or later) is required. Access is carried out by the QCPU (Q mode) connected to
the FX
3U/FX3UC main unit via CC-Link.

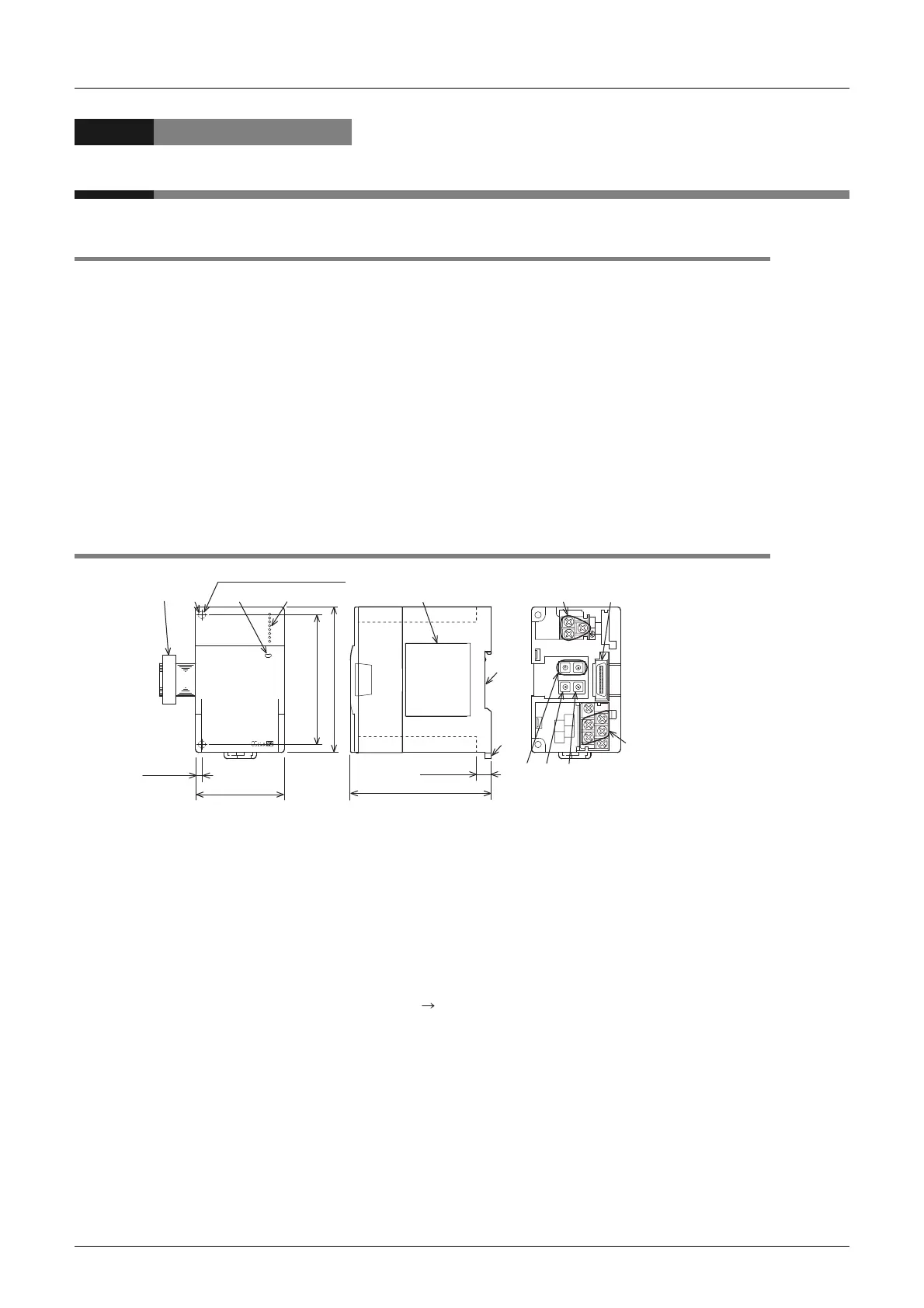

1.2 External Dimensions and Part Names
[1] Extension cable
[2] Direct mounting hole: 2 holes of 4.5 (0.18") (mounting screw: M4 screw)
[3] POWER LED (green)
[4] Status LEDs
Refer to Section 1.4
[5] Name plate
[6] DIN rail mounting groove (DIN rail: DIN46277, 35mm (1.38") width)
[7] DIN rail mounting hook
[8] Power supply terminal block
[9] Extension connector
[10] CC-Link connection terminal block
[11] Number of occupied stations and expanded cyclic setting switch
[12] Transmission rate setting switch
[13] Station number setting switch
FX 3U -64CCL
POWER
RUN
ERR.
RUN
ERR.
SD
RD
L
L
FX3U-64CCL
24-
24+
DA DB
DG SLD
STATION
NO.
COM
SETTING
B RATE STATION
10
1
X
X
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
80(3.15")
(mounting hole pitch)
55(2.17")
4(0.16")
[1] [3]
2-φ4.5 mounting holes
[2] [4]
90(3.55")
87(3.43")
[6]
9(0.36")
[10]
[8] [9]
[11][12]
[7]
Without top cover
[5]
Unit: mm (inches)
MASS (Weight): 0.3kg (0.66lbs)
Accessories: Label for indication of
special unit/block number,
Dust Proof sheet,
Manual supplied with product
[13]
