2.4.3 The accessing path to the FX3U/FX3UC from another QCPU (Q mode) controller.
From the master station/local station of the QCPU (Q mode), the FX3U/FX3UC programmable logic controller
main unit can be accessed. The communication path of CC-Link is illustrated as follows.

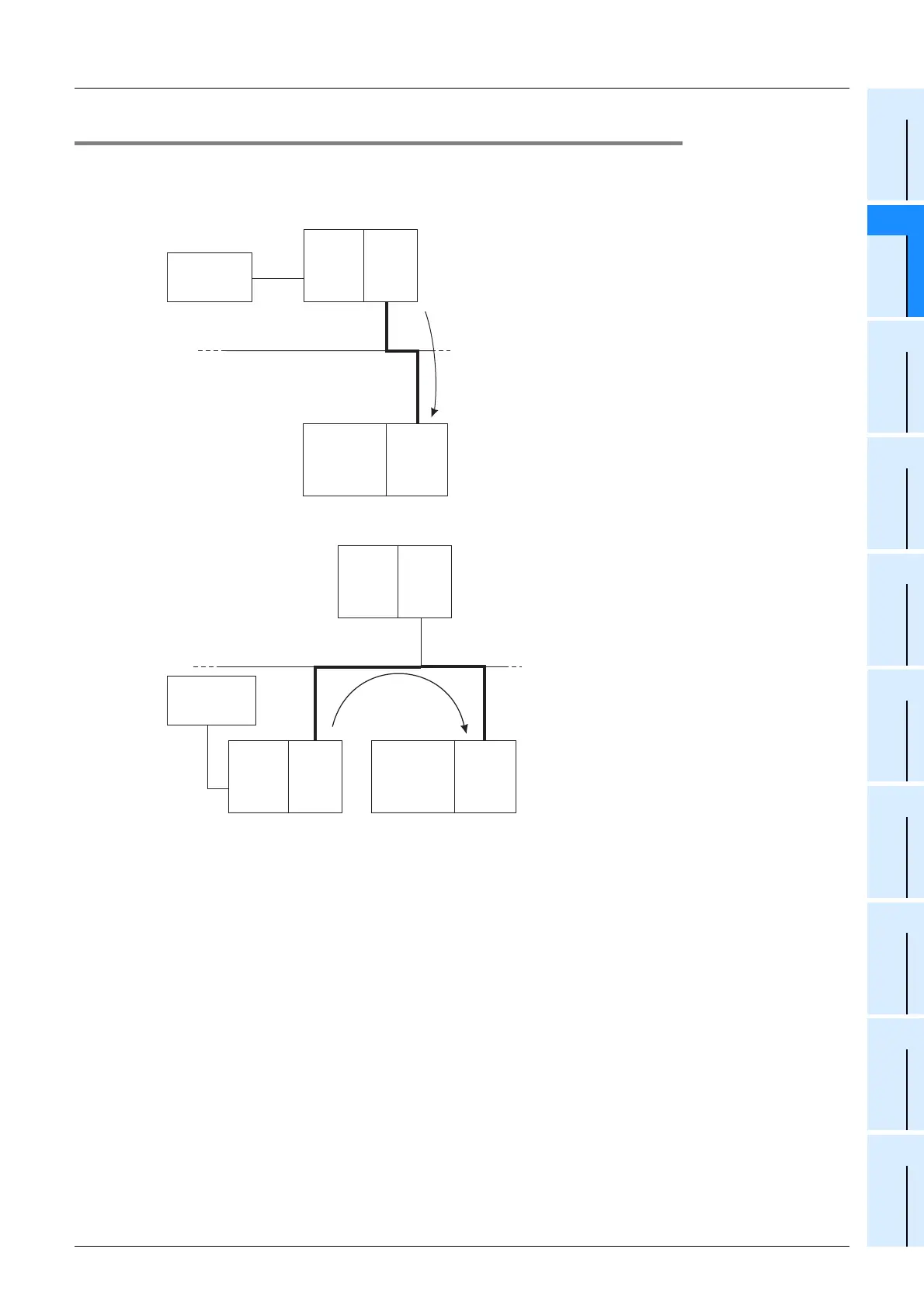

1) The path when accessing from the master QCPU (Q mode) station
2) The path when accessing from a local QCPU (Q mode) station
PC
GX Developer
Direct
coupling
QCPU
(Q mode)
Q
master
station
CC-Link
FX
3U /FX 3UC
main unit
FX 3U -
64CCL
PC
GX Developer
Direct
coupling
QCPU
(Q mode)
Q
master
station
CC-Link
FX
3U /FX 3UC
main unit
FX 3U -
64CCL
