8 Program Example
8.1 System configuration
53
FX3U-64CCL User's Manual
1
Introduction
2
Specification and function
3
System Configuration
4
Installation
5
Wiring, Start-up procedure
6
FX
3U
-64CCL
setting (switch setting)
7
Buffer Memory
8
Program Example
9
Troubleshooting
A
Version Information

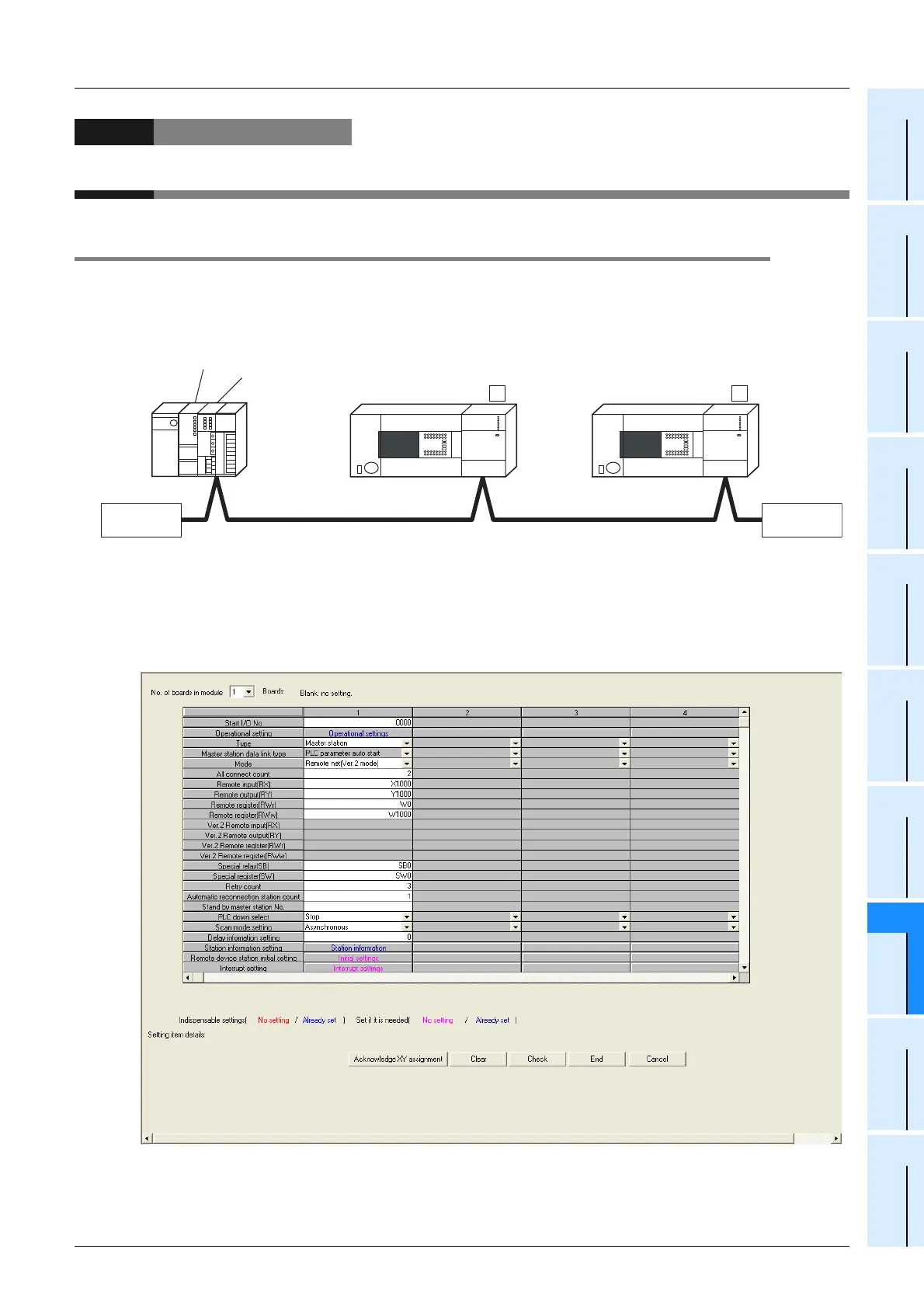

8. Program Example
8.1 System configuration
The system configuration shown below explains the sample program.
1) Preparation
a) Set the station number, mode, transmission and condition settings for the master station.
→ For details, refer to the master unit manual.
The settings, as shown in the following figure, are configured in GX Developer.
•Example 1 for the master station settings
Q02HCPU
QJ61BT11N
QY10
(Y20~3F)
FX
3U main unit
Q62P
FX
3U main unit FX3U-64CCL
Master station
(Station number 0)
Ver.2 intelligent device station
occupies 4 stations, double
(Station number 1)
Ver.1 intelligent device station
occupies 2 stations, single
(Station number 5)
CC-Link dedicated cable
B
FX3U-64CCL
A
0 1 2 3 4 5 6 7
8 9 A B C D E F
Terminating
resistor
Terminating
resistor
