Mitsubishi FX3U-64CCL User Manual

3 System Configuration
3.2 CC-Link network configuration
19
FX3U-64CCL User's Manual
1
Introduction
2
Specification and function
3
System Configuration
4
Installation
5
Wiring, Start-up procedure
6
FX
3U
-64CCL
setting (switch setting)
7
Buffer Memory
8
Program Example
9
Troubleshooting
A
Version Information

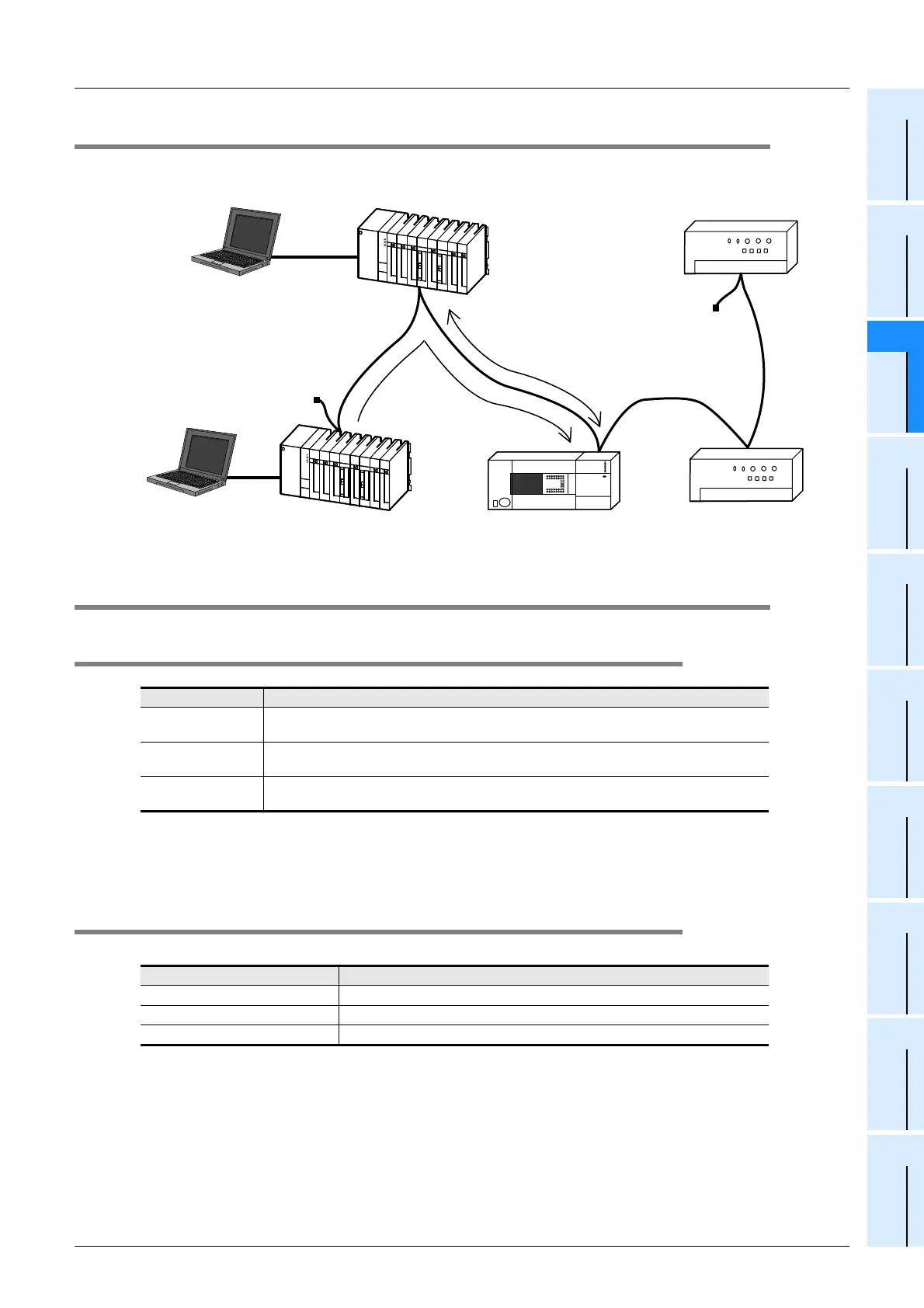

3.2 CC-Link network configuration
3.3 Applicable PLC
3.3.1 Connectable PLC
The version number can be checked by monitoring the last three digits of D8001.
*1. An FX
2NC-CNV-IF or FX3UC-1PS-5V is necessary to connect the 64CCL with the FX3UC PLC.
3.3.2 Corresponding Q Series controllers when accessing via another station QCPU (Q
mode)
CC-Link system master / local unit QJ61BT11N is required.
Model name Applicability
FX3G Series PLC
Ver. 1.00 (from the first product) and later
Only one 64CCL unit can be connected to a main unit.
FX3U Series PLC
Ver. 2.20 (from the first product) and later
Only one 64CCL unit can be connected to a main unit.
FX
3UC Series PLC
*1
Ver. 2.20 (from products manufactured in May, 2005 with SER No. 55****) and later
Only one 64CCL unit can be connected to a main unit.
QCPU(Q mode) series name Corresponding model name
Basic model QCPU Q00JCPU,Q00CPU,Q01CPU
High performance model QCPU Q02CPU,Q02HCPU,Q06HCPU,Q12HCPU,Q25HCPU
Universal model QCPU Q02UCPU,Q03UDCPU,Q04UDHCPU,Q06UDHCPU,Q13UDHCPU,Q26UDHCPU
Master station
Local station
FX
3G/FX3U/FX3UC PLC FX3U-64CCL
Intelligent device station
Cyclic transmission
Expanded cyclic transmission
Remote device station
Remote I/O station
Terminating resistor
(indispensable)
Terminating resistor
(indispensable)
PC
PC
GX Developer
GX Developer
Accessing
via QCPU
