5 Wiring, Start-up procedure

5.4 Screw size and tightening torque

FX3U-64CCL User's Manual

5.4 Screw size and tightening torque

5.4.1 Terminal screw size and tightening torque

The power terminals and CC-Link connection terminals on the 64CCL use M3 screws.

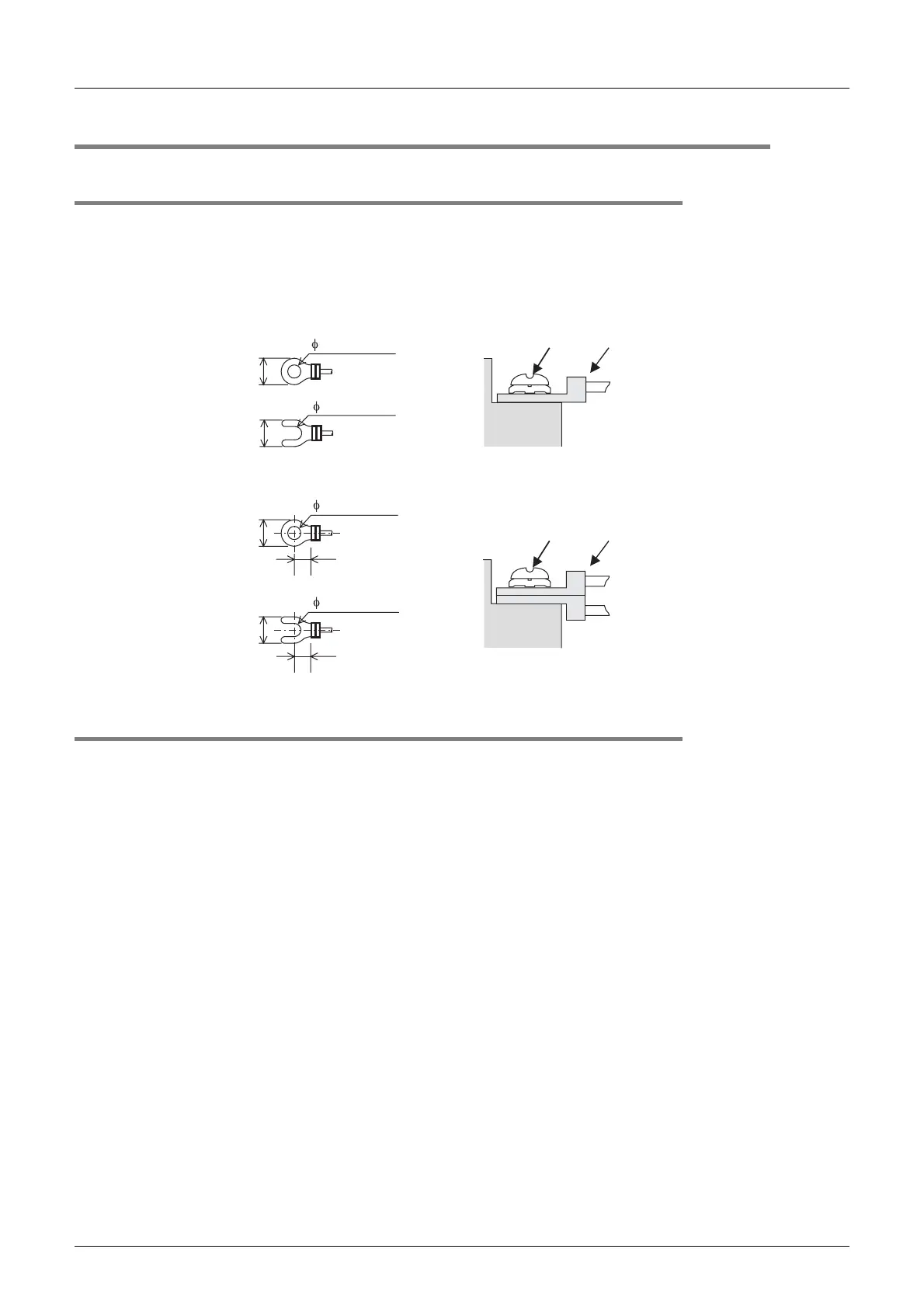

Refer to the figures below for cable end treatment.

Set the tightening torque to 42 to 58 N•cm.

• When one wire is connected to one terminal

• When two wires are connected to one terminal

5.4.2 Terminal block mounting screw size and tightening torque

The CC-Link connection terminal block of the 64CCL can be removed.

(Black) mounting screws for the CC-Link connection terminal block are M3.5 size.

Set the tightening torque to 66 to 91 N•cm.

Terminal

screw

Crimp

terminal

6.2mm(0.24")

or less

3.2(0.13")

6.2mm(0.24")

or less

3.2(0.13")

Terminal

screw

Crimp

terminal

Terminal

6.2mm(0.24")

or less

3.2(0.13")

6.3mm(0.25")

or more

6.2mm(0.24")

or less

3.2(0.13")

6.3mm(0.25")

or more
