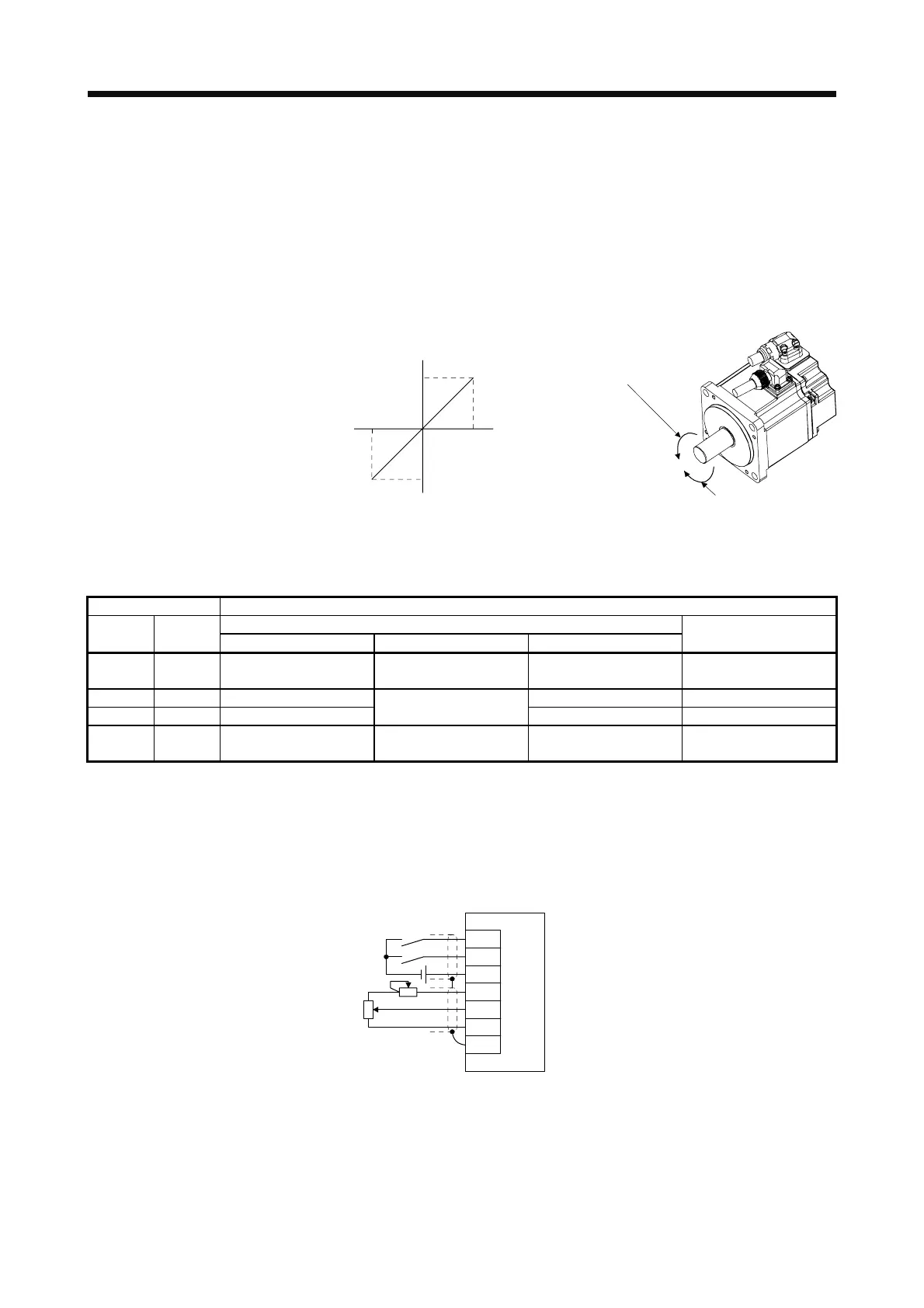

3.6.2 Speed control mode
(1) Speed setting
(a) Speed command and speed
The servo motor is run at the speeds set in the parameters or at the speed set in the applied voltage
of VC (Analog speed command). A relation between VC (Analog speed command) applied voltage
and the servo motor speed is as follows.
Rated speed is achieved at ±10 V with initial setting. The speed at ±10 V can be changed with [Pr.
PC12].
Speed
[r/min]
CW
direction
Rated speed [r/min]
Rated speed [r/min]
0
CCW direction
+10
-10
VC applied voltage [V]
Forward rotation
(CCW)
Reverse rotation
(CW)
The following table indicates the rotation direction according to ST1 (Forward rotation start) and ST2
(Reverse rotation start) combination.
(Note 1) Input device (Note 2) Rotation direction
VC (Analog speed command)
ST2 ST1
Polarity: + 0 V Polarity: -
Internal speed command
0 0
Stop
(servo-lock)
Stop
(servo-lock)
Stop
(servo-lock)
Stop
(servo-lock)
0 1 CCW CW CCW
1 0 CW
Stop
(no servo-lock)
CCW CW
1 1
Stop
(servo-lock)
Stop
(servo-lock)
Stop
(servo-lock)
Stop
(servo-lock)
Note 1. 0: Off
1: On
2. If the torque limit is canceled during servo-lock, the servo motor may suddenly rotate according to position deviation in respect
to the command position.
Normally, connect as follows.
Japan resistor
RRS10 or equivalent
ST2
DICOM
P15R
VC
LG
SD
Servo amplifie
r
ST1
(Note)
2 kΩ
2
kΩ
24 V DC
Note. This diagram shows sink I/O interface. For source I/O interface, refer to section 3.9.3.
