Chapter 2 NAME OF PARTS
Equipment and Instrument
The installed equipment and shapes vary with specifications.
Start and Stop Instrument
Manual Stop Lever
A manual stop lever is equipped so that you can stop
the engine in the event of an emergency and also for
the use when the engine will not stop by the stop but-
ton.
You can stop the engine by moving the manual stop
lever, which is located in the fuel control link, in the
"STOP" direction.
If the engine continues to run even after the manual
stop lever is moved to the "STOP" position, cut off the
fuel supply to the engine.

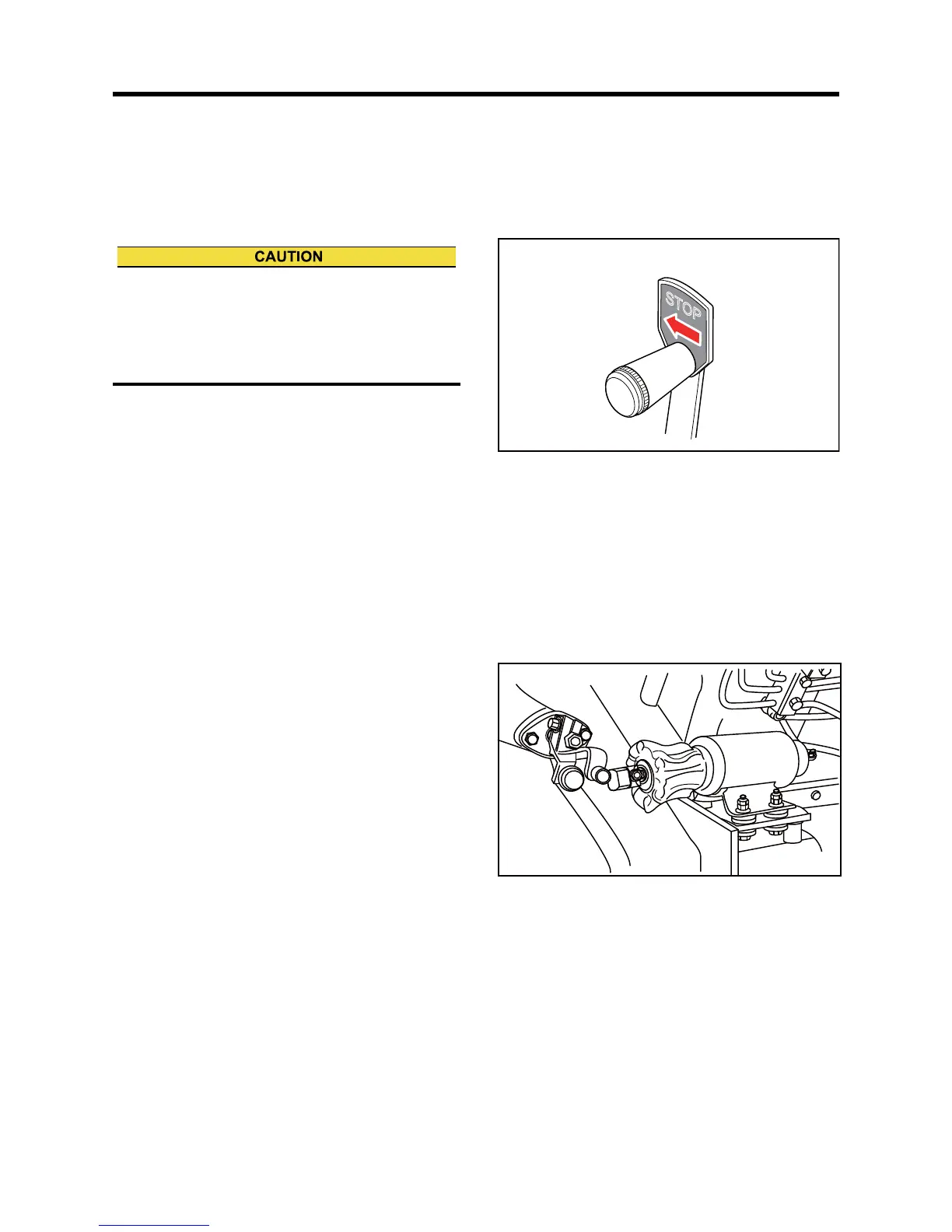

Fig. 2-5 Manual Stop Lever
Stop Solenoid
The stop solenoid is used for normal shutdown of
engine operation.
The stop solenoid moves the rack of fuel injection
pump to cut the fuel so that the engine stops.
The RUN ON type stop solenoid is equipped in this
engine. The stop solenoid is energized while the
engine is running. To stop the engine, it is de-ener-
gized by breaking contact between governor power
and electrical circuit.
Fig. 2-6 Stop Solenoid
When stopping the engine with manual stop lever,
keep the manual stop lever at the stop position until
the engine completely stops. If you release the lever
before the engine completely stops, the engine may
restart.
