Chapter 8 PERIODIC INSPECTION AND MAINTENANCE PROCEDURES
Fuel Control Link Ball Joint - Inspect
Check ball joint in the fuel control link for looseness or
sluggish movement. If the amount of looseness is 0.1
mm [0.004 in.] or more, replace the ball joint with the
new one.
If the ball joints are integrated with the control link,
replace the control link assembly. When installing ball
joints, be sure to tighten the nuts firmly.

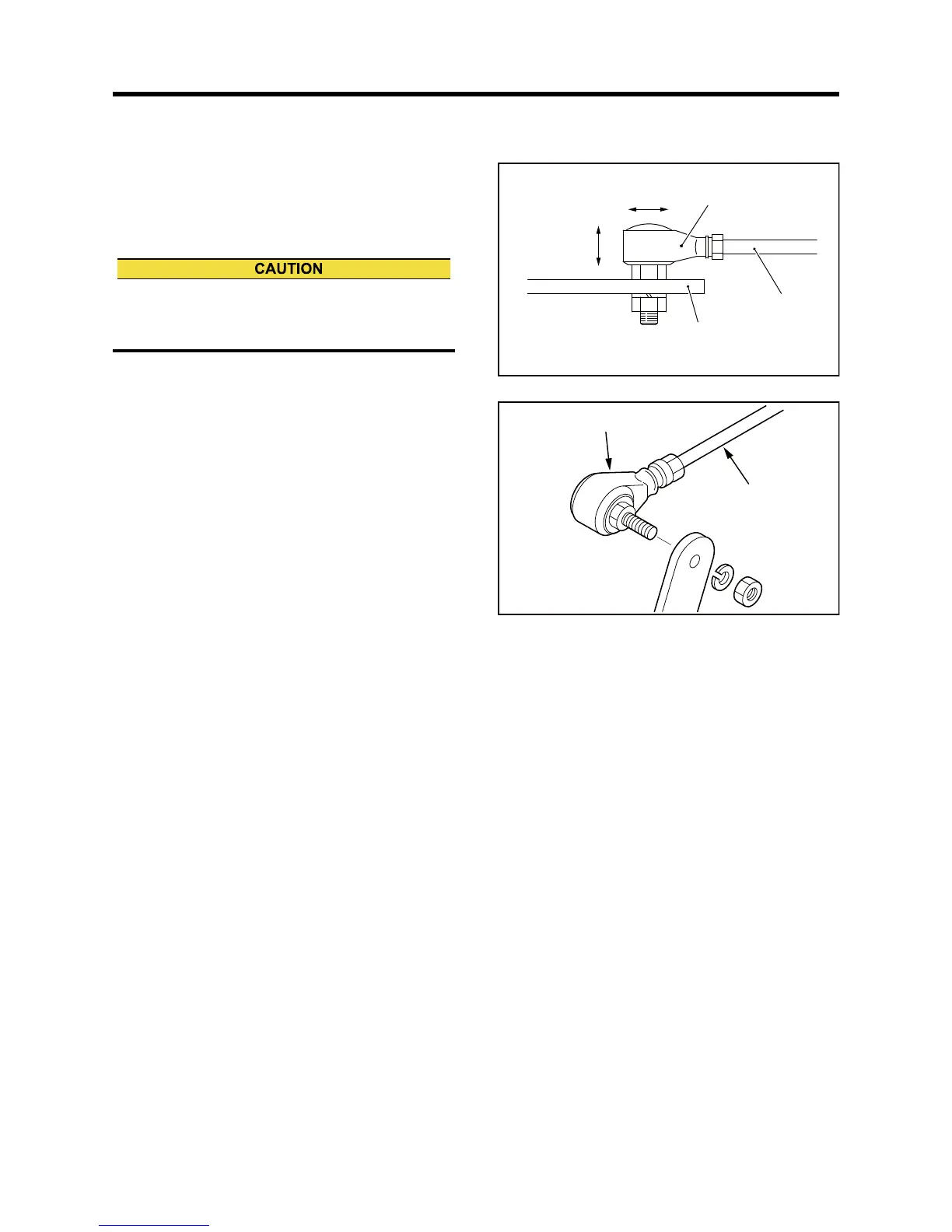

Fig. 8-11 Ball Joints Looseness - Inspect
Fig. 8-12 Fuel Control Link - Remove
If the sealed ball joints are found loosened, contact
your local dealer. If the seal on the ball joint is bro-
ken, the engine is no longer covered under warranty.
Ball joint
Rod
Lever
0.1 mm
[0.004 in.]
0.1 mm
[0.004 in.]
Ball joint
Control link
