2-6
Chapter 2 NAME OF PARTS

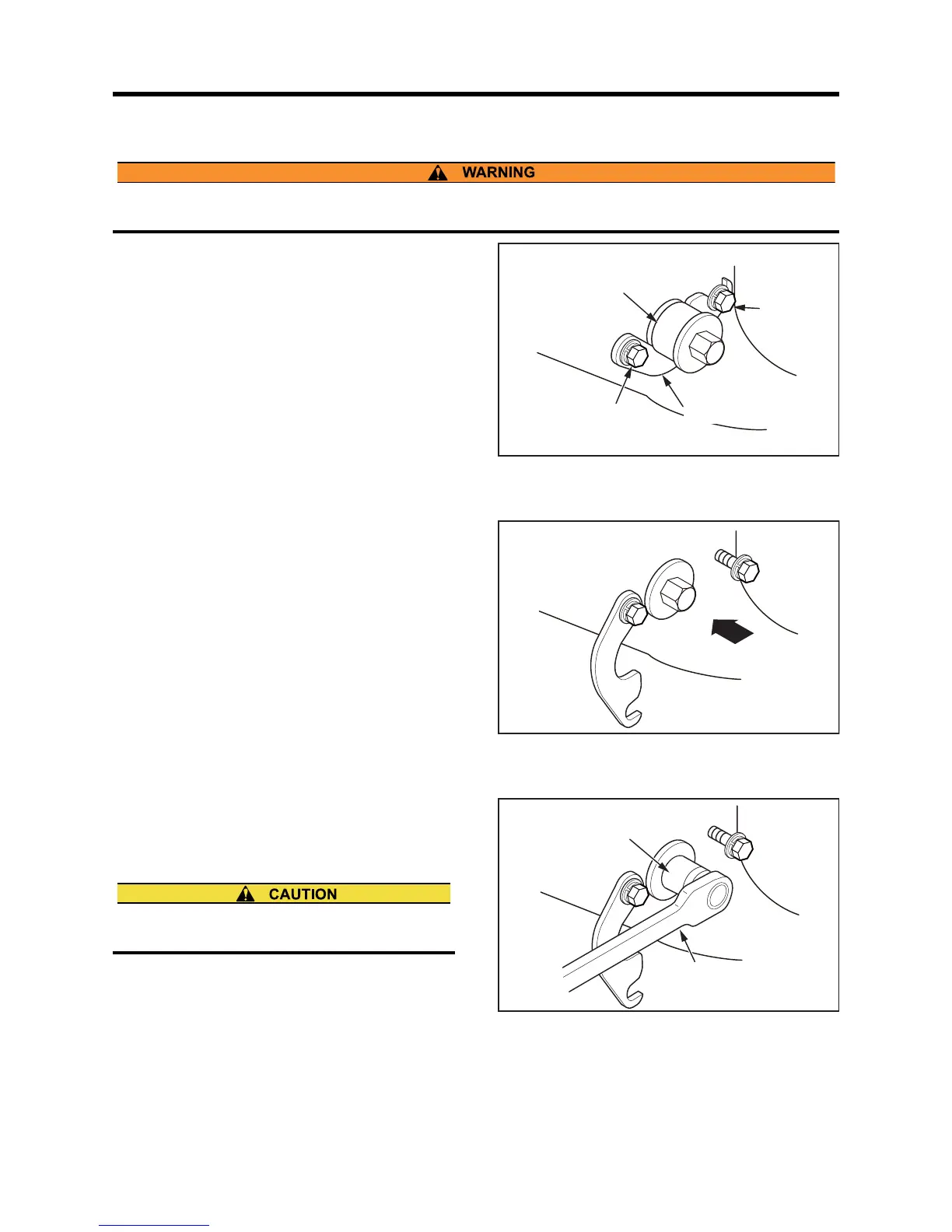

Using Manual Turning Gear
1. Loosen two bolts, and remove the plate from the
shaft groove.
Fig. 2-11 Manual Turning Gear Position
(While Engine is Running)
2. Push the shaft fully to engage it with the ring gear.
Fig. 2-12 Manual Turning Gear Position
(When Pushing Shaft in)
3. Using a socket wrench and a ratchet handle, turn
the shaft.
4. After turning, pull out the shaft, insert the plate in
the shaft groove, and tighten the bolts.
Fig. 2-13 Manual Turning Gear Position
(When Turning Shaft)
Before starting the engine, make sure that the turning gear is pulled out in the original position. Starting the engine
with the turning gear pushed in not only damages the ring gear but also may result in personal injury.
Bolt
Bolt
Plate
Shaft
Make sure the plate is securely installed in the shaft
groove.
Socket
Ratchet handle
To Next Page
