6809456A82 January 23, 2003 25
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Endo Housing
1. Remove the rear housing cover, and SIM as described in the procedures.
2. Insert the plastic disassembly tool between the front housing and the endo
housing to release the endo housing catches along the sides of the front housing
as shown in Figure 8.
3. Lift the endo housing out of the front housing.
4. To replace, align the endo housing with the front housing.
5. Carefully and gently lower the endo housing into the front housing until the
catches along the sides of the front housing snap into position.
G
Other C330 series phone housings appear differently. The endo housing removal
procedure is essentially the same for each type of housing.
021027o

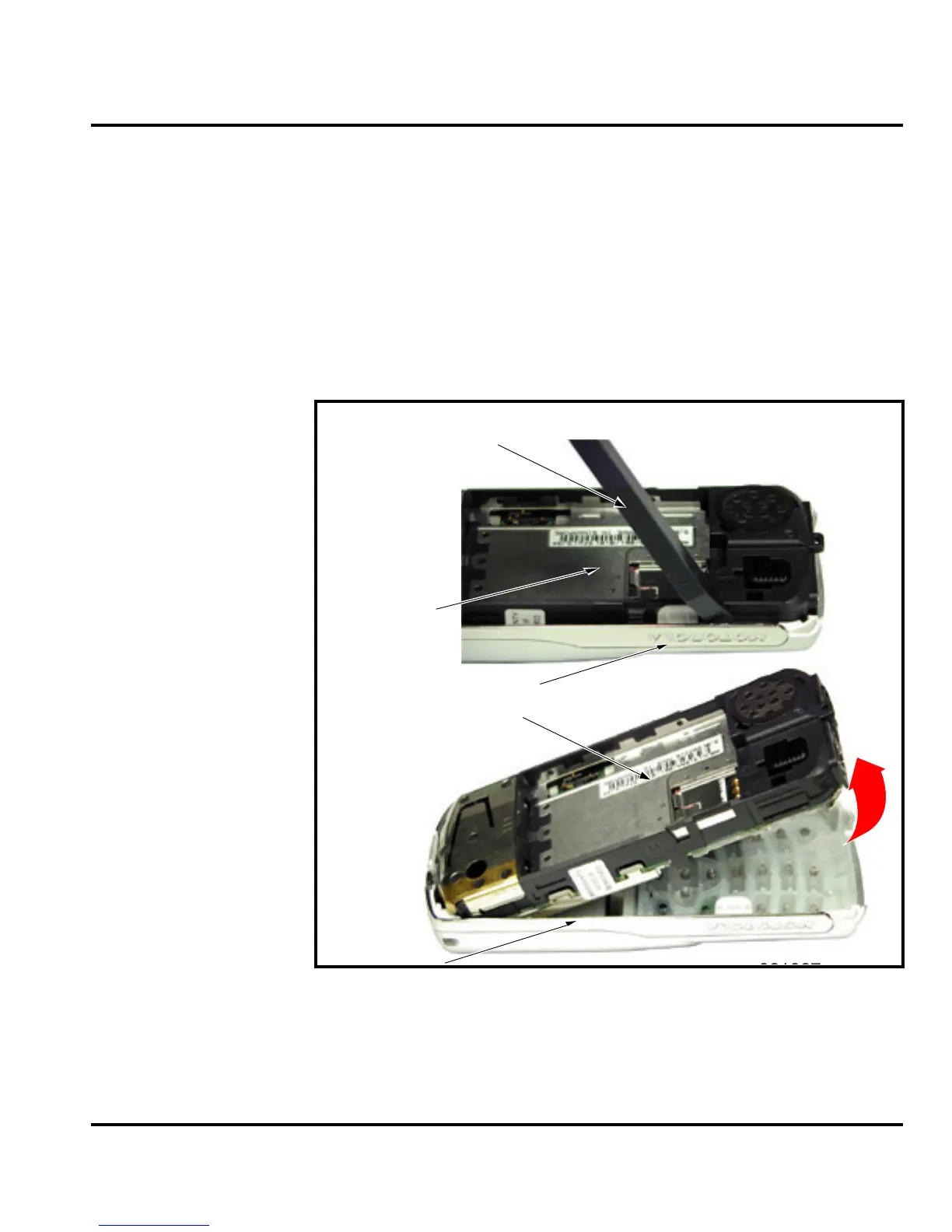

Figure 8. Removing the Endo Housing
ENDO HOUSING
DISASSEMBLY
TOOL
ENDO HOUSING
FRONT HOUSING
FRONT HOUSING
