Motorola C350 Series Service Manual

26 January 23, 2003 6809456A82
Disassembly C350 Series
Removing and Replacing the Front Endo Housing
1. Remove the rear housing cover, SIM, battery, endo housing as described in the
procedures.
2. Using the Torx driver and a T-6 bit, remove the 6 screws shown in Figure 9A.
Set the screws aside for reuse.
3. Using the disassembly tool, release the latches along the two sides and on the
end of the phone as shown in Figure 9.
4. Carefully separate the rear endo housing from the front endo housing.
5. To replace, align the front endo housing to the rear endo housing.
6. Carefully and gently press the front and rear endo housing together until the
two parts snap into position.
7. Insert and tighten the 6 screws in the sequence indicated by the arrows in
Figure 9A to a torque setting of 2.0 kgf. Do not overtighten.
8. Replace the endo housing, battery, SIM, and rear housing covers as described
in the procedures.
021028o

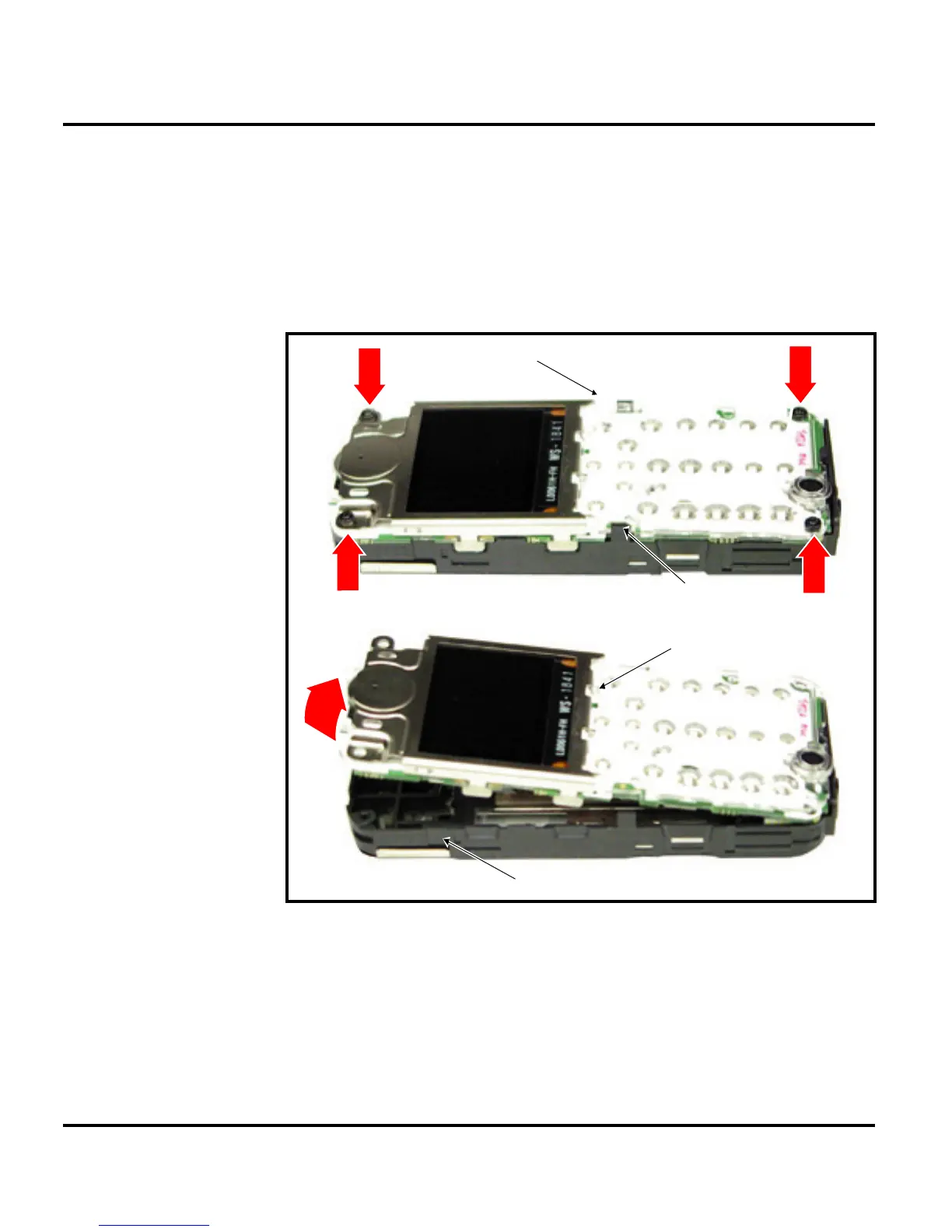

Figure 9. Removing the Front Endo Housing
LATCH
LATCH
REAR ENDO HOUSING
FRONT ENDO HOUSING
