Motorola C350 Series Service Manual

6809456A82 January 23, 2003 27
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Display Assembly
1. Remove the rear housing cover, SIM, endo assembly, front endo housing, and
battery, as described in the procedures.
2. Use the disassembly tool to carefully release the 4 metal display latches on
each side of the display assembly as shown in Figure 10.
3. Carefully lift the display assembly away from the transceiver board as shown
in Figure 10.
4. To replace, align the display assembly with the printed circuit board.
5. Gently press the display assembly latches into position while holding the
display assembly in position.
6. Replace the front endo housing, endo assembly, SIM, battery, rear housing
cover as described in the procedures.
021030o

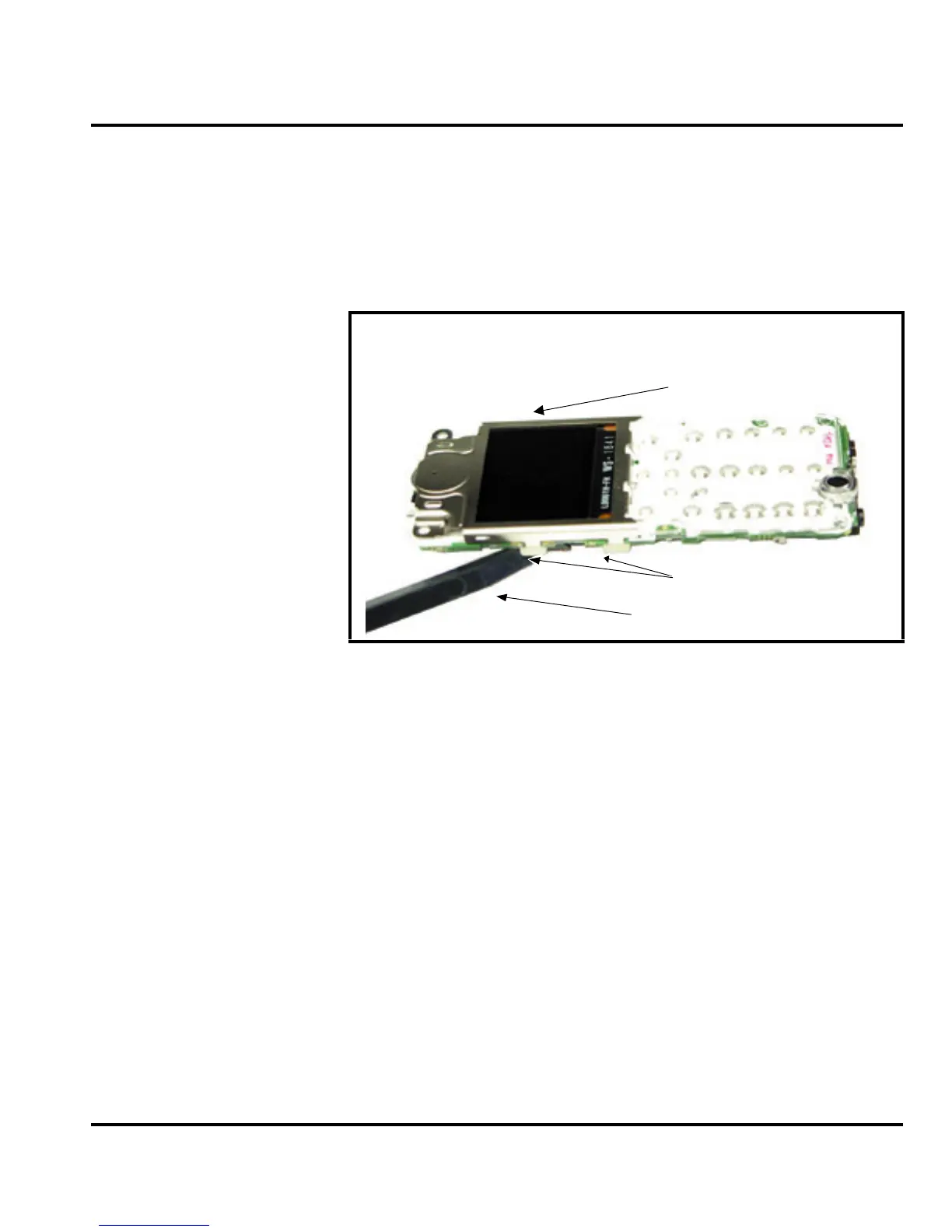

Figure 10. Removing the Display Assembly
DISPLAY ASSEMBLY LATCH
DISPLAY ASSEMBLY
DISASSEMBLY
TOOL
