Motorola C350 Series Service Manual

30 January 23, 2003 6809456A82
Disassembly C350 Series
7. Replace the display assembly, battery, front endo housing, endo assembly,
SIM, and rear housing cover, as described in the procedures.
Removing and Replacing the Rear Speaker
1. Remove the rear housing cover, SIM, endo assembly, and front endo housing
as described in the procedures.
2. Use the metal tweezers to gently release the 3 clips that secure the speaker.
3. Carefully pry the rear speaker out of its socket in the rear endo housing as
shown in Figure 13. Avoid damage to the speaker clips.
4. To replace, carefully press the speaker into position.
5. Ensure the speaker elastomer is seated correctly with the red bar facing up.
6. Replace the front endo housing, endo assembly, battery, SIM, and rear housing
as described in the procedures.
021032o

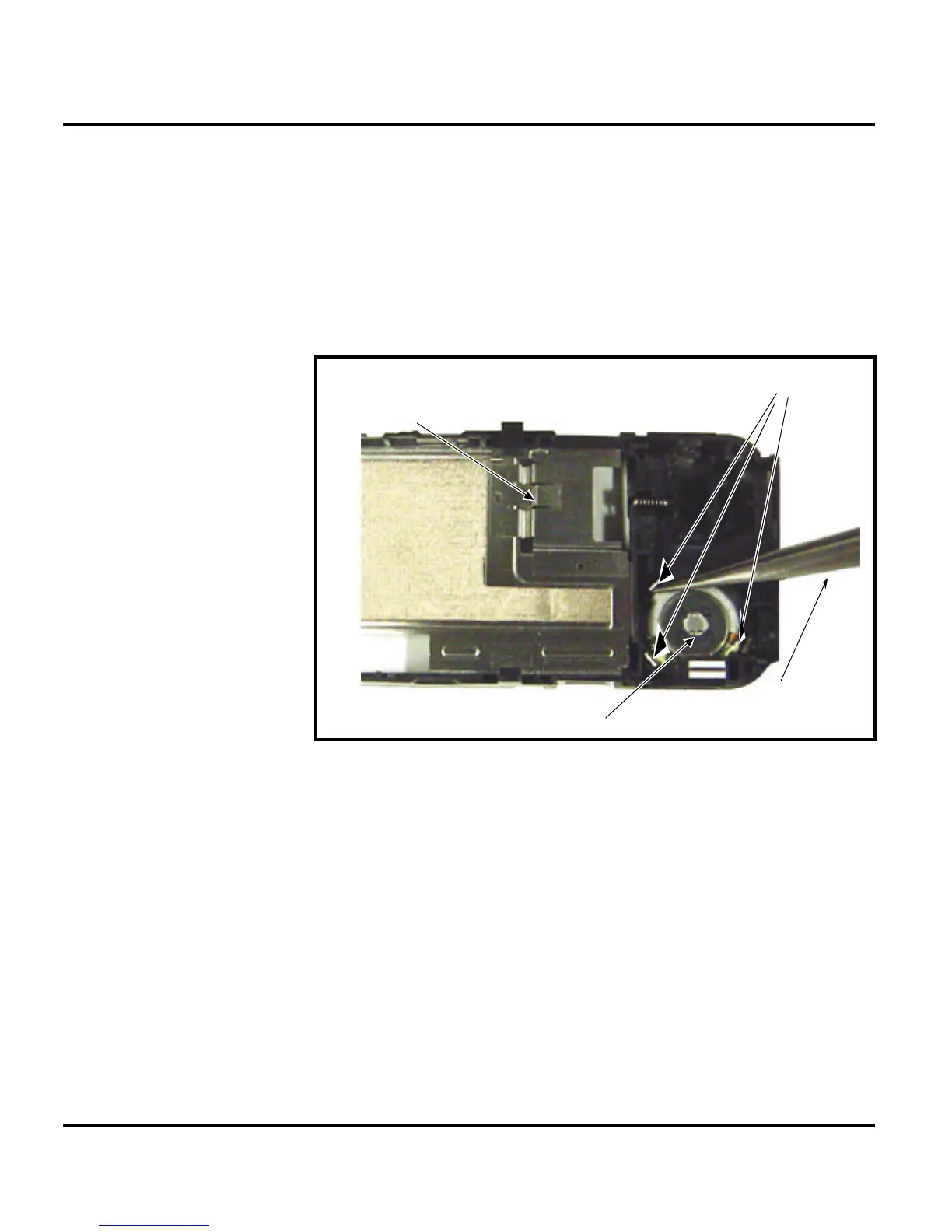

Figure 13. Removing the Rear Speaker
CLIP
METAL TWEEZERS
REAR SPEAKER
REAR ENDO HOUSING
1
