BASIC LEVEL TEST MODES AND PROCEDURES: Connecting the Unit to the RSS Workstation
68P80400P73-A 6-9
6.5 Connecting the Unit to the RSS Workstation
Some technician tests enter programming information into the unit. To perform these tests, the unit
must be correctly connected to the test equipment.
Recommended equipment: data cable RS232 (NKN6560A) or USB data cable (NKN6559A),
computer workstation with RSS installed.
NOTE: For a list of recommended programming equipment, applicable part numbers, and
descriptions, refer to Appendix A: Ordering Replacement Parts and Kits.
To prepare the unit for both codeplug and subscriber code programming using the
data cable (Figure 6-1):
1. Attach the 17-pin connector on the data cable to the corresponding connector located at the base
of the unit.
2. Attach the other end of the data cable to the serial port or USB port on the RSS computer
workstation that is used for testing purposes.

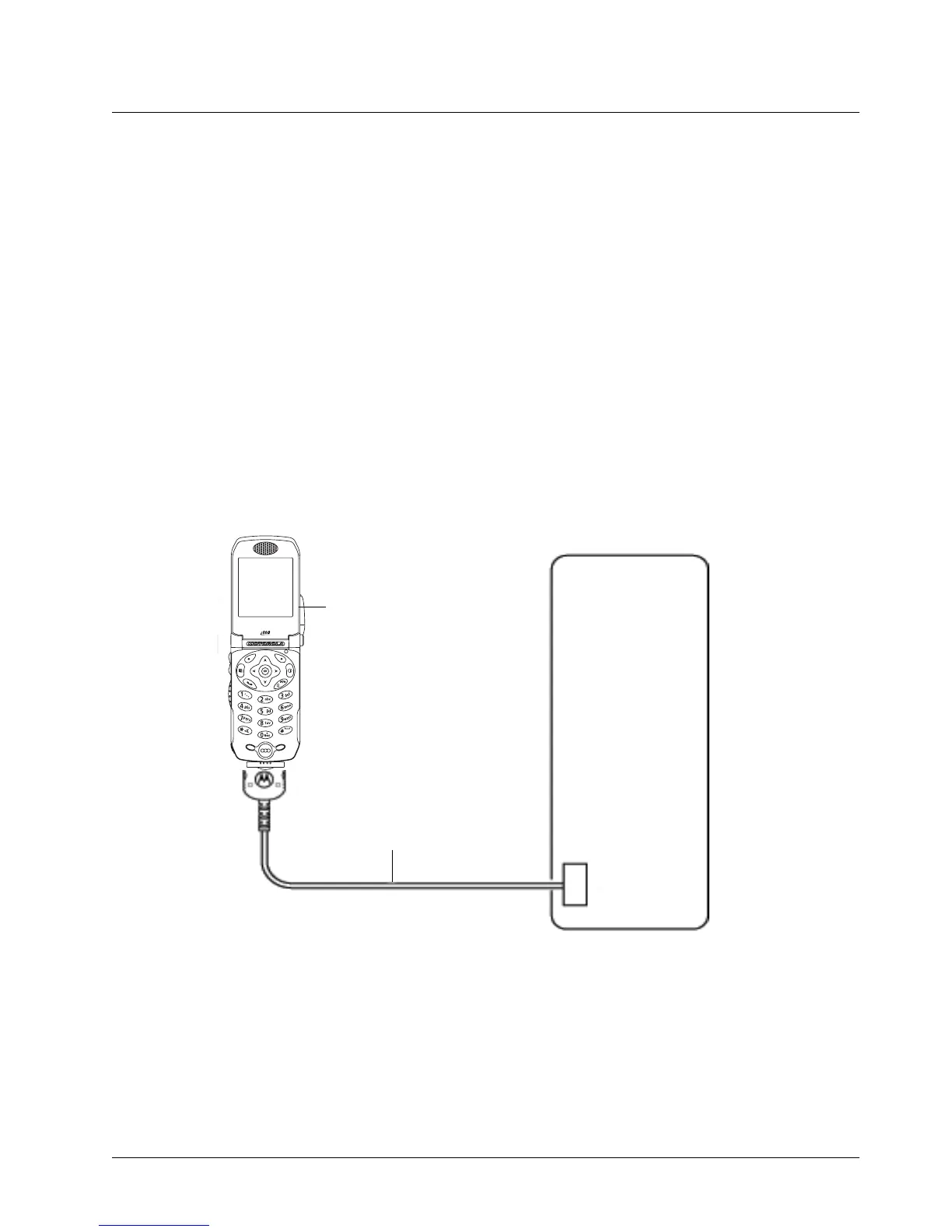

Figure 6-1. Data Cable Programming Setup
Refer to the Radio Service Software User’s Guide for more information on setting up your test
computer as an RSS workstation.
NOTE: For faster codeplug reading, enable the QuickComm feature in the RSS configuration
setup.
Unit Under
Tes t
Computer
Workstation
(RSS)
Serial Port/
USB Port
Data Cable (RS232)
(NKN6560A) or
USB Data Cable
(NKN6559A)
